Brady 1024 User Manual

Page 37

Maintenance

3.4

Printhead Replacement

Removal:

1. Turn OFF the Printer

and unplug it from the
AC outlet. Open the
Top Cover.

2. Unlatch the Printhead

Assembly, loosen the
Printhead Screw until
the Printhead is free.

3. Carefully disconnect the

Printhead Cable from
the back of the
Printhead.

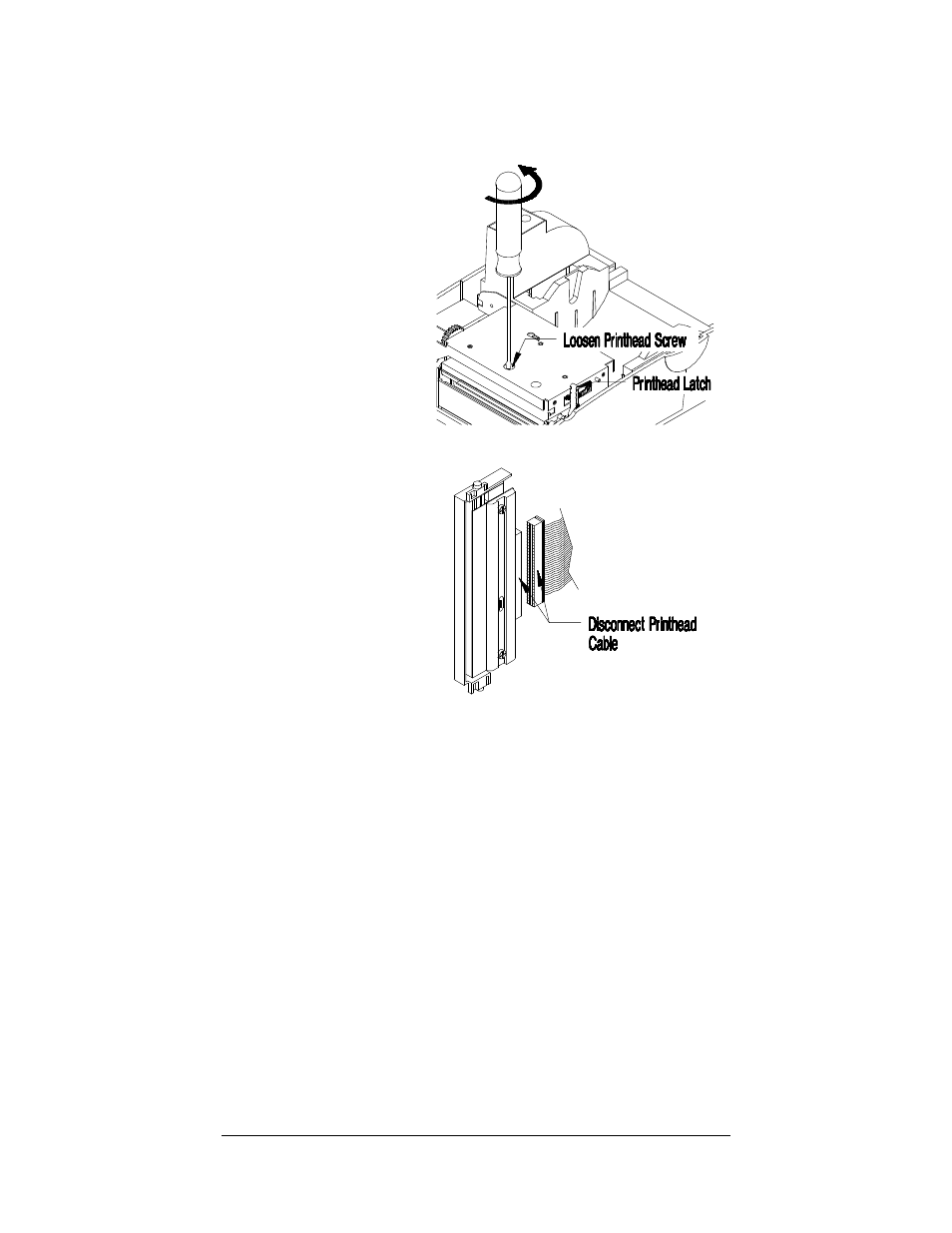

Figure 3-4 Printhead Replacement

Replacement:

1. Connect the Printhead Cable to the new Printhead.

2. Position the Printhead on the Printhead Assembly, (using guide pins),

and tighten the Printhead Screw.

3. Ensure that the Printhead Cable is not pinched and that the Printhead

is clean.
