Rear view – Barco Coronis Fusion 10MP User Manual
Page 10
10
Coronis Fusion 10MP

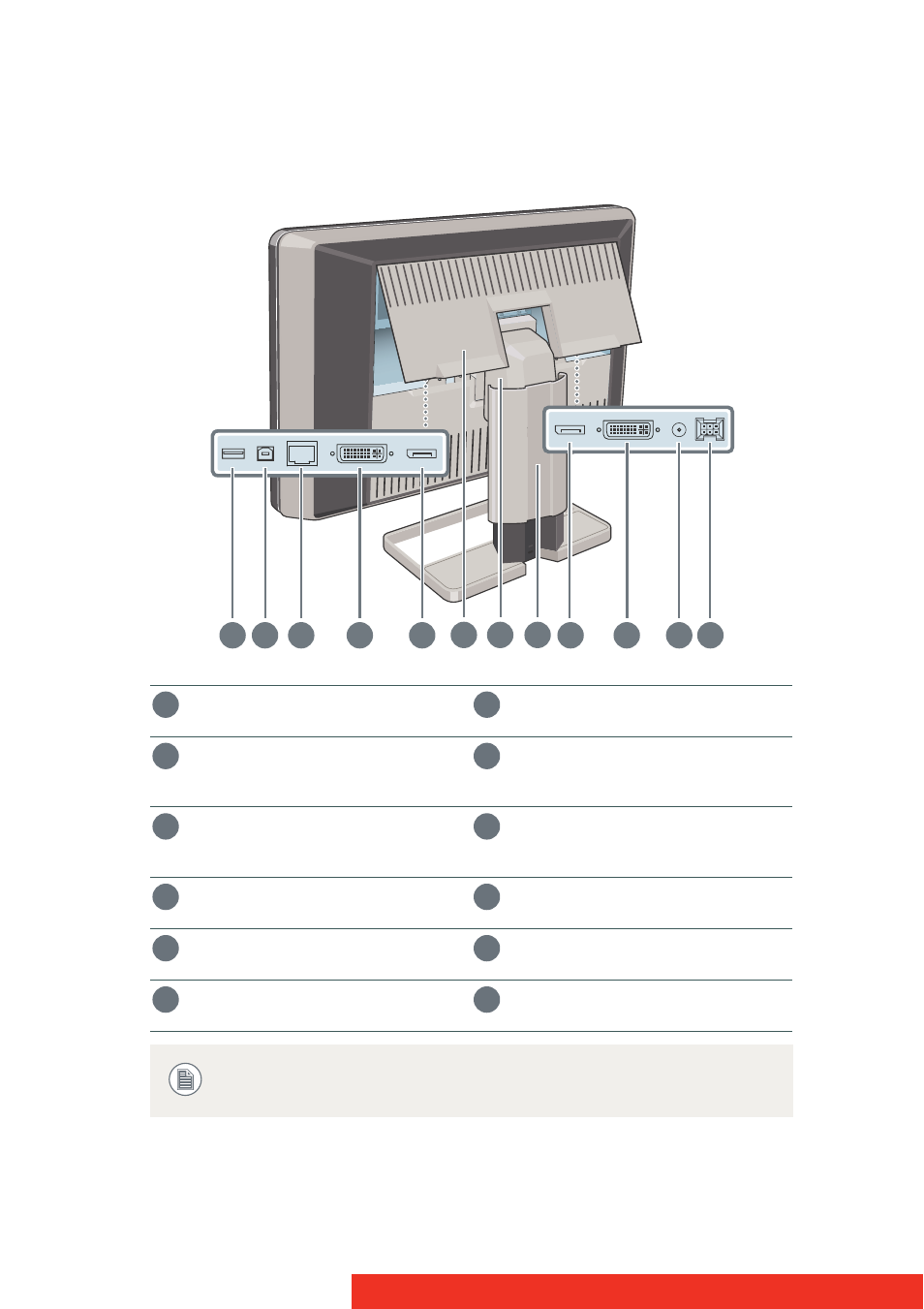

Rear view
USB downstream connector
USB upstream connector
Ethernet connector (see note
below)
DVI 1 video input
DisplayPort 1 video input
Connector compartment
cover
Neck cover
Display stand cover
DisplayPort 2 video input
DVI 2 video input
+5 VDC, 0.5 A power output
+24 VDC power input
The Ethernet connection is used for maintenance purposes and
is not supported for user application.
6
8
7
1 2 3
4
5
9
10
11 12
1
2
3
4
5
6
7
8
9
10
11
12
