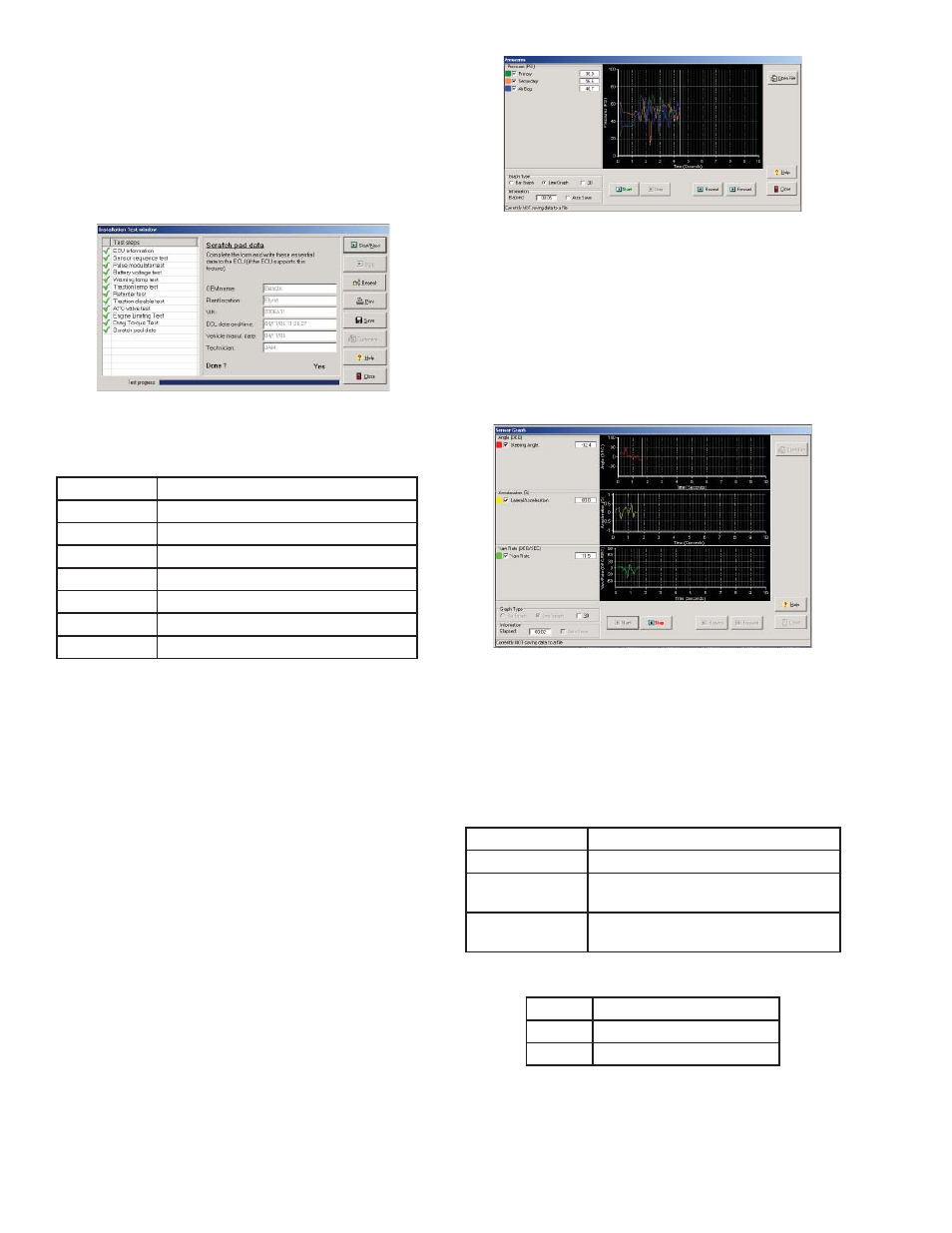

22
Scratch Pad
The tester is requested to input data into the fi elds
displayed on the screen. This data will be stored in a
fi le for use by the program. If the ABS ECU supports
scratch pad capability, a confi rmation dialog will appear
and ask the tester to proceed. Once the information
is written, a “test complete” dialog box pops up stating
“Use the Save or Print Button to Create the Report”.
Figure 81
Control Buttons
Start/Next Initiates the selected test
Stop Stops current test
Repeat Repeats current test
Print Prints test report
Save Saves test report to fi le
Customize Customizes test process
Help Launches Help system
Close Closes the confi guration screen
Pressure Sensor
This screen is available only if the ABS ECU is an
Advanced EC-60
™ ECU. The pressure sensor screen
allows the user to monitor pressure sensors. Along
with this functionality, the user has the ability to perform
data acquisition of the pressures and save the results
to a comma delimited fi le. The pressures may be
monitored both graphically and numerically.
The pressure sensor window features are similar to the
wheel speed window. You can select which pressure
or pressures to display by having the check mark next
to pressure name. You can select graph type. The
information provides the amount of time data acquisition
has been active. The buttons and their functionality are
also the same as on the wheel speed screen.
Figure 82
Stability Sensor
This screen is available only if the ABS ECU is an
Advanced EC-60
™ ECU. The stability sensor screen
allows the user to monitor stability sensors. Along with
this functionality, the user has the ability to perform
data acquisition of the stability sensors and save the
results to a comma delimited fi le. The pressures may
be monitored both graphically and numerically.
Figure 83
The stability sensor window has features and operates
similar to the wheel speed window. You can select
which sensors to display what type of graph, save data,
and etc. The control buttons operate the same as on
the wheel speed window.
Data Acquisition Control Buttons
Start Begins data logging
Stop Ends data logging session
Rewind Allows user to move backwards in
time through the data
Forward Allows user to move forward in time
through the data
Control Buttons
Open Opens saved data
Close Closes screen
Help Launches Help System
Scratch Pad
Not all ABS ECUs supported by ACom ™ diagnostics
have the scratch pad. Typically the trailer ABS ECUs
have a scratch pad. Scratch pad enables the reading
