21

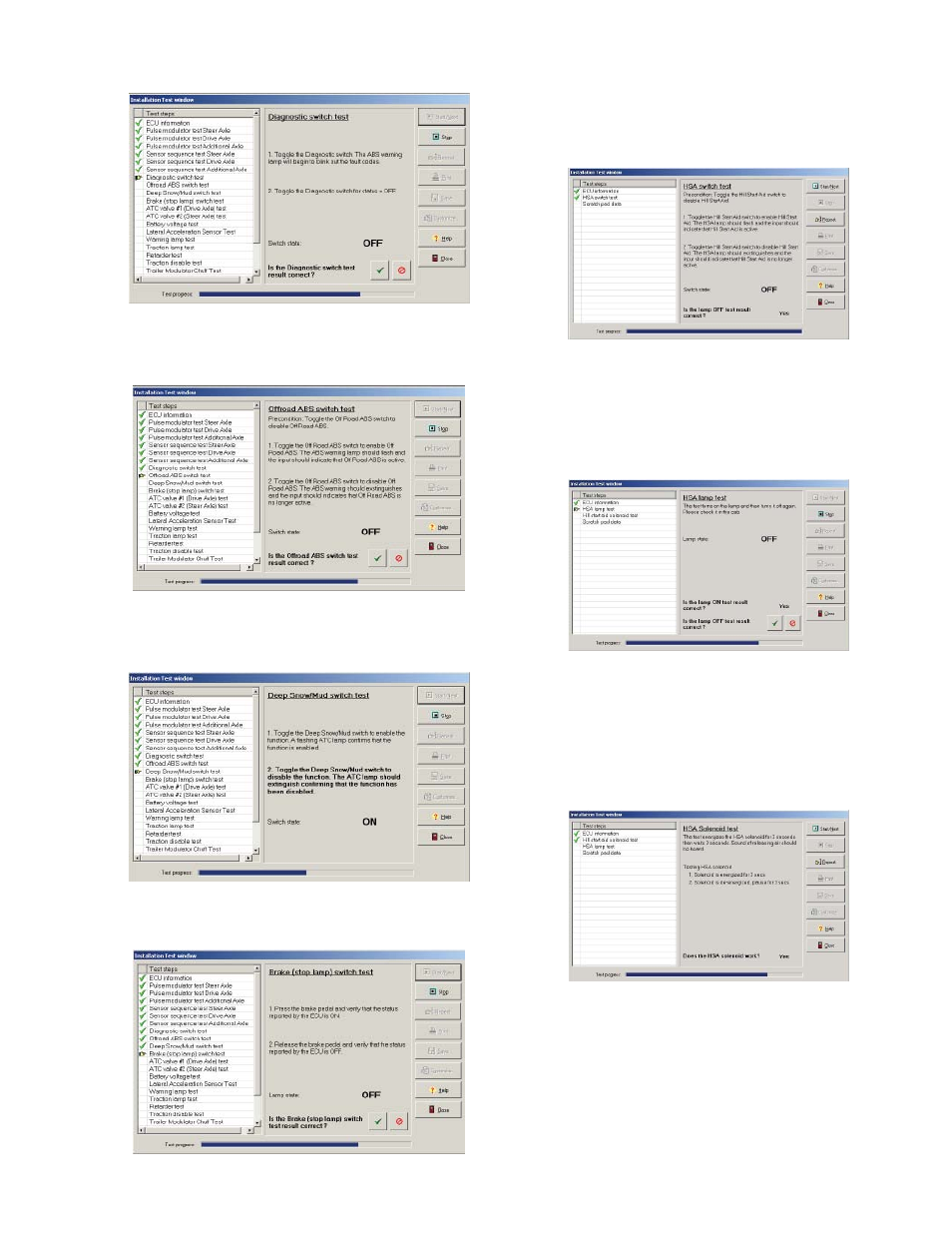

Diagnostic Switch
Figure 74
Off Road Switch
Figure 75
Deep Mud / Snow Switch
Figure 76
Stop (Brake) Lamp Switch
Figure 77
Hill Start Aid Switch – If Hill Start Aid is enabled
(EC-60
™ ECU Only).
The HSA switch test allow user to verify that the switch
is operating correctly by toggling the switch verifying
the status of the HSA lamp.
Figure 78
Hill Start Aid Lamp – If Hill Start Aid is enabled
(EC-60
™ ECU Only).
The test will illuminate and extinguish the HSA lamp,
asking the user to verify status of HSA lamp.
Figure 79
Hill Start Aid Solenoid – If Hill Start Aid is enabled
(EC-60
™ ECU Only).
The test will energize and de-energize the HSA solenoid
asking the user to verify if exhausts of air is heard.
Figure 80
