36
B. If using the SmarTire ™ LF Tool:
 Turn the SmarTire ™ LF Tool ON by pressing and holding the On/Off/Mode Select
button for 2 seconds.
 Press the On/Off/Mode Select button once more to toggle the tool mode to the
Learn sensor function. The LED under the head with the question mark must
now be ON.
 Point the SmarTire ™
LF Tool towards the tire’s sidewall adjacent to sensor’s
location approximately 2" away from the tire’s surface. The sensor should be
located at the valve stem with a rim label indicating its location. Do not touch the
edge of the rim with the tool.
 Press and release the Initiate/Learn button once & hold the LF Initiator tool in
position for 5 seconds until 4 rapid beeps are heard. Do not hold down the
Initiate/Learn button.
C. If using the SmarTire
™
Maintenance Tool:
 Turn the SmarTire ™
Maintenance Tool ‘ON’ (Press and release the red button).
Button functionality:
o Left Button: Initiate Function
o Center Button: Setup Menu
o Right Button: Learn Function
 Hold the SmarTire ™
Maintenance Tool pointed towards the tire’s sidewall
adjacent to sensor’s location approximately 2" away from the tire’s surface. The
sensor should be located at the valve stem with a rim label indicating its location.
Do not touch the side of the tire or the edge of the rim.
 Press right button (learn function) once & hold tool in position until the screen is
updated. Do not continue to press the button.

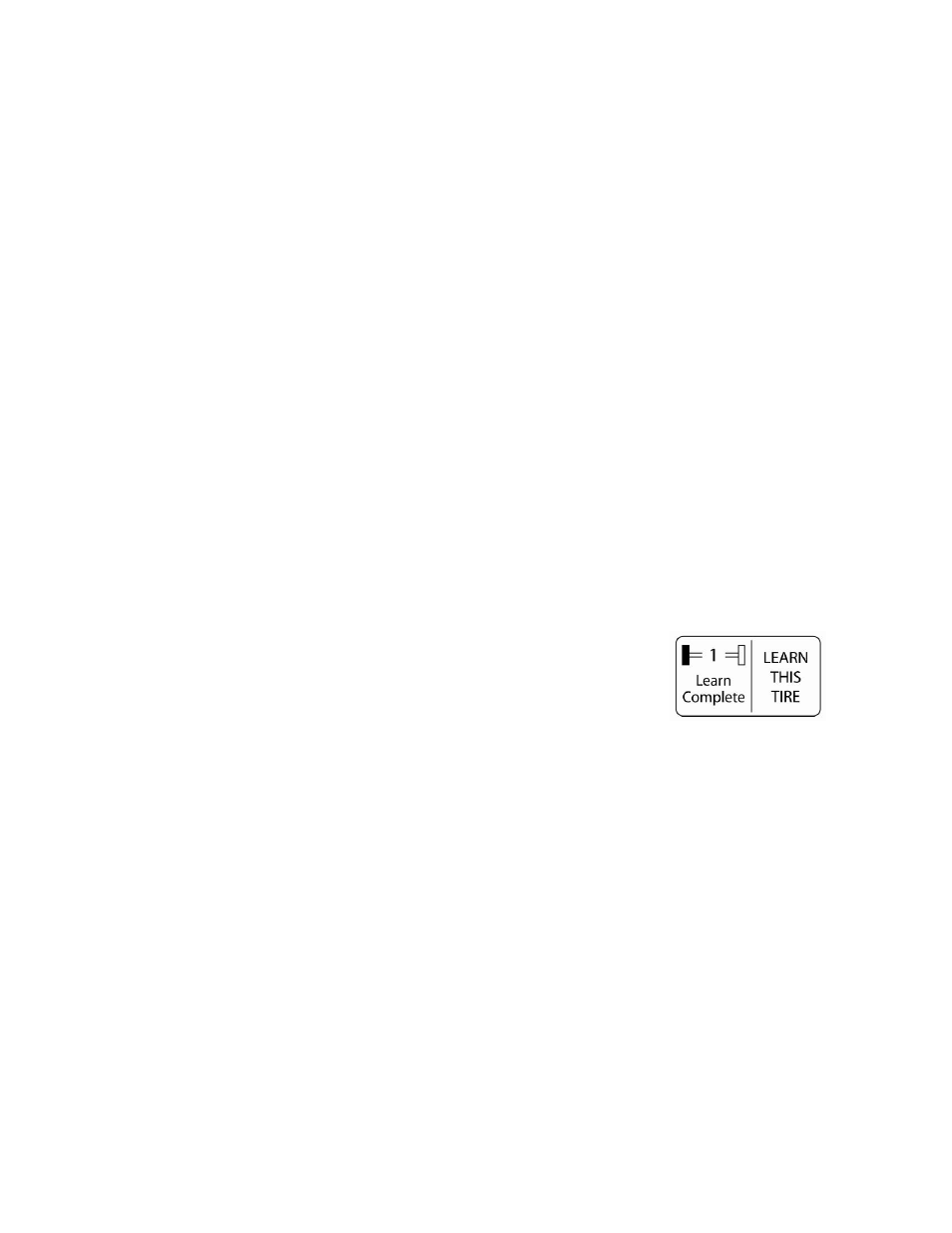

6. When completed correctly, the screen will show “Learn Complete”.
Repeat steps 3 – 5 until all wheel positions are programmed. If the
screen shows:
 Learn Time Out: A Learn transmission was not provoked
fast enough and the system timed out. Repeat the Learn
process.
 Duplicate Sensor ID: The sensor ID that was programmed to the wheel position
is also programmed to another wheel position.
7. When all wheel positions are correctly programmed, press the center button once to save
the changes and exit the “Learn” function. Press the center button again to exit Setup
Mode.
