IMPORTANT
READ THESE INSTRUCTIONS PRIOR TO INSTALLATION
This SmarTire
™
kit is pre-programmed and ready to use, subject to your application:
 Sensors have been PRE-ASSIGNED TO WHEEL POSITIONS and are identified on each

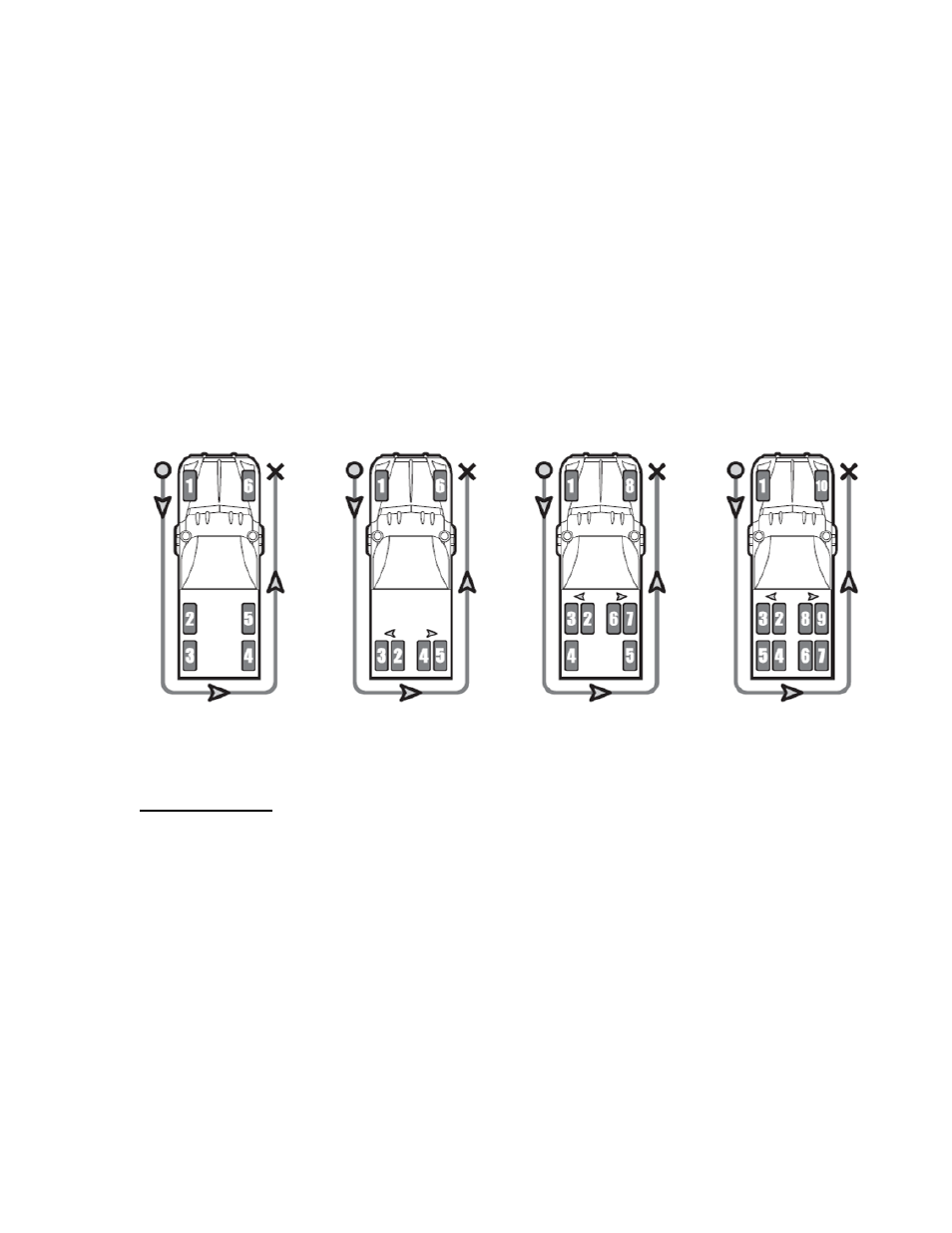

unit with a position label (P1, P2, P3, etc.) – install the sensors as per the diagram below.
 Default values have been assigned to each axle for the following:
o Cold Inflation Pressure (CIP) – 100 PSI
o First Alert Level (FAL) – set to a deviation of ±15% from CIP
o Second Alert Level (SAL) – set to -20% from CIP
o High temperature alert (optional) – ITEC specific kits set to OFF, all other kits
set to 85°C
Installation steps:
1. Install the receiver, display, antenna and harnesses on the vehicle, following the
instructions in “Section D – Installation Electrical” section of the SmarTire
™
manual.
2. Install the sensors in the pre-programmed locations as above, following the instructions in
“Section E – Installation Tire Sensors” section of the SmarTire
™
manual.
3. Adjust any system parameters as required, following “Section B – System
Programming” section of the SmarTire
™
manual.
