TP10476-1 PAGE 38
SETTING OF FOLD PLATES
Be sure that the adjustment screw (18-2) is in contact
with the support rail on both sides.
Clamp the fold plates with the clamping levers (18-3).
The sheet-stop (18-4) should be moved to the desired
fold length according to the scale (18-5) by loosening the
clamping screw (18-6) and then turning the adjustment wheel
(18-7).
The sheet stop can be set at an angle for sheets that are
not cut square by loosening the clamping screw (18-6) and
turning the front adjustment wheel. The clamping levers (18-
3) must be tightened for this adjustment.
For the fitting of a fold plate, both sides of the stop (18-
1) must have the fold plate so that the adjustment screw
contacts the support rail.
Equal adjustments at both ends are needed to prevent
oblique folds or perforations.
CAUTION:
If the buckle space is reduced, be sure that the fold plate
does not rub against the folding rollers. If this occurs, the
rollers will be damaged. Check for rubbing by manually
turning the handwheel on the folder before turning the power
on.

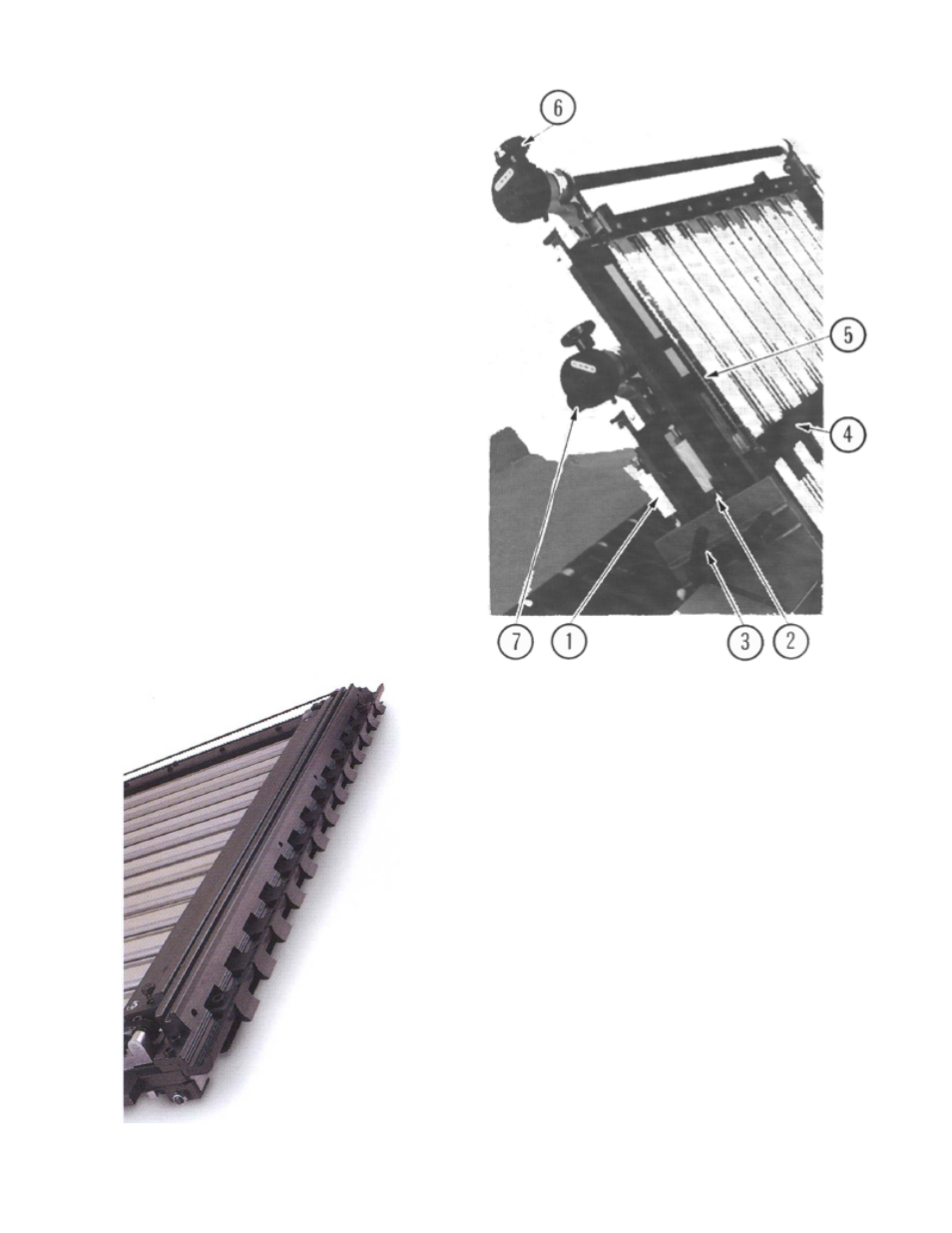

Figure 19
Figure 18
SETTING OF SHEET DEFLECTORS
Fold plates that are not required for folding can be closed
off when their combination deflectors are fully forward
(Figure 19).
