PAGE 17 TP10476-1

OPERATOR CONTROLS

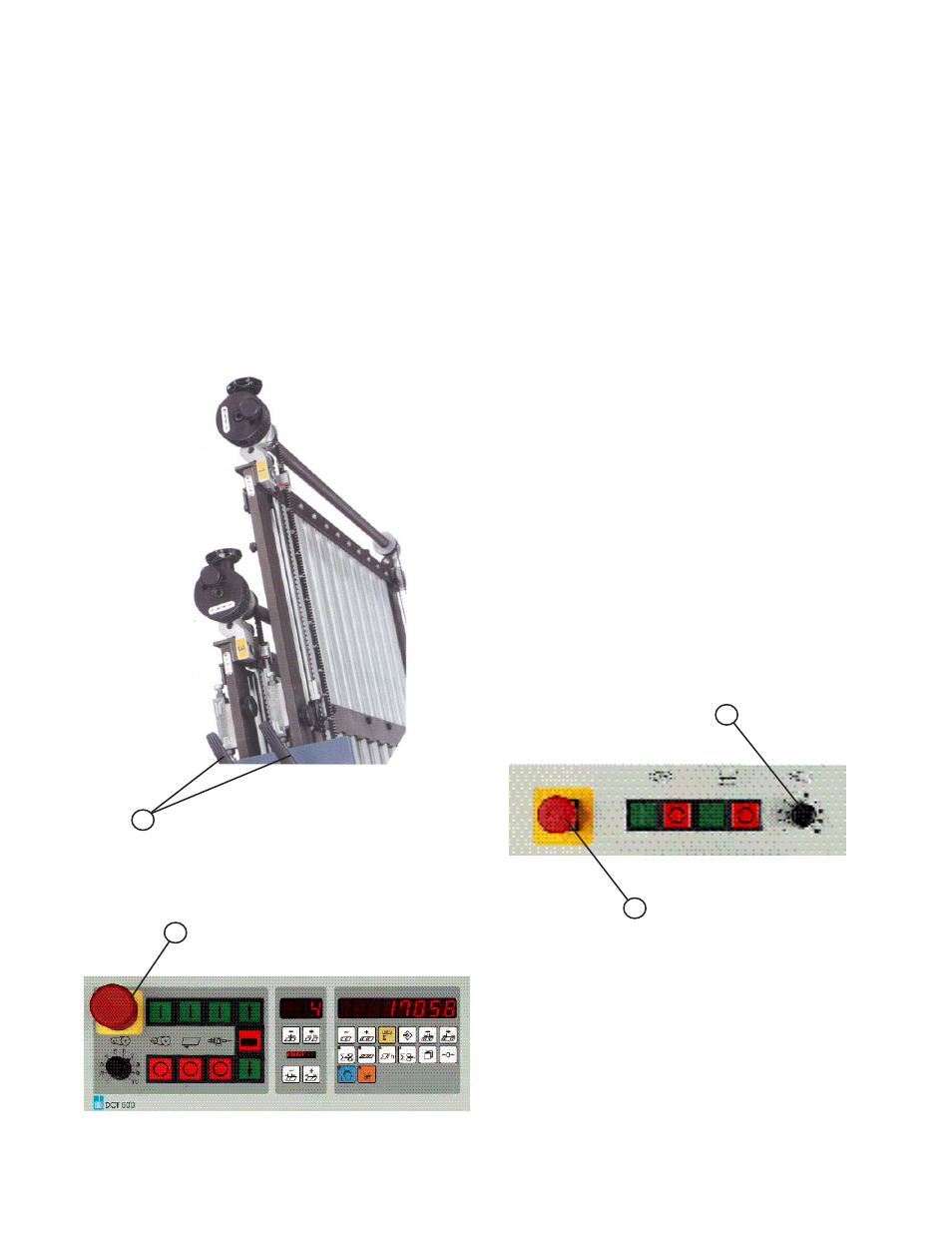

The main operator control panel (Figure 16) is located on

the right side of the register. See the "Control Panel" section
for a detailed description of all the buttons.

1.0 Setting Folding Speed

The speed of the fold rollers may be set while the folder

is running! This is done by adjusting the speed control
potentiometer located on the top left side of the main control
panel. Clockwise rotation speeds the folder up; counter-
clockwise rotation slows the folder down.

1.1 Setting Stacker Belt Speed

An infinite speed range between high and low is set by

turning the control knob (Figure 17-1).

1.2 Emergency Stop Button

When an emergency stop button (16-1 & 17-2) is

pressed, the result is:

Sheet feed - stop
Folder drive - stop

The pressure/vacuum pump continues to operate. The
emergency stop button must be pulled to release before the
machine can be restarted. An error message "Stop" will
appear on the readout.
The emergency stop buttons are found at the main
operator control panel (16-1) and the delivery control (17-2).

Figure 17

Figure 15

Figure 16

INSTALLING FOLD PLATES

Install the fold plates into the folder. Lock the fold

plates in position with the clamping levers (15-1). See "Fold
Pan" section for fold plate setting procedure.

Plug the stacker power cable into the corresponding

outlet on the main control enclosure on the continuous
feeder.

Pull the handwheel (Figure 1-11) to manually turn the

fold rollers to be sure that they are operating smoothly.
Check for any foreign material, and be sure that the deflec-
tors do not touch the fold rollers.
