TP10476-1 PAGE 18
1.DCT500 Control Panel BAN-5

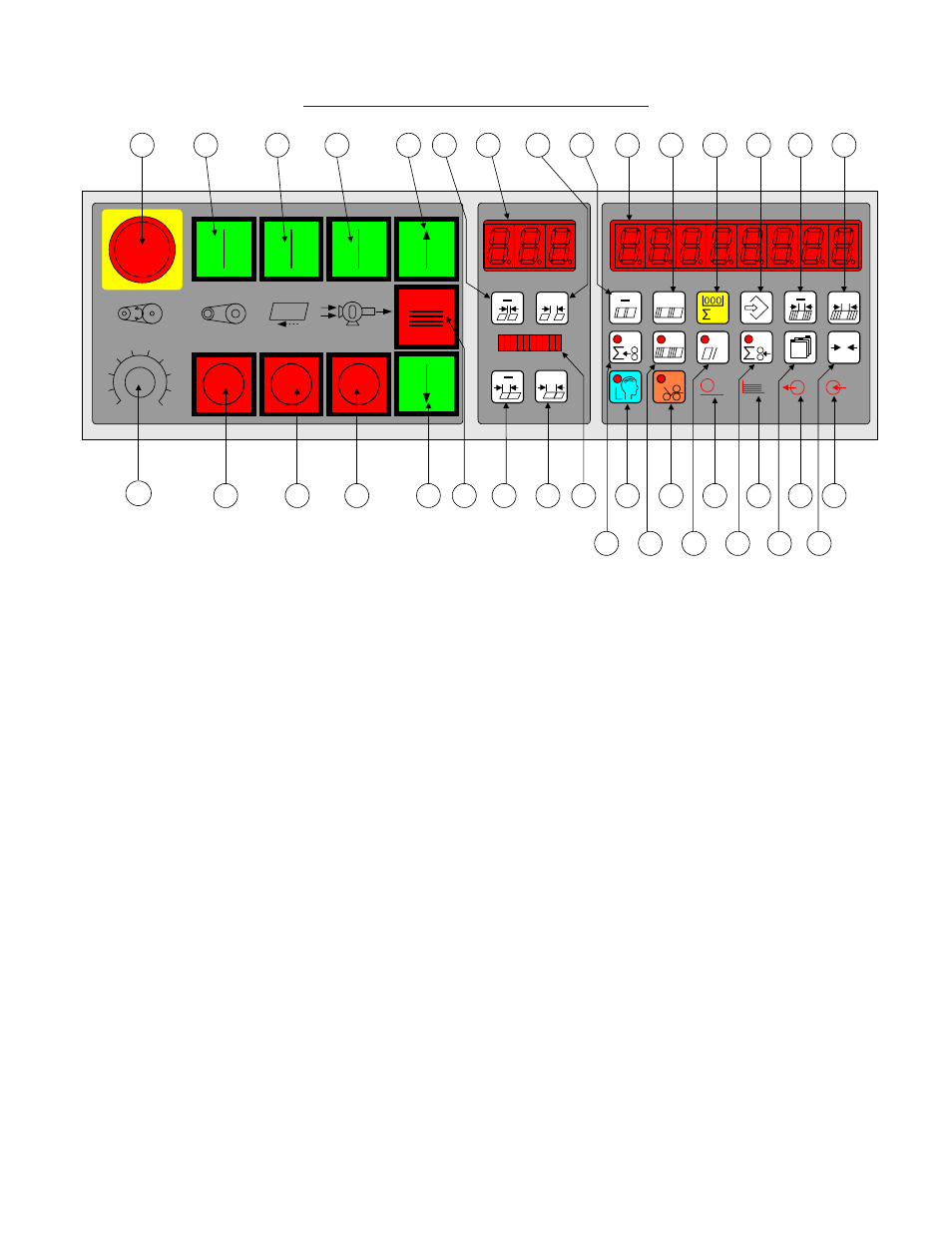

Figure 1. DCT500 Control Panel.
Displays
01) Large Display
Eight digit multi use display composed of 7-segment LED’s.
02) Small Display
Three digit multi use display composed of 7-segment LED’s.
03) Ten segment bar graph display
The suction length display is a used to display the Suction Length as a percentage of Sheet
Length. This allows a range from 5% to 50%.
Machine Status Indicators
04) Suction Indicator
The suction indicator will track the suction output. The LED will turn on when the suction
output turns on.
05) Pile indicator
The indicator is lit when the feeder is in automatic feed mode. The indicator will flash if the
feeder is in reverse mode (Continuous Feeder) or moving down (Pile feeder).
06) Input Indicator
The input indicator shows the status of a user selected photo eye.
+
h
0
+
+
+
1
2
3
4
5 6
7
8
9
10
9 13 11 16 26 27 22 23 4 5 7 6 15 3
18 19 20 21 34 35
1 29 30 31 32 33 25 28 24 2 8 12 10 14 17
