Page 14

‘IR-eye’ – cable connections

The small circular ‘IR-eye’ is

available from a Bang & Olufsen
retailer. An ‘IR-eye’ must be used
in each link room with a Power
Link setup. Use the cable supplied
with the ‘IR-eye’ and connect it as
explained here:

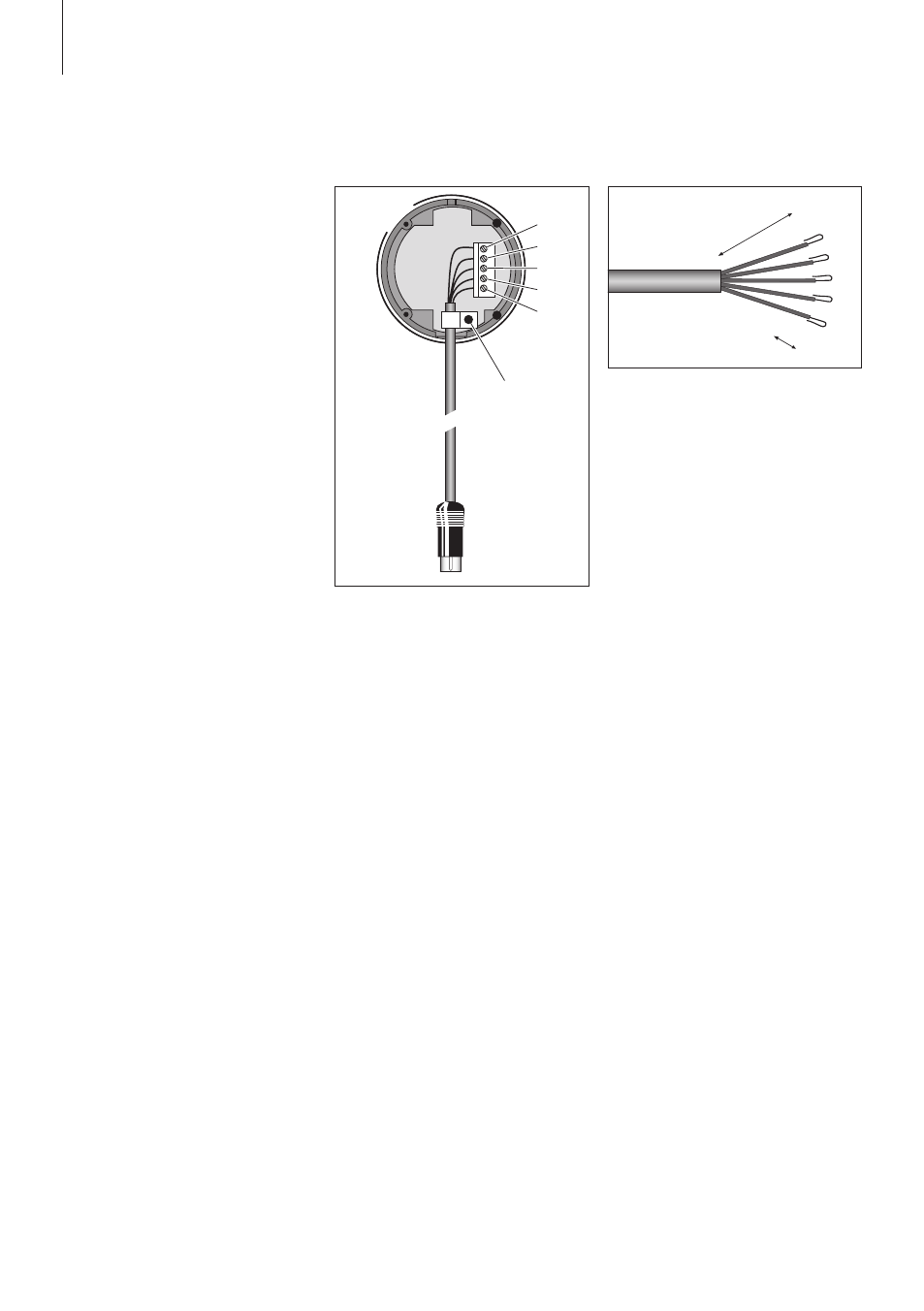

> Cut the cable to the required

length (from the receiver to the

‘IR-eye’) and strip it as shown.

> Insert the cable end through the

cable clamp (A) and connect the
leads to the terminals inside the

‘IR-eye’ in the order indicated.

Then tighten the clamp (A).

> Attach the rear cover and ﬁx the

‘IR-eye’ to the wall as explained on

the next page – and then plug the

cable into the socket marked IR
on the receiver.

Connect the leads in the cable to the

terminals inside the receiver in this

order:

1 = Yellow
2 = Grey
3 = Green
4 = White
5 = Brown

Strip the cable end. Twist the cores

in each lead and bend them back.

>> Set up BeoLink Wireless 1

35 mm –

1.5"

5 mm – 0.25"
