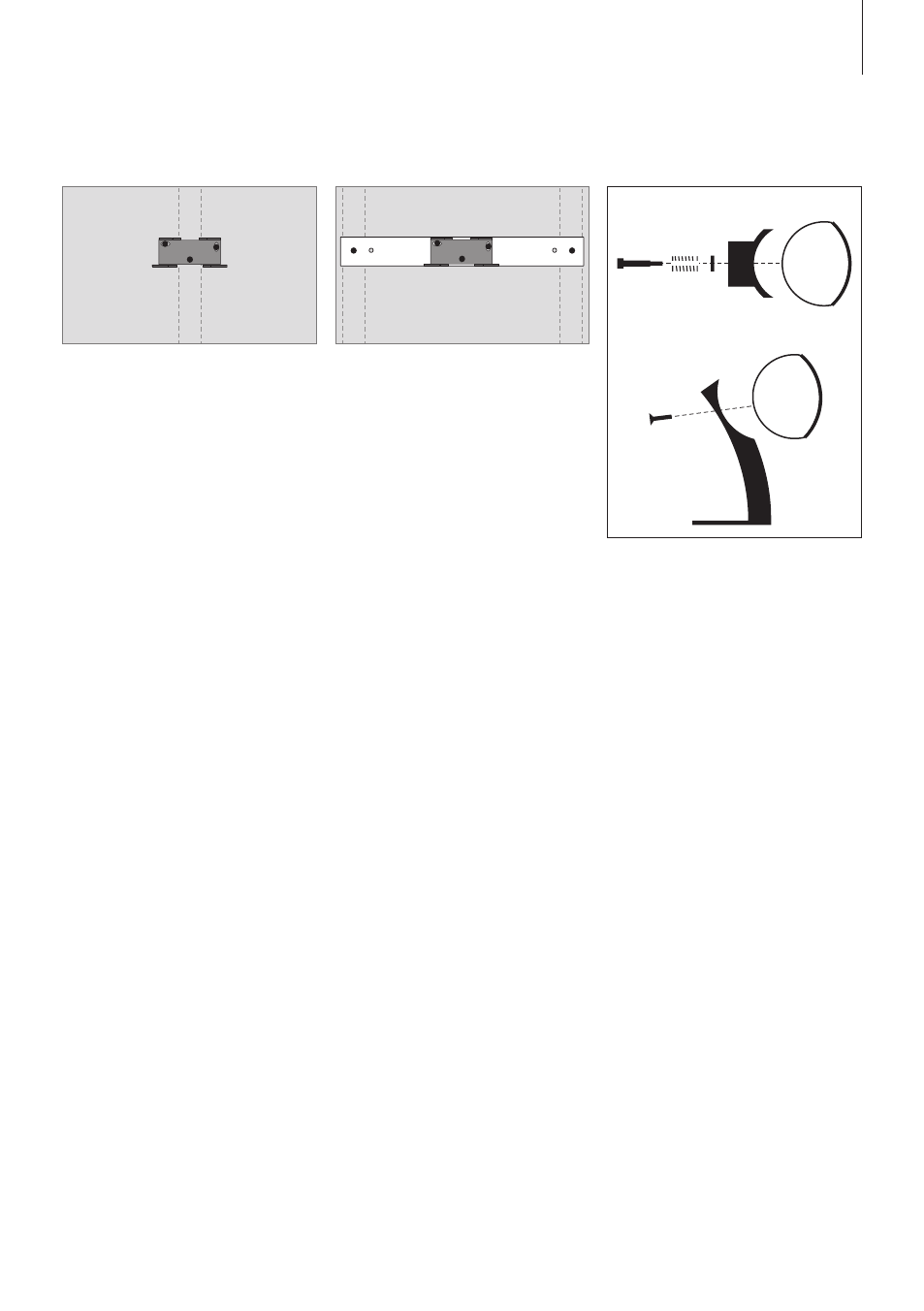

To fasten the bracket on a light

partition wall:
Light partition walls are often
constructed of gypsum panels –
known as drywall or wall board –
secured to vertical studs. Gypsum is
not a satisfactory material to support

the weight of BeoLab 3500!

If you wish to hang BeoLab 3500 on
a gypsum wall, using the standard
wall bracket, use one round-headed
lag screw (ø 4.5 mm – 0.18"), which
penetrate the gypsum and are
screwed a minimum of 25 mm (1")
into a vertical stud. Furthermore, use

two additional screws of a type

intended for gypsum walls.

If you want to place BeoLab 3500

between studs, fasten the additional
wall plate to a vertical stud in each
end, using the appropriate type of
screw. Then fasten the standard
wall bracket to the plate, using the

three screws provided.

The dimensions of the additional

wall plate is adapted specially for
use in the USA.

To fasten BeoLab 3500 on a

table stand:
Unscrew the spring loaded screws
on the rear of BeoLab 3500 in order
to detach the grey plastic wall
mount.

Attach BeoLab 3500 to the stand

using the two small screws enclosed
with the stand.

19
