5.
Technical Data:
Powering:
Batteries: 4x AA-battery (Mignon-battery, each 1.5V)
Extern power via Lemo-connector: max. 12Volt
Pin 1: Ground,
Pin 4: DC 5 –12 Volt
Via USB-connector
Connectors:
LEMO 5pin, FGG/JGG.0B.305.CLADxx(ZN)
Pin 1: Ground
Pin 2: TC in, nominal level 100 mV min., DC decoupled
Pin 3: Aaton ASCII protocol in/out
Pin 4: Tune signal @ 1.92 MHz or ext. power max. 12Volt
Pin 5: TC out, TTL level
3,5 Mini jack
Tip
= LTC-OUT 1 Volt pp
Ring
= LTC-IN
Sleeve = Ground
USB 1 and 2
Pin 1: VBUS +5 VDC
Pin 2: D- Data -
Pn 3: D+ Data +
Pin 4: NC
Pin 5: GND Ground

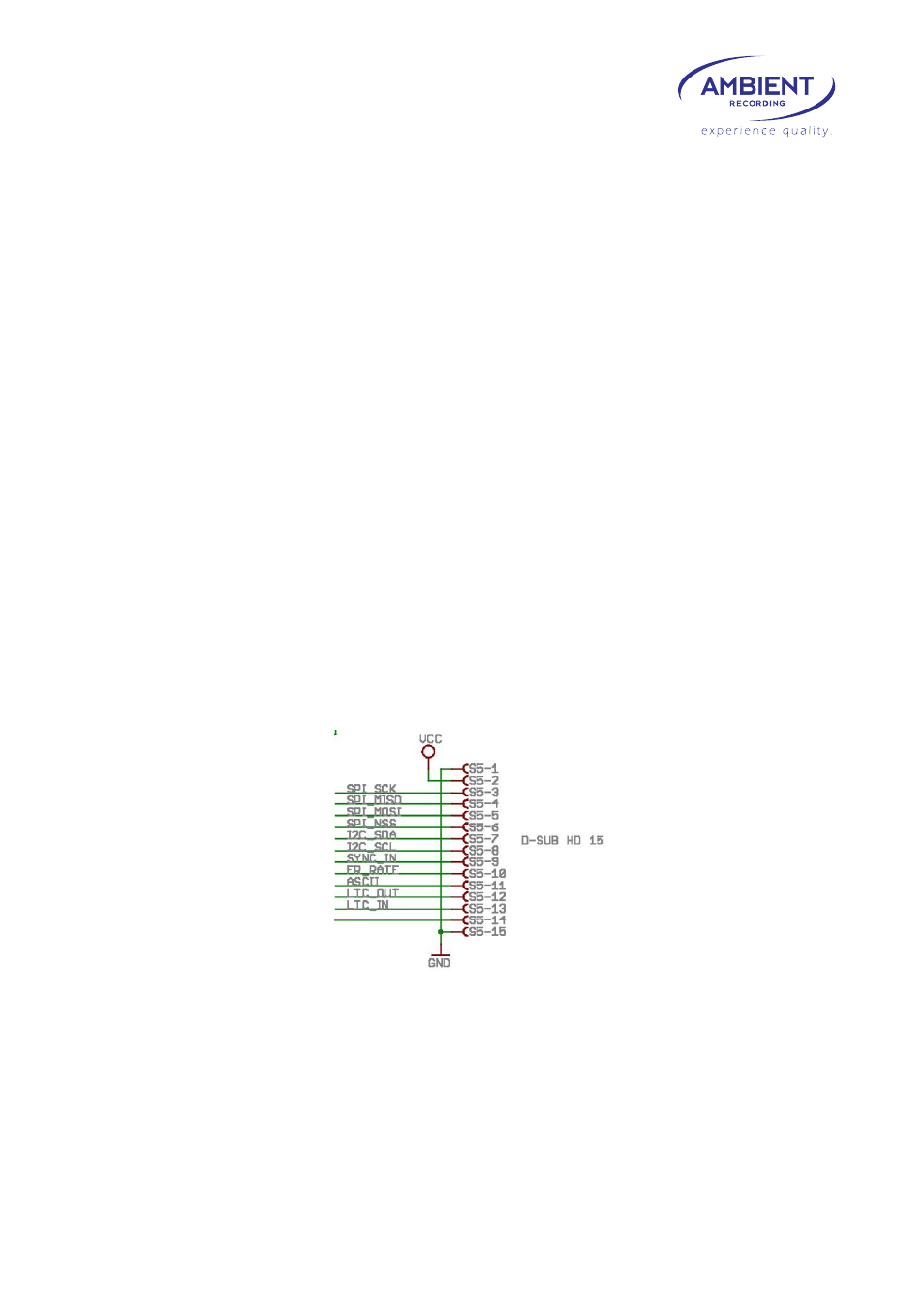

SUB-D 15 pin
Communications parameters:
Lemo socket
Infrared
Baud rate
2400
115200
Data bits
8
8
Parity
no
no
Stop bits
1
1
Dimensions (housing):
14cm x 7,6cm x 3cm
Weight:
300 grams (no batteries)
