4.3
LTC menu

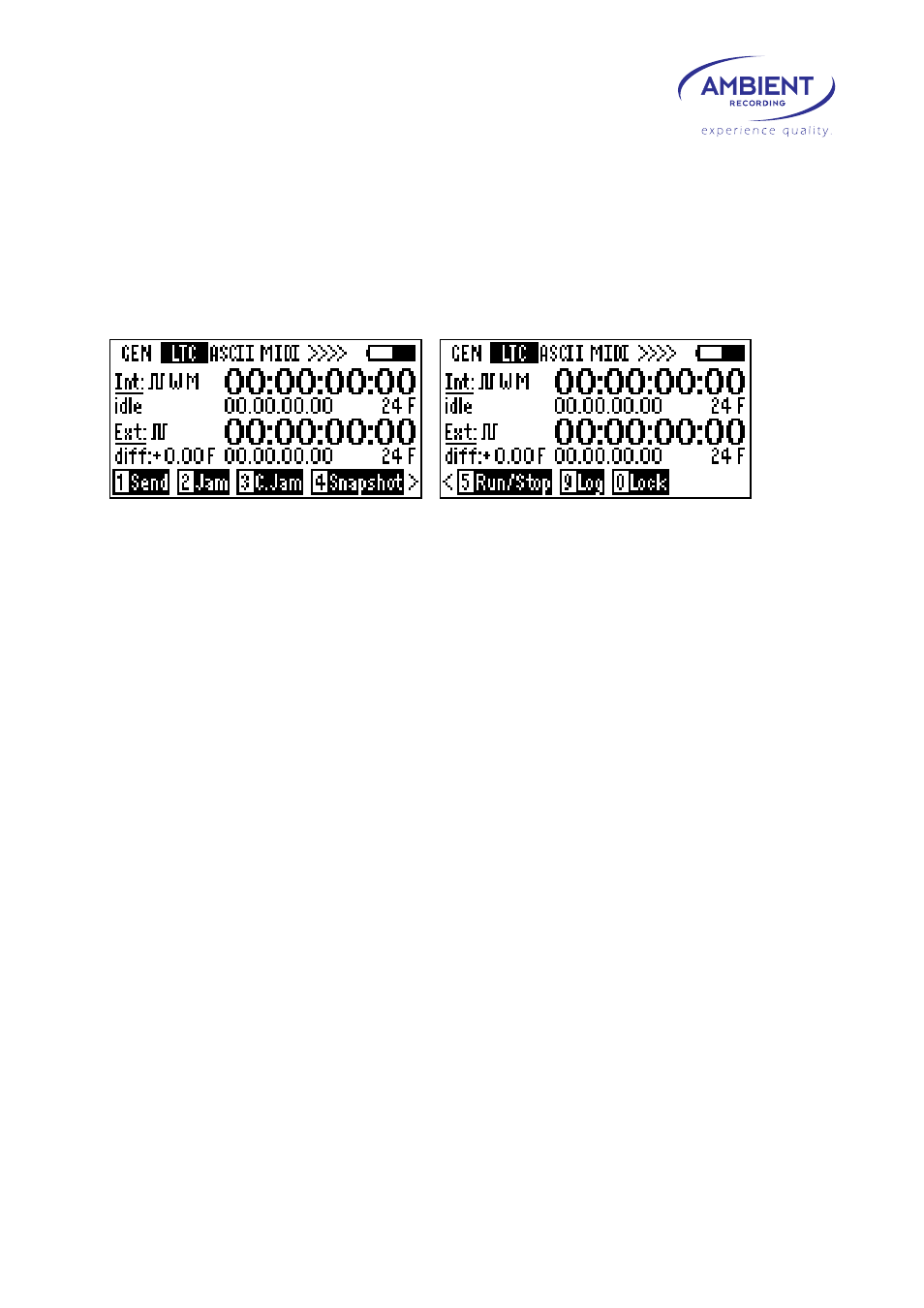

In this menu the internal and the external LTC are shown including frame rate, user bits and
time code offset in 1/100 frames.
The menus allow various actions to be taken using the internal LTC generator and the
external LTC. The EXT LTC can be present on the Lemo input, the 3.5mm mini jack or the
accessory socket.
Press 1, Send: Connects LTC to all TC out pins
A square wave icon appears next to Int. Press again to disconnect
Press 2, Jam: Jams the internal generator once to the external LTC
Select: 1: Time / 2: User bit / 3: Both
The frame rate is not changed. This allows time transfer from one frame rate to the other.
No time error when jamming between integer frame rates or between pull down frame
rates.
Incremental errors will occur if say 24 Fps external is used to jam 23.976 or 29.97 internal.
When drop frame rates are jammed to non-drop rates time code offsets will occur.
Use non-drop time code for location recording.
Press 4, Snapshot: Freezes display
Use when one needs to note TC values. Press again to release. Notre: all functions carry on.
Only the display is frozen.
Press 5, Run/Stop: Stops and runs the time code generator
This is a test mode and will stop the generator and restart it. To avoid inadvertent stopping
of the generator ENTER must be pressed to activate. This feature can be used to test other
time code equipment. When restarting the generator after stopping, Idle will be show, to
indicate that the generator is not jammed to any source.
