TruZoom v1.1 www.aja.com 21
Other System
Cabling
With the Corvid frame power still off, connect the reference, video, and audio cabling as
required for your application (
Figure 11 ).

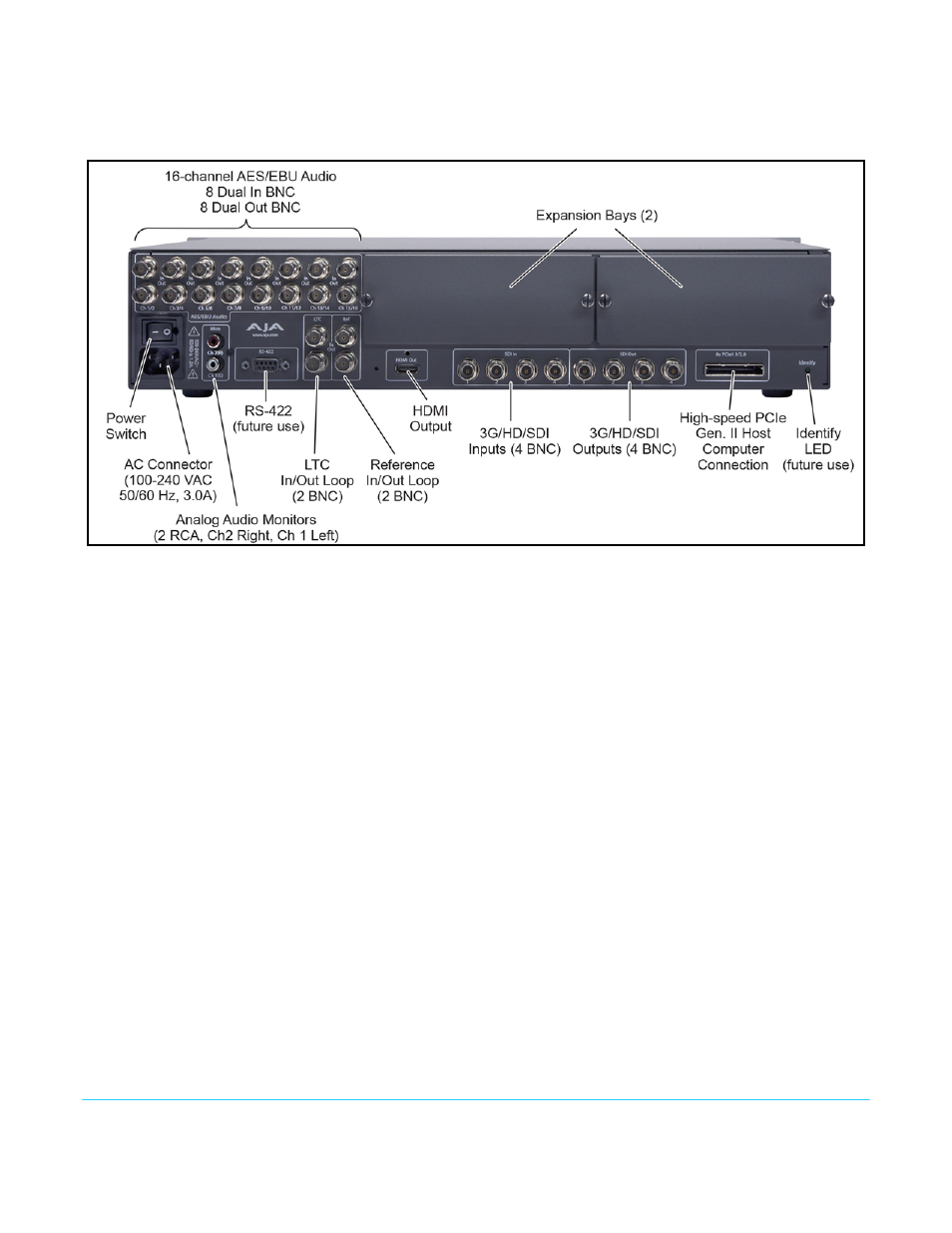

Figure 11. Corvid Ultra System Connections
Warning! The expansion bays are used for factory installed options only. Do not
remove the expansion bay covers for any reason.
Reference Signal Any reference signal should be terminated (75 Ohm) or if looped through should be
terminated at the end of the reference signal chain.
Canon RAW Input
Cabling
TruZoom can take input in RAW format from Canon C500 cameras. When the camera is
configured for 24, 25, or 29.97 fps, a single cable is connected to the Corvid Ultra frame.
When the camera is configured for 50 or 59.94 fps, then two cables are connected.
IMPORTANT: Camera connections to Corvid Ultra must be made as follows:
• Camera output 3G-SDI-1 connects to input SDI 1 on the Corvid Ultra
• Camera output 3G-SDI-2 connects to input SDI2 on the Corvid Ultra
If these cables are crossed, video frames will be recorded and play out in the wrong order.
