Chapter 1

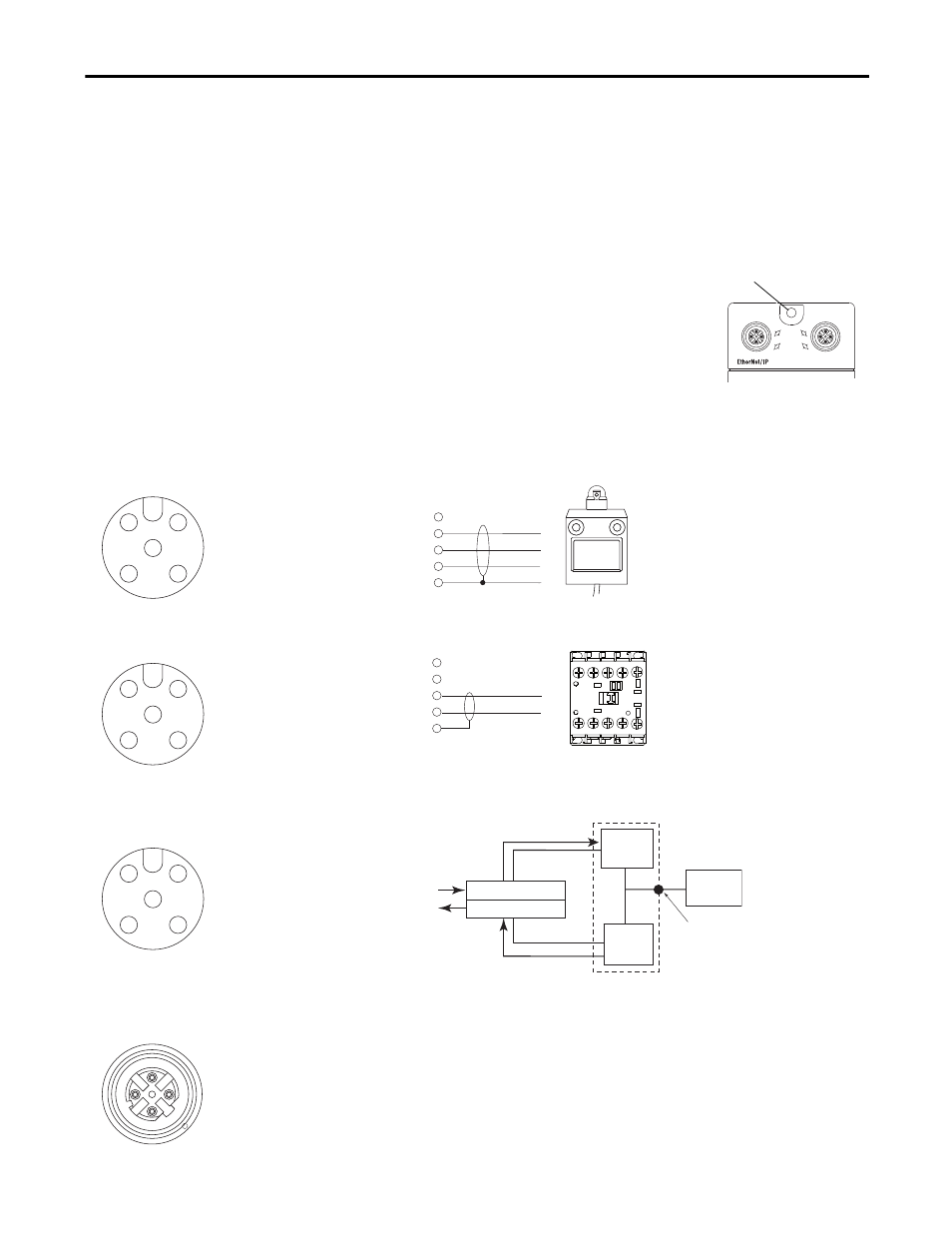

Wire the Module
Connect the I/O, network and auxiliary cables to the module. The ArmorBlock EtherNet/IP family has 5-pin micro-style
connectors. Caps are provided to cover the unused connectors on your module. Connect the quick-disconnect cord sets
you selected for your module to the appropriate ports.
Functional Earth
This screw grounds the I/O block EtherNet/IP communication circuitry that is designed
to reduce the effect of noise on the network. The circuitry requires a solid earth-ground
connection, either through a metal screw to a grounded metal panel or through a wire.
I/O Connectors
Micro-style 5-pin Input Female Connector
Micro-style 5-pin Output Female Connector
Self-configuring Connector and Circuitry
D-code Micro Network Female Connector (EtherNet/IP)
LINK 1
MOD
NET
LINK 2
Functional Earth
1
2
5
4
3
2
1
3
4
5
Common
NC
NO
Ground
802B Limit Switch
(View into connector)
Pin 1
Sensor source voltage
Pin 2
Input B
Pin 3
Return
Pin 4
Input A
Pin 5
PE
2
1
A1
A2
3
4
5
Bulletin 100-K Contactor
(View into connector)
Pin 1
Not used
Pin 2
Output B
Pin 3
Return
Pin 4
Output A
Pin 5
PE
1
2
5
4
3
(View into connector)
Pin 1
Sensor source voltage
Pin 2
Input or output B
Pin 3
Return
Pin 4
Input or output A
Pin 5
PE
Output scan list
Input scan list
to PLC
from PLC
Input (or output) is on
Turn output on
Output
circuit
Input
circuit
Connector pin
Sensor or
actuator
1
2
5
4
3
4
2
3
1
5
(View into connector)
Pin 1
M12_Tx+
Pin 2
M12_Rx+
Pin 3
M12_Tx-
Pin 4
M12_Rx-
Pin 5
Connector shell shield FE
