Kinetix VP Stainless-steel Servo Motor with 130 mm and 165 mm Frame Size 3
Rockwell Automation Publication VPS-IN002A-EN-P - April 2013

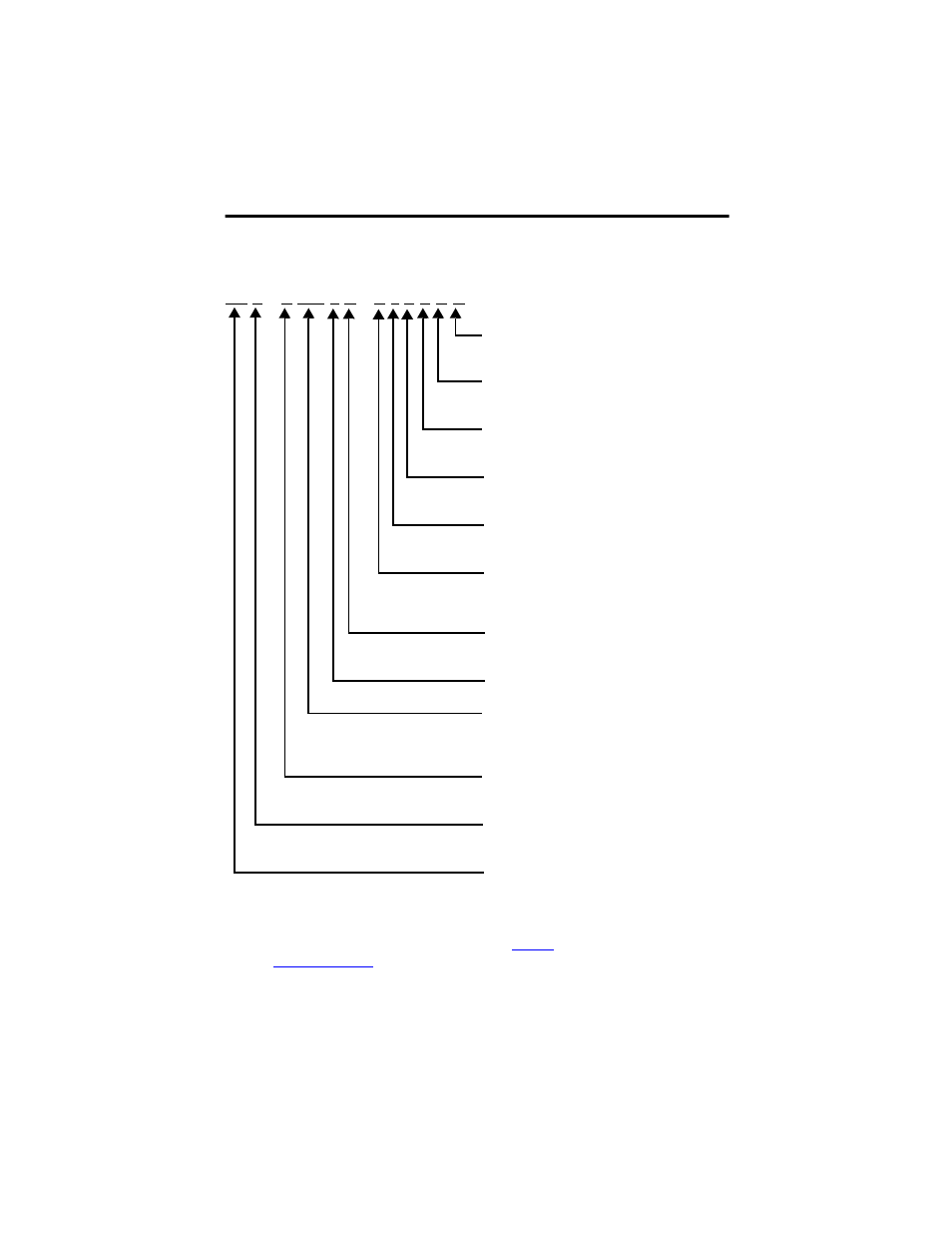

Catalog Number Explanation
V P S - B
x x x x D - P J 1 2 D F
Factory Options
F = 5 m (16.4 ft) cable
Mounting Flange
D = IEC metric, tapped mounting holes (type FT)
Brake
2 = No brake
Connector
1 = Single SpeedTec DIN connector
Enclosure/Shaft Key/Shaft Seal
J = IP66/IP67/IP69K housing/shaft key/shaft seal
Feedback
P = 18-bit absolute multi-turn (4096 revolutions) digital
encoder (Hiperface DSL protocol)
Rated Speed
(1)
(1)
Rated speed hierarchy is for comparative purposes only. Use Motion Analyzer software to size and select motors for your application, and/or the
torque/speed curves in the Kinetix 5500 Drive System Design Guide, publication
D = 3000 rpm
Magnet Stack Length (3 or 4 stacks)
(2)
(2)
Refer to
Motor Dimensions on page 11
for dimensional changes that result from the number of magnet stacks.
Frame Size – Bolt Circle Diameter (BCD)
130 = 130 mm
165 = 165 mm
Voltage Class
B = 400V AC
Series Type
S = Stainless steel
Series
VP = Permanent magnet rotary servo motors optimized to
Kinetix® 5500 drive ratings
