Rockwell Automation SP200 Input Mains Filter Model Number S20-MF1-Y014, S20-MF1-45P0, S20-MF1-49P5 - Manual (Page 2)

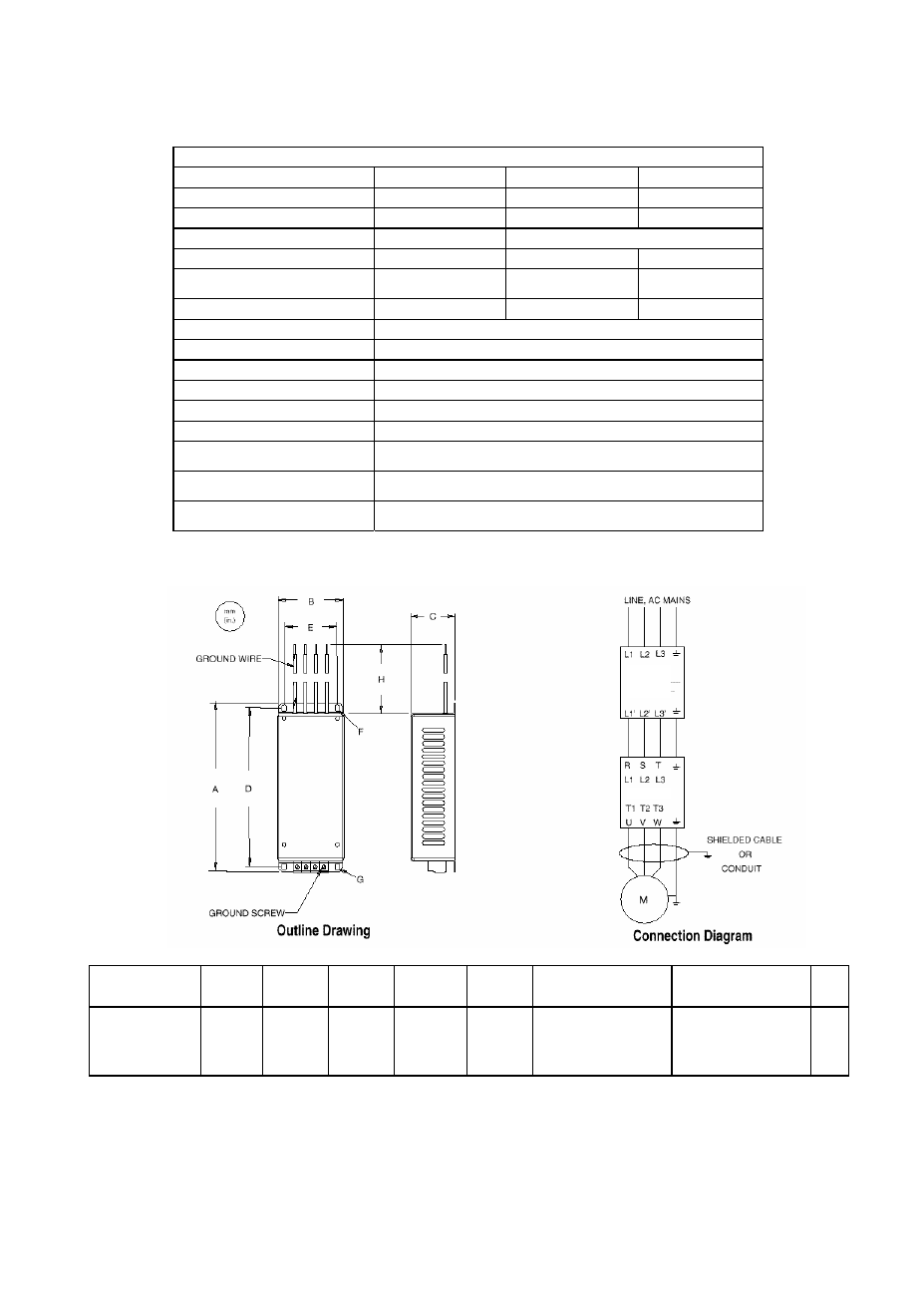

SP200 Input Mains Filter Specification Table
Mains Filter Module S20-MF1-Y014 S20-MF1-45P0 S20-MF1-49P0
Input Voltage, Frequency 1~ / 200-240V 3~ / 200-460V 3~ / 200-460V
Rated Current 14A 5A 9A
Operational Range (V), (Hz) 180-265V, 48-62Hz 180-506V, 48-62Hz
Power Dissipation (W) 10 W 5 W 8 W
Leakage Current (mA)
Acc.EN60950 Fault Method
3.5 mA 30 mA 30 mA
Weight (kg) 0.80 kg 0.48 kg 0.48 kg
Protection Class IP 20
Operating Temperature 0°C TO 50°C
Storage Temperature -25°C TO 85°C
Relative Humidity 0 TO 90% (Non.Condensed)
Vibration 1.0 G Operational - 2.5 G Non-Operational
Shock 15 G Operational - 30 G Non-Operational
Altitude 1.000 m (3.300 ft.) without derating, consult factory for derating
information
EMC Standards *) EN61800-3
EN 50081-1 (Residential and Commercial Environment)
International Standards and
Approvals
CE Low Voltage Directive
*) Tested with a maximum motor cable length of 25m. Practical results may differ.
Input Mains Filter A B C D E F G H
Module
S20-MF1-Y014 182 (7.17) 75 (2.95) 47.5 (1.87) 163 (6.42) 60 (2.36) M4.5 X 6.5
(0.18 X 0.26)
M4.5 X 6.5
(0.18 X 0.26) 200
S20-MF1-45P0 182 (7.17) 75 (2.95) 35 (1.38) 163 (6.42) 60 (2.36) Obround hole Obround hole (7.87)
S20-MF1-49P0 182 (7.17) 75 (2.95) 47.5 (1.87) 163 (6.42) 60 (2.36) (2 places) (2 places)
Printed in U.K. D2-3420 July 1998
