Chassis connector (sk1), Table 2 chassis connector (sk1) pinout, Trusted – Rockwell Automation T8312 Trusted Expander Interface Adaptor Unit User Manual

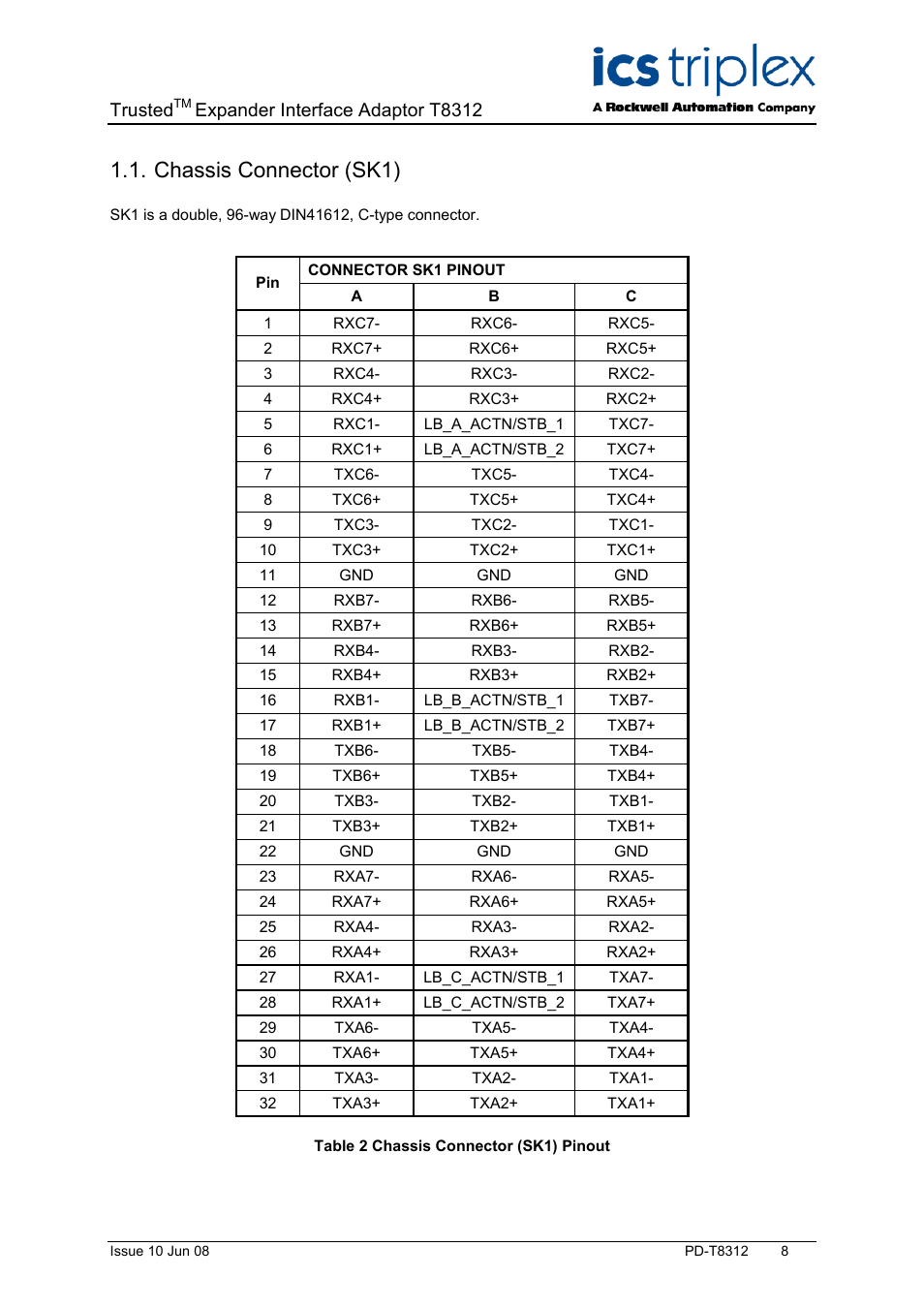

Page 8: Expander interface adaptor t8312
