MP-Series Low-inertia Brushless Servo Motors with 75 mm or Smaller Frame Sizes 15
Rockwell Automation Publication MP-IN006C-EN-P - January 2014
Tolerances and Supplemental Dimensions
Motor Load Force Ratings
Motors are capable of operating with a sustained shaft load. The location of the radial and axial
load force is shown in the figure, and maximum values are listed.
Loads are measured in pounds, kilograms are mathematical conversions.

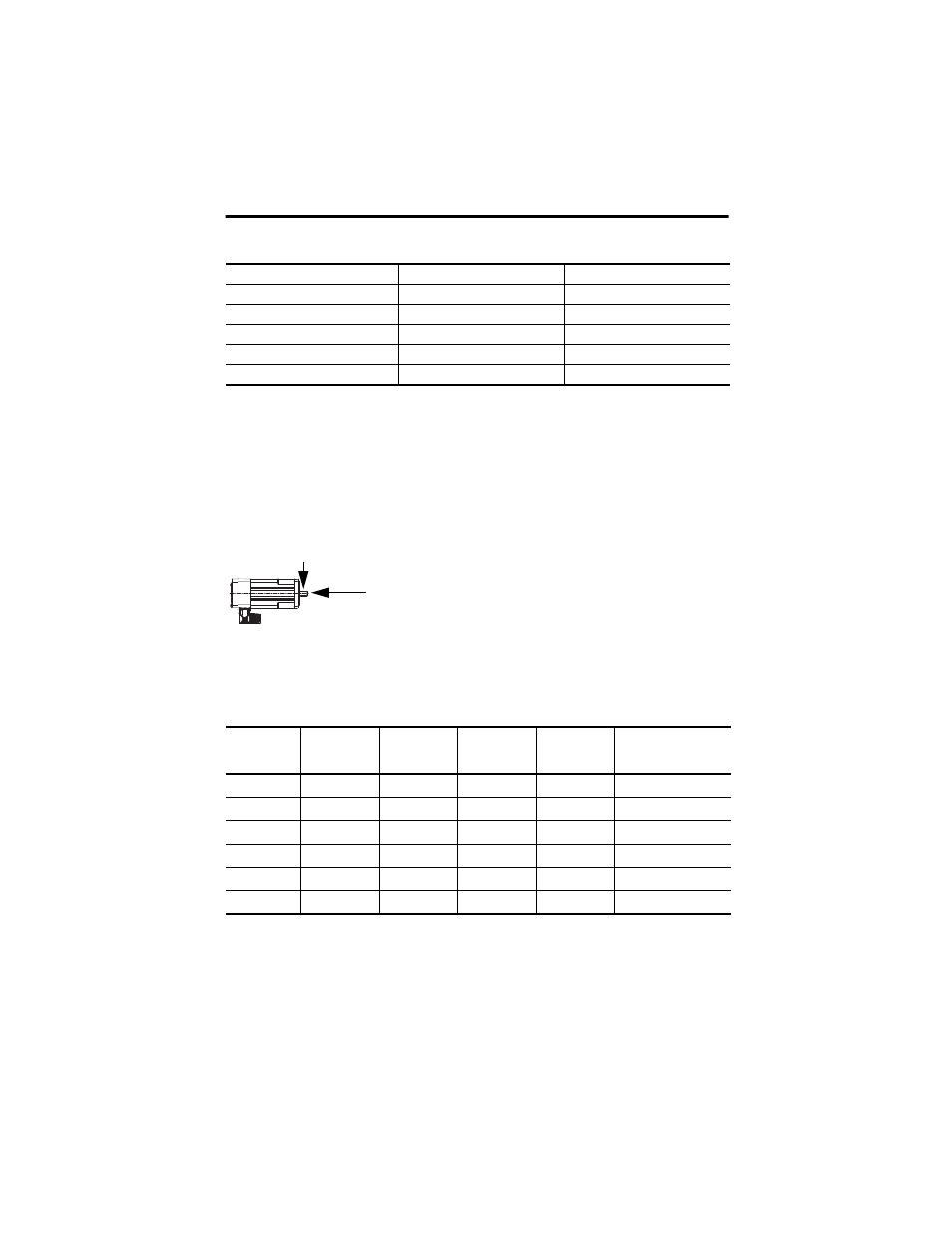

Load Forces on Shaft
The following tables represent 20,000 hour L
10
bearing fatigue life at various loads and speeds.
This 20,000 hour life does not account for possible application-specific life reduction that can
occur due to bearing grease contamination from external sources.
Shaft, Pilot, and Keyway Tolerances
MPL-A/B15
xx
MPL-A/B2
xx
Shaft Runout (T.I.R.)
0.030 (0.0012)
0.035 (0.0014)
Pilot Eccentricity (T.I.R.)
0.08 (0.0031)
0.08 (0.0031)
Max Face Runout (T.I.R.)
0.08 (0.0031)
0.08 (0.0031)
Keyway Depth (G)
7.10…7.20 (0.280…0.283)
8.40…8.50 (0.331…0.335)
Keyway Width (F)
2.971…2.996 (0.117…0.118)
3.97…4.00 (0.156…0.157)
Radial Load Force Ratings
Motor Cat. No.
1000 rpm
2000 rpm
3500 rpm
4000 rpm
at Max Speed
kg
(lb)
kg
(lb)
kg
(lb)
kg
(lb)
kg
(lb)
rpm
MPL-A/B1510 24
(52)
19
(41)
—
—
15
(33)
12
(26)
8000
MPL-A/B1520 25
(56)
20
(45)
—
—
16
(36)
14
(30)
7000
MPL-A/B1530 28
(62)
22
(49)
—
—
18
(39)
15
(32)
7000
MPL-A/B210 24
(52)
19
(41)
—
—
15
(32)
12
(26)
8000
MPL-A/B220 27
(59)
21
(47)
18
(39)
—
—
15
(33)
6000
MPL-A/B230 29
(64)
23
(51)
19
(42)
—
—
17
(37)
5000
Axial Load Force
Radial Load Force - Applied at center of shaft extension.
