Thermocouple Input Assembly (T3431)
1 6
Industrial Control Services

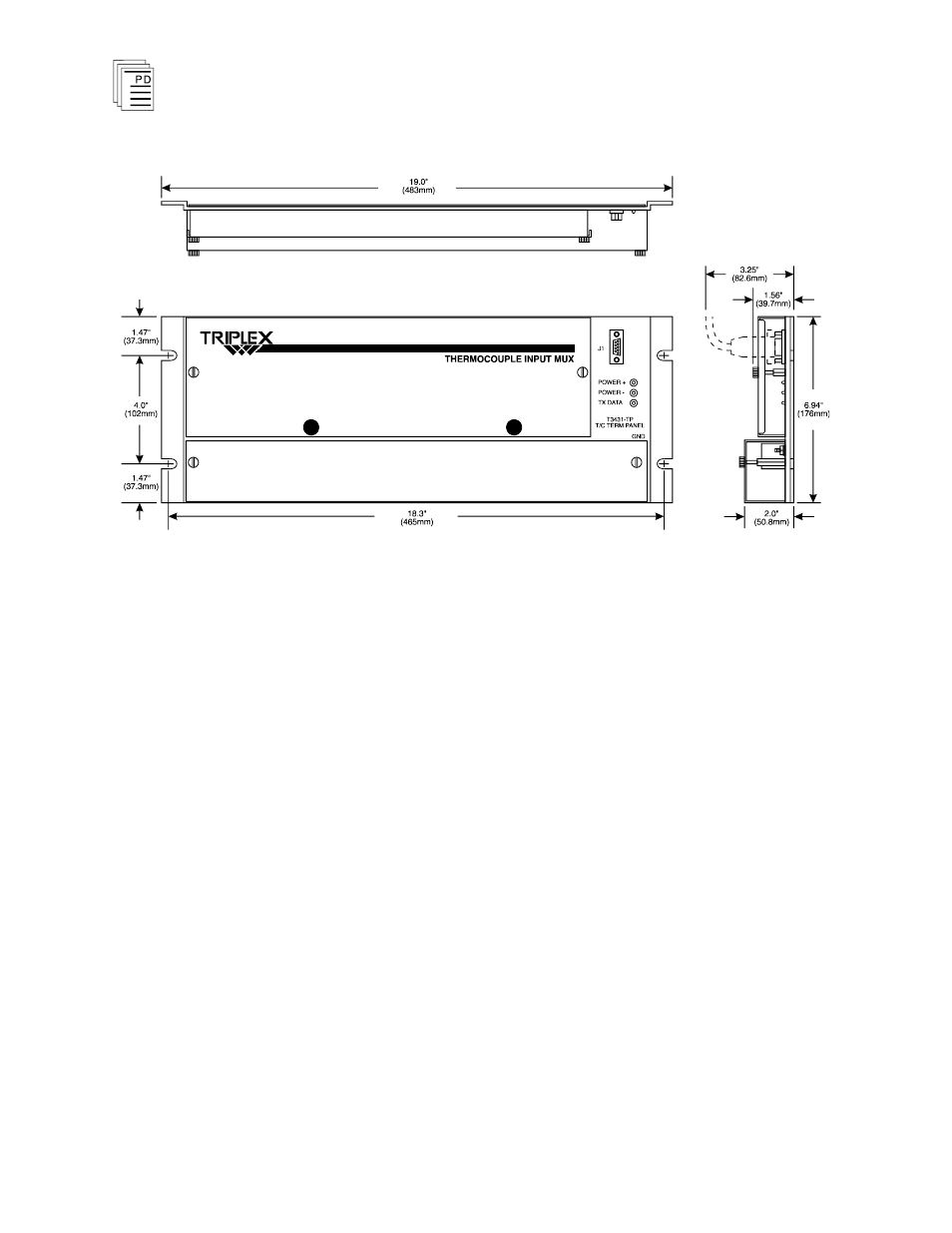

Figure 8. Mounting Dimensions for the Termination Panel.
Termination Panel Cable
The termination panel cable connects the input module to the
termination panel. It carries power to the panel and routes
serial data to the input module. One end of the cable has a
male DB-9 nine-pin connector that plugs into the termination
panel. The opposite end should be cut to the desired length
and wired to the I/O chassis terminal block immediately above
the input module. Do not connect the shield wire at this end.
The six wires in the cable are connected to the I/O slot
terminals as shown in Figure 9.
