4. OPERATION
4.1. Front Panel
Located at the top and bottom of each module is an ejector lever that is used to remove the module
from the chassis. Limit switches detect the open/closed position of the ejector levers. The ejector
levers are normally latched closed when the module is firmly seated into the Controller or Expander
Chassis.
T
84
32
T
ru
st
ed
D
u
al
24
V
d
c
A
n
al
o
g
u
e
In
p
u
t
Module
Latch
Module
Latch
Module
Status
Indicators

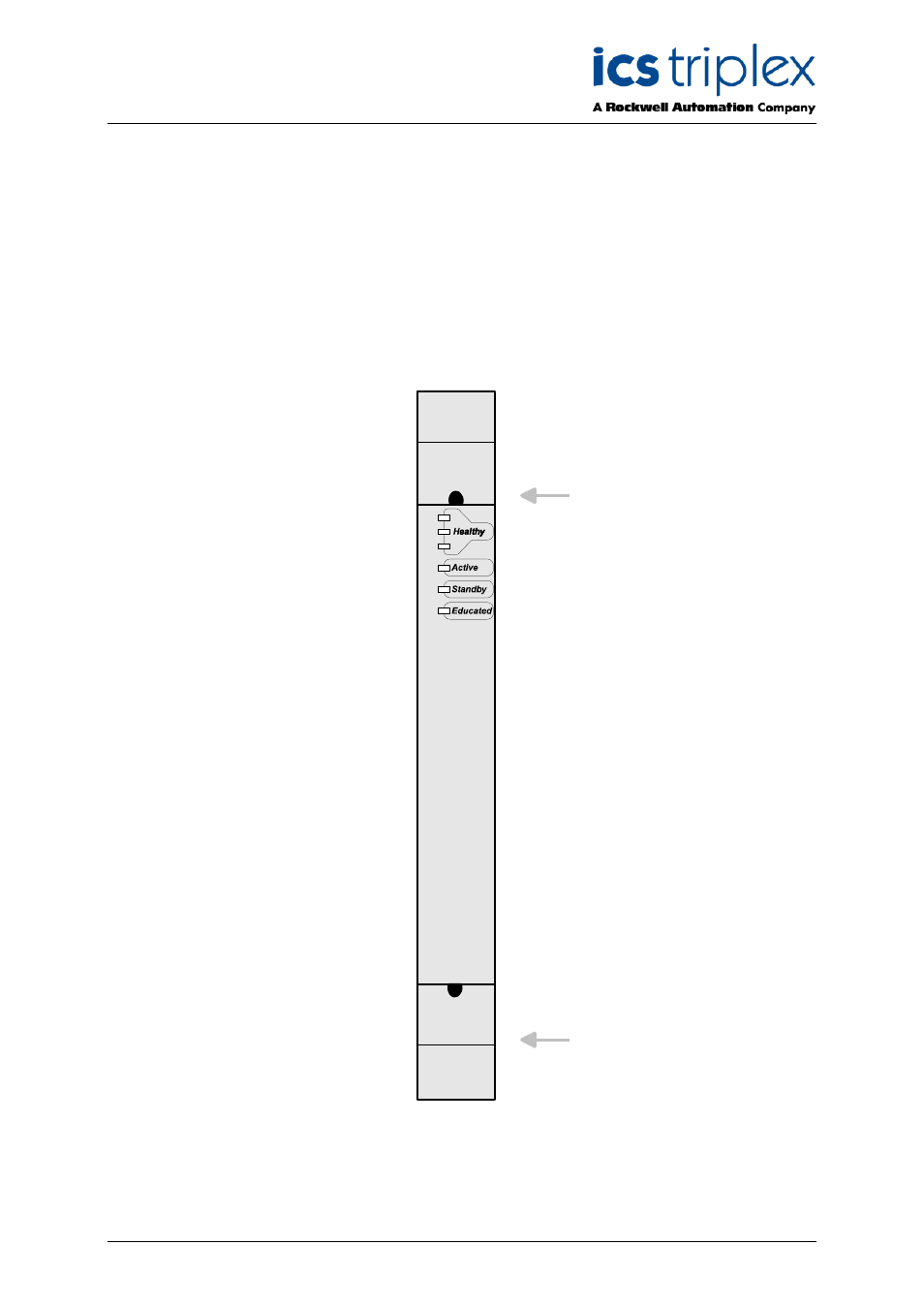

Figure 4 Module Front Panel
