Trustedtm module polarisation/keying, Trusted, Module polarisation/keying – Rockwell Automation T8432 Trusted Dual Vdc Analogue Input Module - 60 Channel User Manual

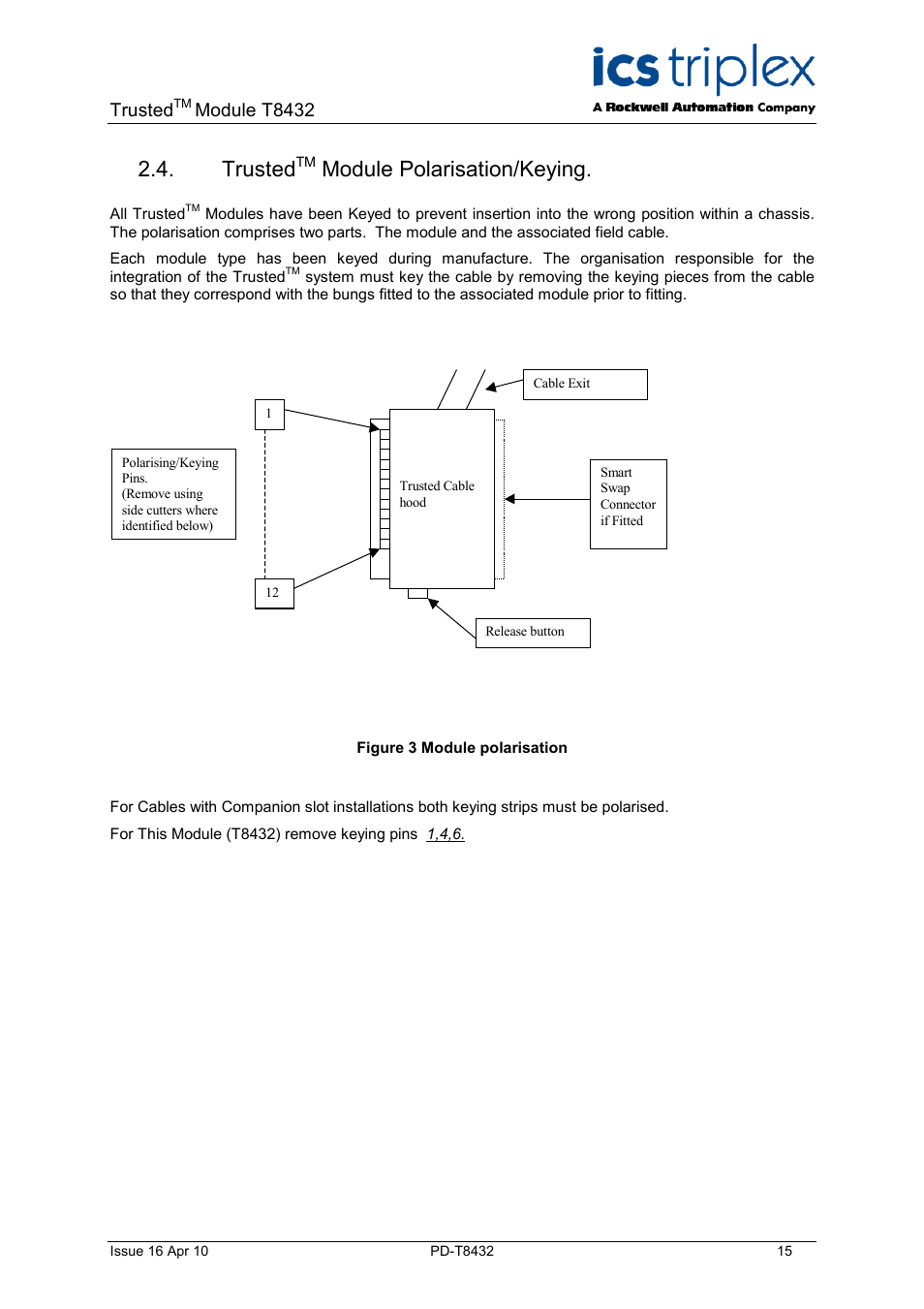

Page 15: Figure 3 module polarisation, Module t8432
