Module pinout connections, Table 2 field connector pinout, Trusted – Rockwell Automation T8432 Trusted Dual Vdc Analogue Input Module - 60 Channel User Manual

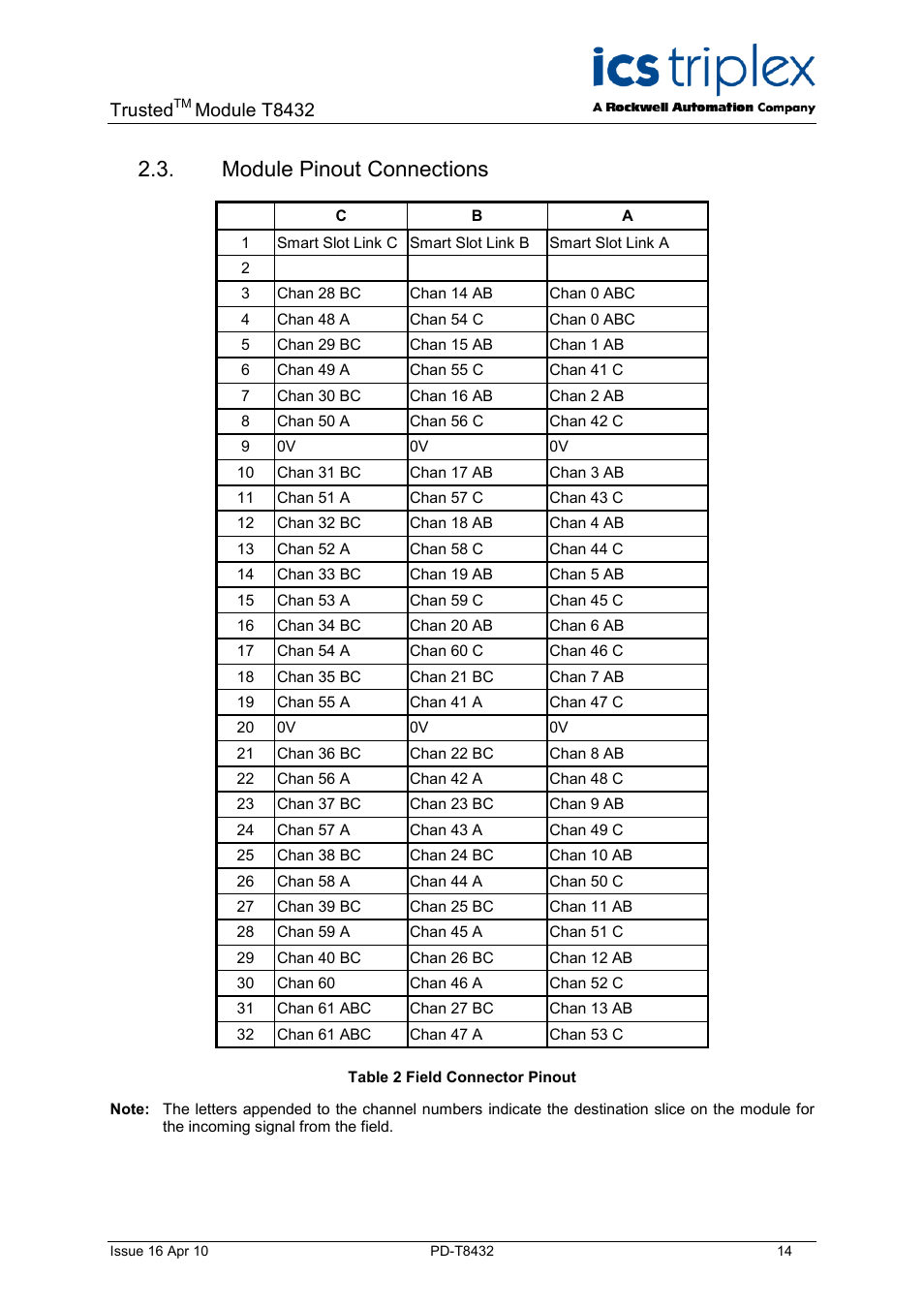

Page 14: Module t8432
