Rockwell Automation TAI16AEA 16- Channel Analogue Input Termination Module User Manual
Page 7
TAI16AEA October 2005 – Issue 6
7
Triguard SC300E TAI16AEA 16-Channel A/I Termination Module
EXTERNAL CONNECTIONS
Fixed Terminal
Details
Chassis connector J1
Connector, 34-way, DIN41612, female
Field terminals 1-16(+) and 1-16(-)
Screw terminal to suite 2.5
2
mm wire
Ground terminal TS1
Provision for M3 ring terminal
Signal ground terminal TS2
Provision for field circuit ground via M3 ring
terminal (see note in Section 2.2.1)
Field circuits

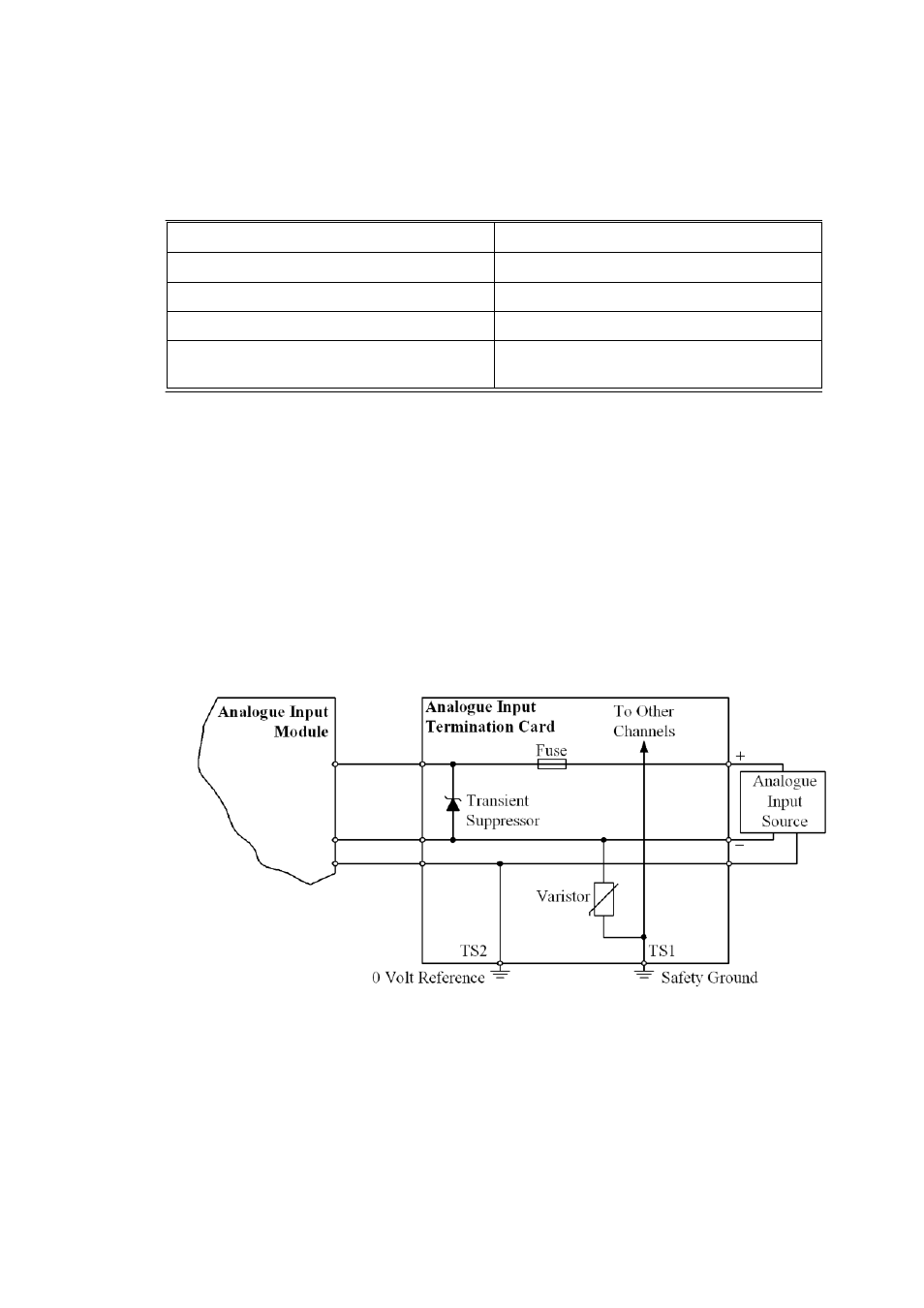

The field input circuit shown in Figure 2-3 is the absolute minimum required for the safe
connection of analogue inputs to the module.
The TAI16AEA is recommended for use with the MAI32*AD range of 32-Channel Analogue
Input modules.
NOTE
The input circuits must be directly or indirectly connected to this in such a way that the voltage on
all +ve and -ve input lines is within ±15V of it under normal operation.
Figure 2-3 Basic field input circuit
