Fault finding and maintenance, Fault reporting, Field wiring faults – Rockwell Automation T8472 Trusted TMR 120V ac Isolated Output Module User Manual

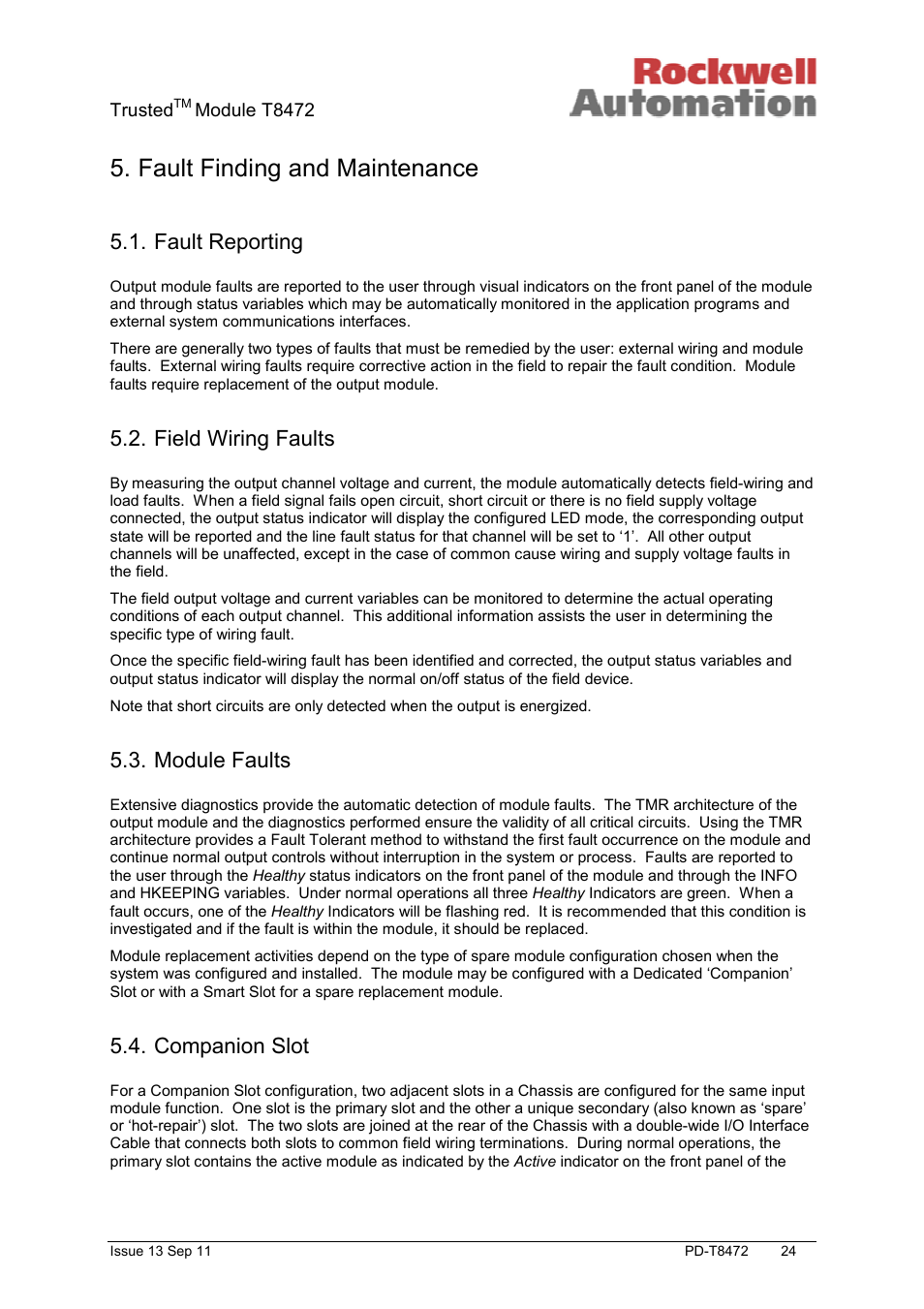

Page 24: Module faults, Companion slot
