Communications Modules (T3150A)
P D - 6 0 0 2 M a r - 0 6
7
configurations, one using RS232 connections for short
distances and the other using RS422 connections for longer
distances. Figure 4 illustrates multidrop connections between
2 or more Regents and a PC or other communications device
supporting Regent R2 or Modbus protocols. Figure 5
illustrates multidrop connections between 2 or more Regents
using the Guarded Peer-Link protocol.

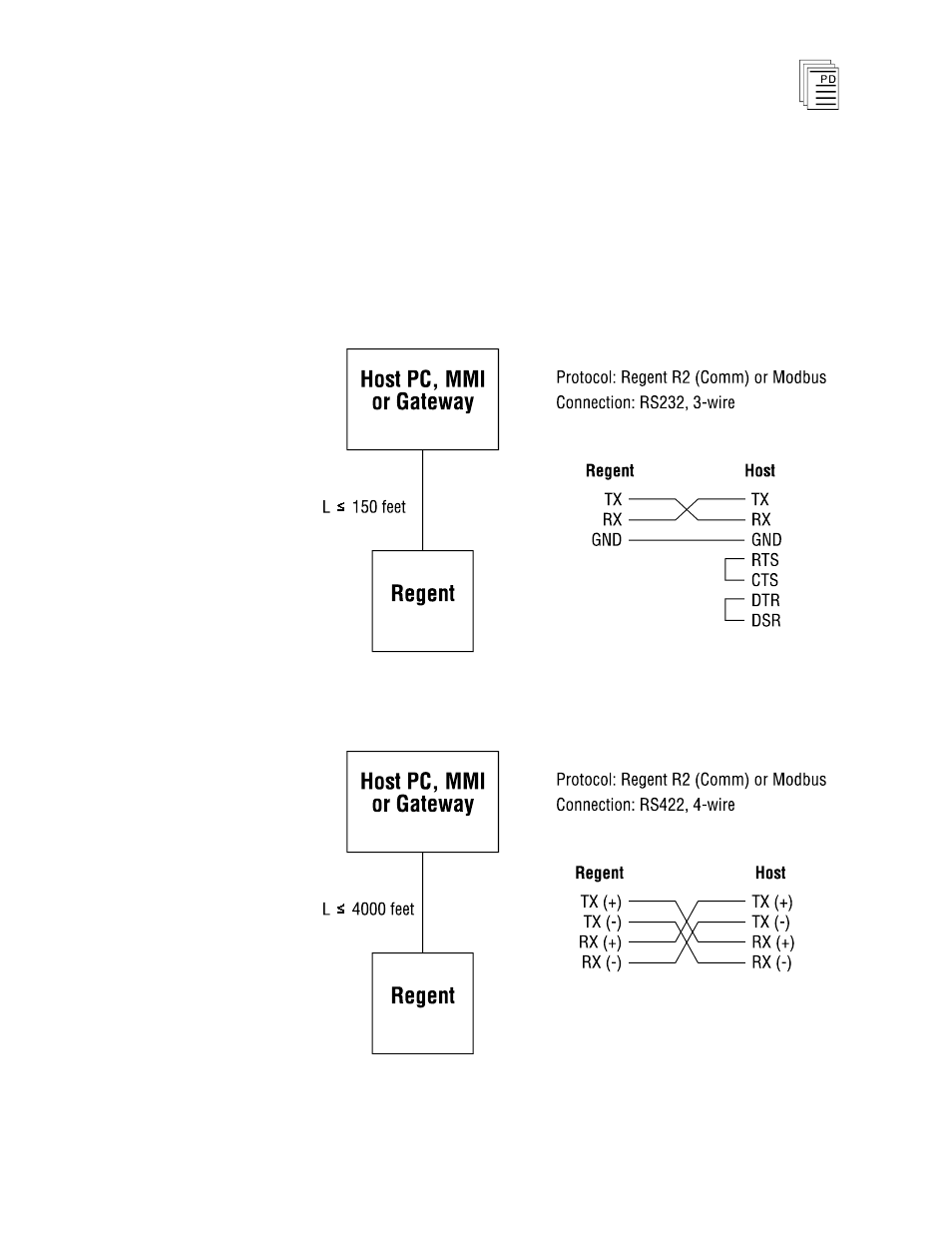

Figure 3. Point-to-Point Communications.
