Barco MIVD 1218 - Manual (Page 12)

User manual MIVD 1218 12
2.5. Routing the signal cables
(model with tilt & swivel foot option)
After connecting all cables, fix them in the cable tie at the rear of the
connector compartment. Bind the cables together above and under
the foot, by means of the 2 velcro strips included in the package.
After fixing the cables, put the connector compartment cover back in
place. Pay attention that the signal cables are positioned under the
bulge in the cover.
Next, fix the cables in the plastic clamps on the foot. At last, put the
foot cover back in place.
To put the foot cover in place:
1 Push the upper side of the cover onto the foot, so that the hooks
on the cover are positioned right under the holes in the foot.
2 Slide the cover upward while moving the lower side of the cover
towards the foot.
3 Press the cover to the foot so that both clips make a clicking
sound.

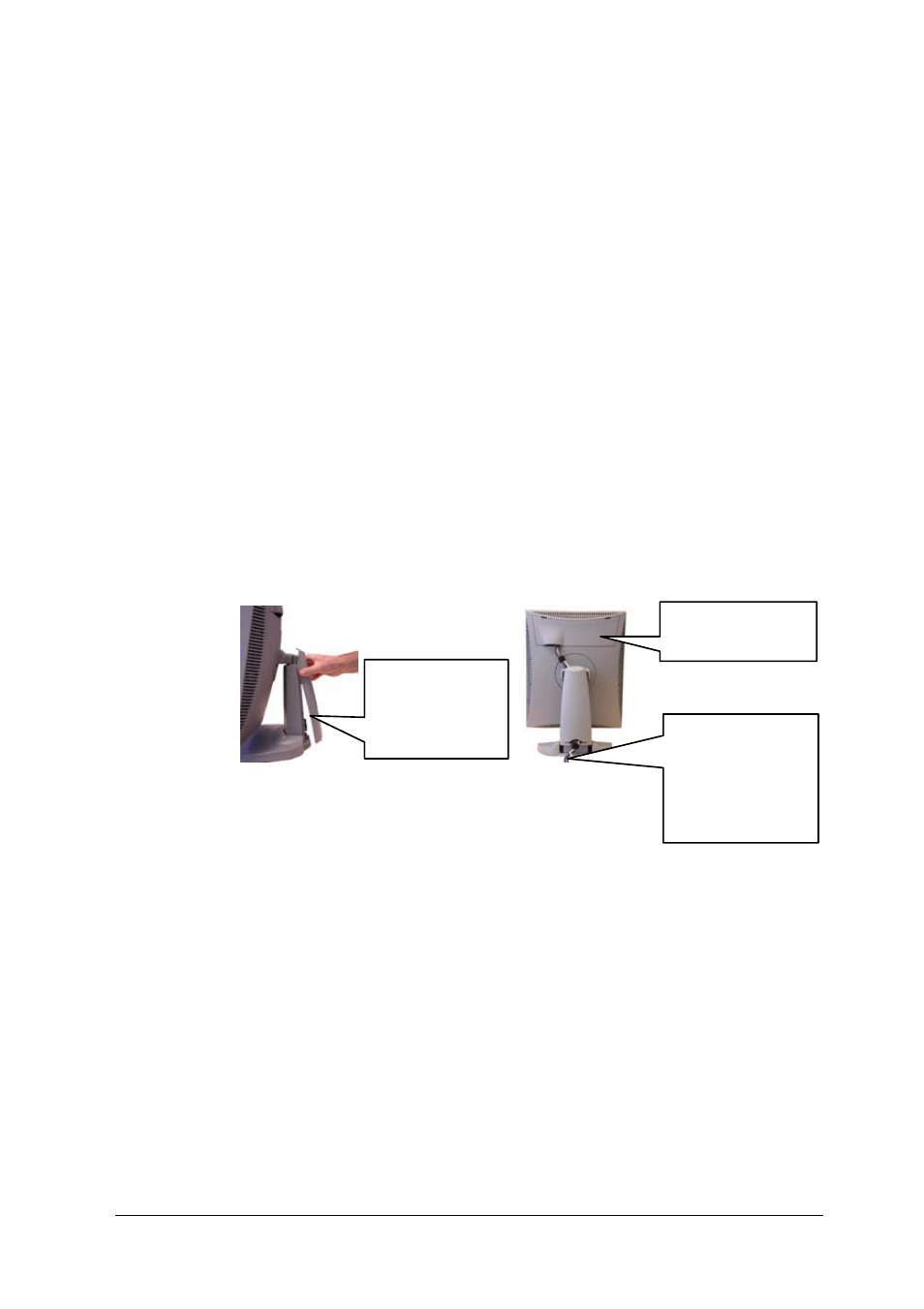

Push the upper
side of the
cover onto the
foot
Connector
compartment
Signal cables
routed under
foot cover
and bound by
velcro strips
