Rockwell Automation LiquiFlo 1.0 and 1.5 External Bus Resistor Kit (1200 Amp) User Manual
Page 8
8
Instruction Manual D2-3537

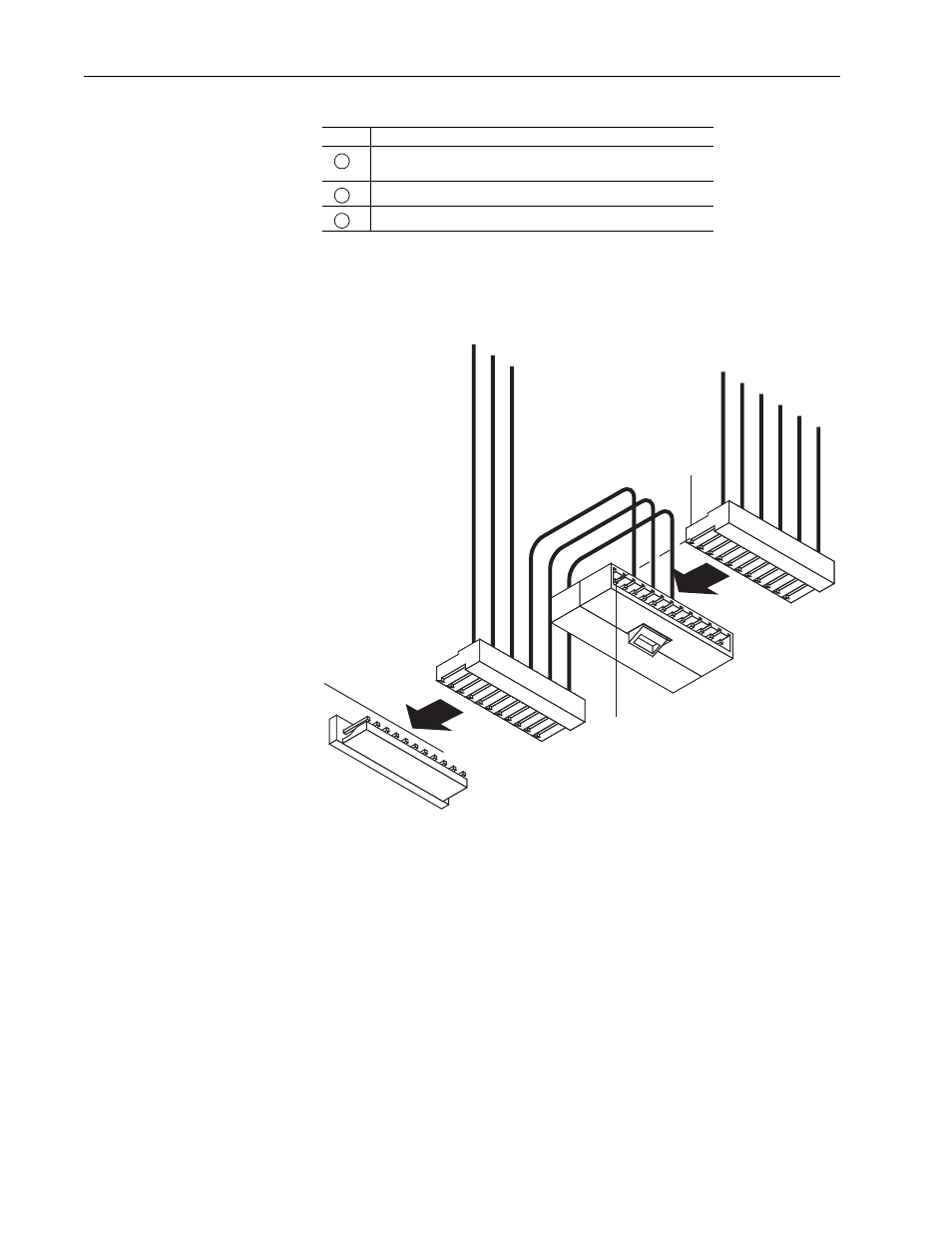

Step 7: Connecting J4, J4A
and J4B
Task
Description
Disconnect the J4 plug from its header on the PIC board on a
LiquiFlo 1.0 drive or the PMC board on a LiquiFlo 1.5 drive
Plug J4 into J4B
Plug J4A into the J4 header on the PMC Board
A
B
C
J4 Header on
PMC Board
Pin 1
Pin 1
J4
J3B
J4A
Har
ness to
Resistor Assemb
ly
Har
ness
to Dr
ive
J4B
Important: You must align J4 Pin 1 with J4B Pin 1. J4 has
eleven pins and J4B has twelve pins. If you fail to
align the connectors, the 120L4060 drive will not
run because motor voltage feedback circuits will
remain open. The LF151200W4 drive does not use
motor voltage feedback, so there is no electrical
connection between J4 and J4B.
