10
Instruction Manual D2-3537
Step 9: Verifying the
Installation
Follow the normal steps for verifying drive installation and operation. Refer to the
drive Hardware Reference and Software Start-up manuals.
Performing Continuity Tests
In these tests you are verifying continuity, a short circuit, between the two test
points. The continuity mode on a digital multi-meter provides the easiest method
for performing this test. Place one meter lead on the first test point and the meter
should beep when you place the other lead on the second test point.
If your meter does not have a continuity mode, you can use a resistance mode.
Place one meter lead on the first test point and the meter should indicate a short
circuit (read approximately zero ohms) when you place the other lead on the
second test point.

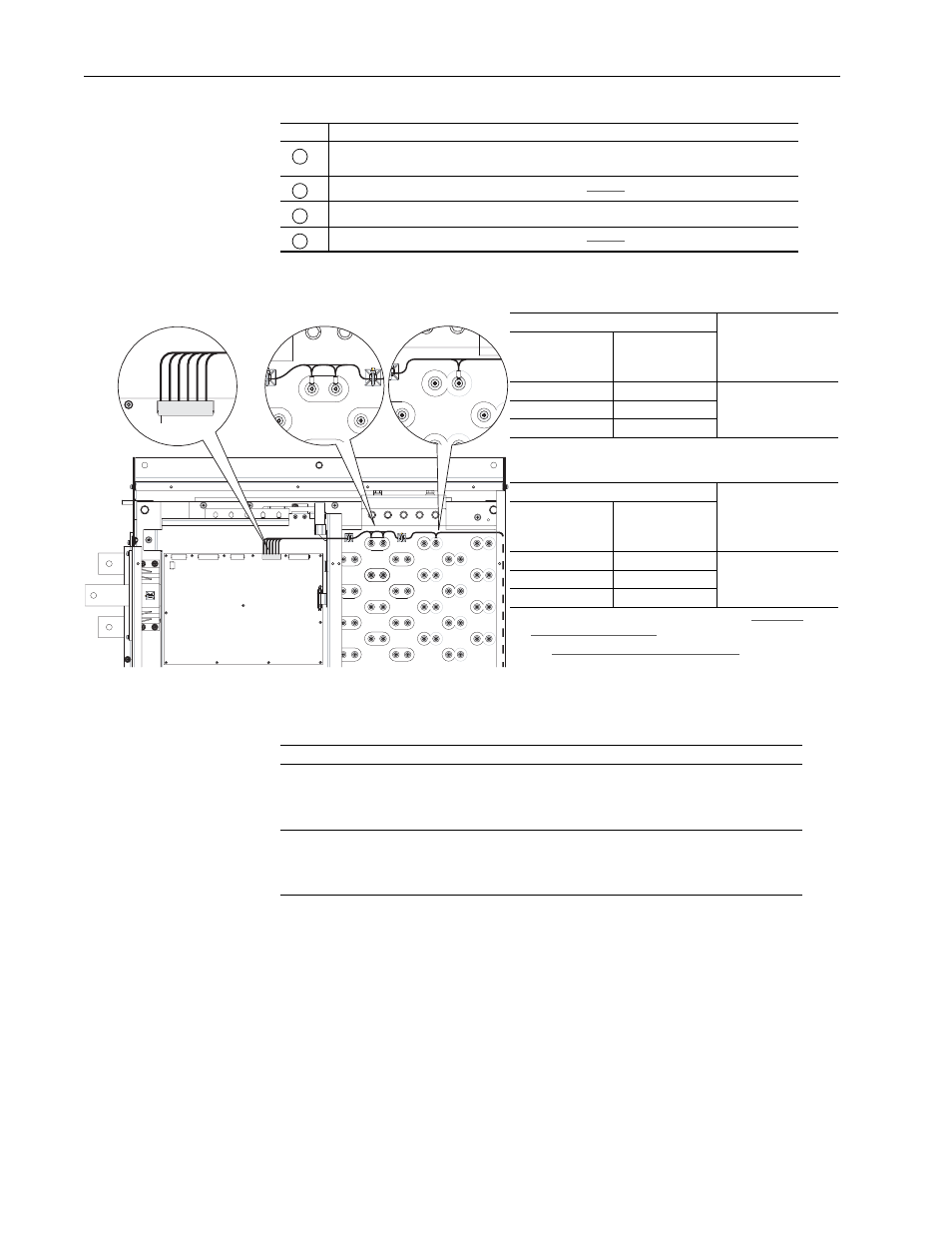

Task
Description
Disconnect J4A from the PIC board on a LiquiFlo 1.0 drive or the PMC board on a LiquiFlo
1.5 drive
Confirm continuity between the points specified in
Table A
Reconnect J4A
Confirm continuity between the points specified in
Table B
A
B
C
C
J4/J4A/J4B
CAP (-) and
CAP MID
CAP (+)
Pin 1
Table A J4 Continuity Tests
Table B Capacitor Bank Continuity Tests
Test Points
(1)
Meter Reading
J4 End of Cable
Resistor
Assembly End of
Cable
(2)
J4:Pin 1
BUS (+)
Continuity or
approximately zero
ohms
J4:Pin 3
BUS MID
J4:Pin 5
BUS (-)
Test Points
(1)
(1)
If you are unfamiliar with continuity tests, refer to
Performing
Continuity Tests on page 10
.
Meter Reading
Capacitor Bank
End of Cable
Resistor
Assembly End of
Cable
(2)
(2)
See
Wiring Diagram for Reference on page 12
.
CAP (+)
BUS (+)
Continuity or
approximately zero
ohms
CAP MID
BUS MID
CAP (-)
BUS (-)
If you have a...
... refer to these publications:
LiquiFlo 1.0 drive
• D2-3410, LiquiFlo AC General Purpose (Volts/Hertz) and Vector Duty Drive
Software Start-up
• D2-3411, LiquiFlo AC Power Modules Hardware Reference, Installation and
Troubleshooting
LiquiFlo 1.5 drive
• D2-3494, LiquiFlo 1.5 AC Power Modules Hardware Reference, Installation,
and Troubleshooting
• D2-3495, LiquiFlo 1.5 AC General Purpose (Volts/Hertz) and Vector Duty
Drive Software Start-Up and Reference Manual
