PowerFlex 750-Series Board Replacement Kits 7

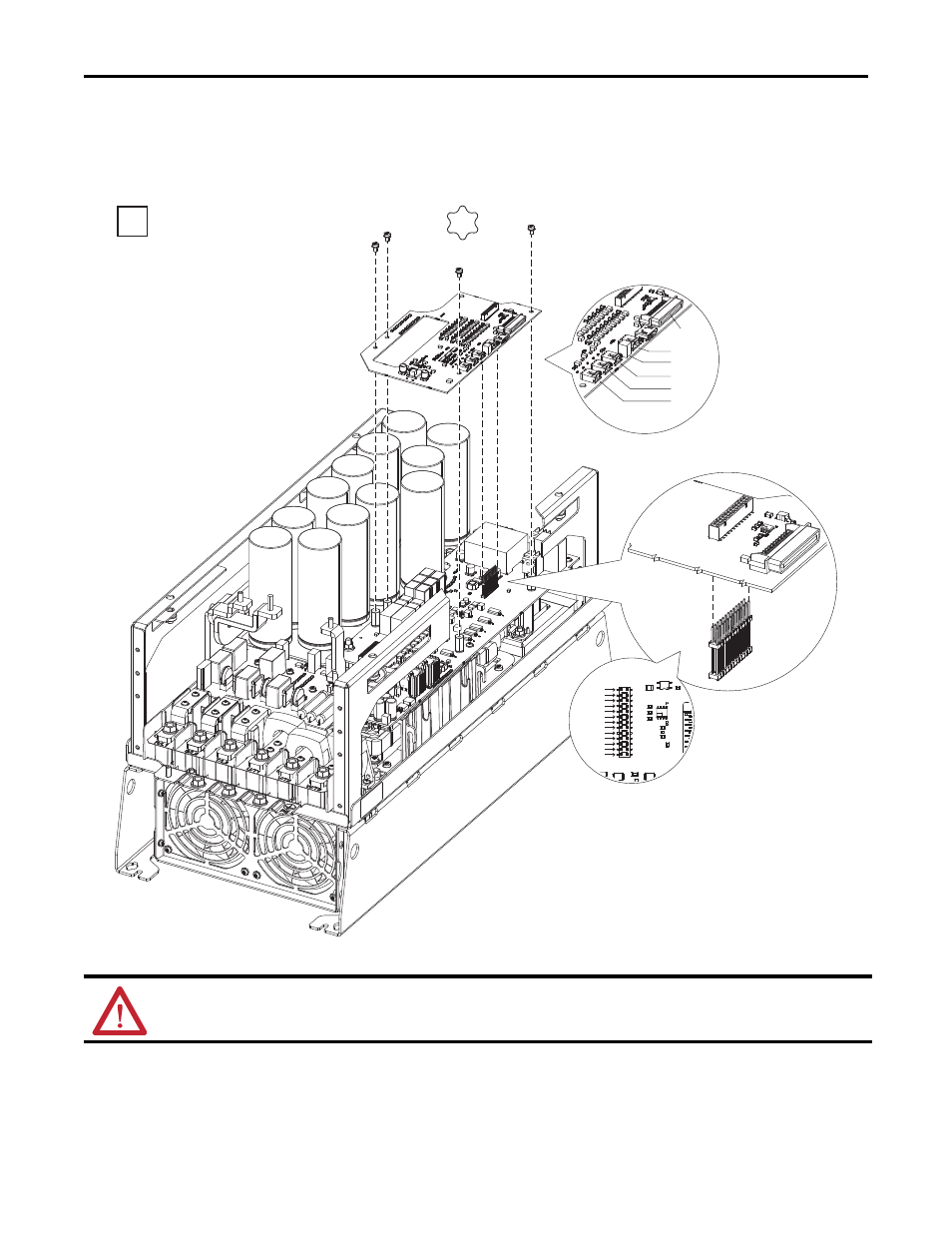

600/690V Frame 6 Drives – Power Interface Boards
600V: SK-R9-PINT1-EF6A, -EF6B, -EF6C, -EF6D, -EF6E, -EF6F, -EF6G, -EF6H, -EF6J, -EF6K, -EF6M, -EF6N, -EF6P
690V: SK-R9-PINT1-FF6A, -FF6B, -FF6C, -FF6D, -FF6E, -FF6F, -FF6G, -FF6H, -FF6J, -FF6K, -FF6L, -FF6M, -FF6N
2
2.6 N•m (23 lb•in)
T20
U/T1
V/T2
W/T3
NTC
Precharge
MCB
ATTENTION: Hazard of equipment damage exists if any board connector is not in full contact with its corresponding
socket when power is applied. When installing the replacement board, be sure the pin connector is aligned and all plugs
are fully seated.
