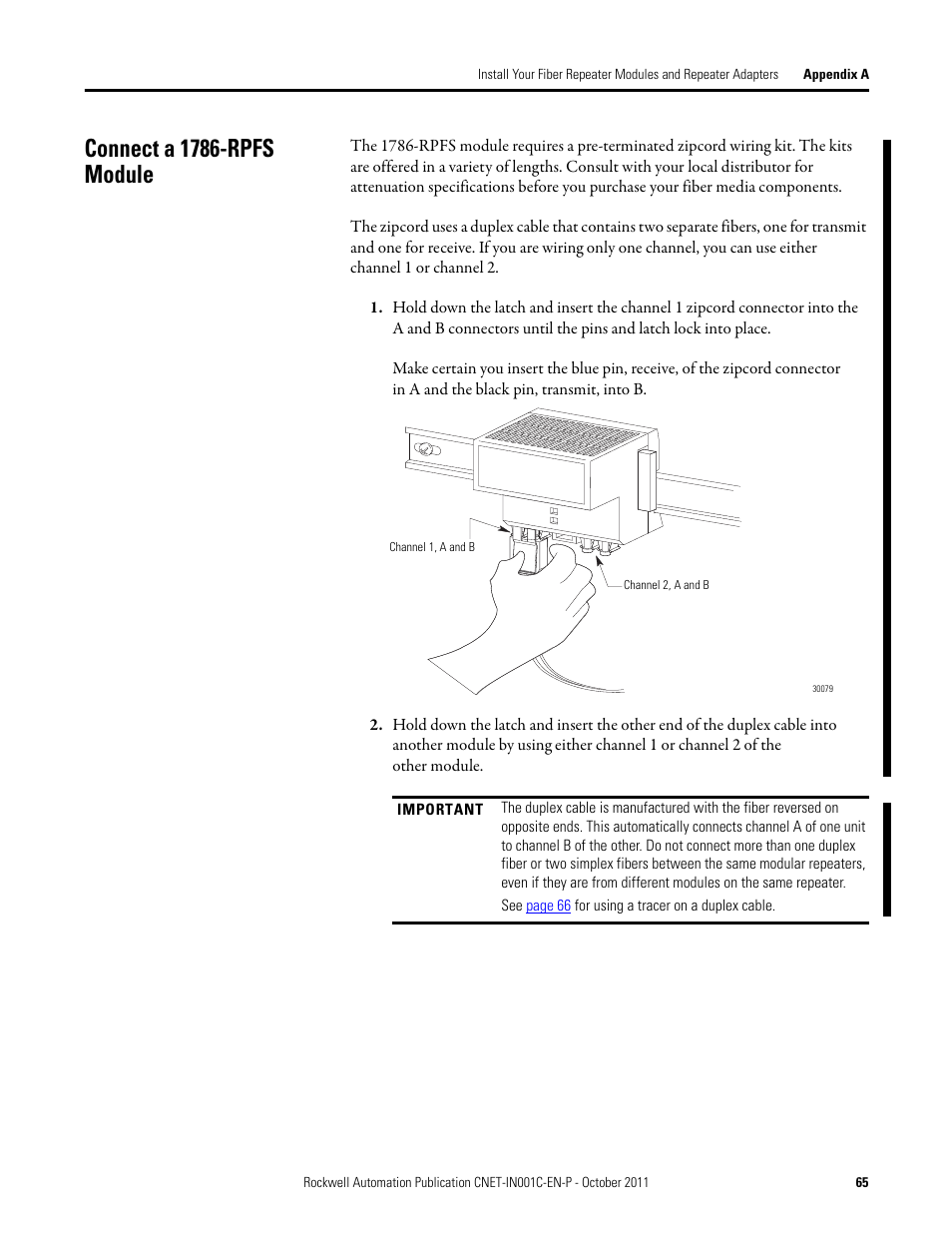

Connect a 1786-rpfs module – Rockwell Automation 1786-series ControlNet Fiber Media Planning and Installation Guide User Manual
Page 65
