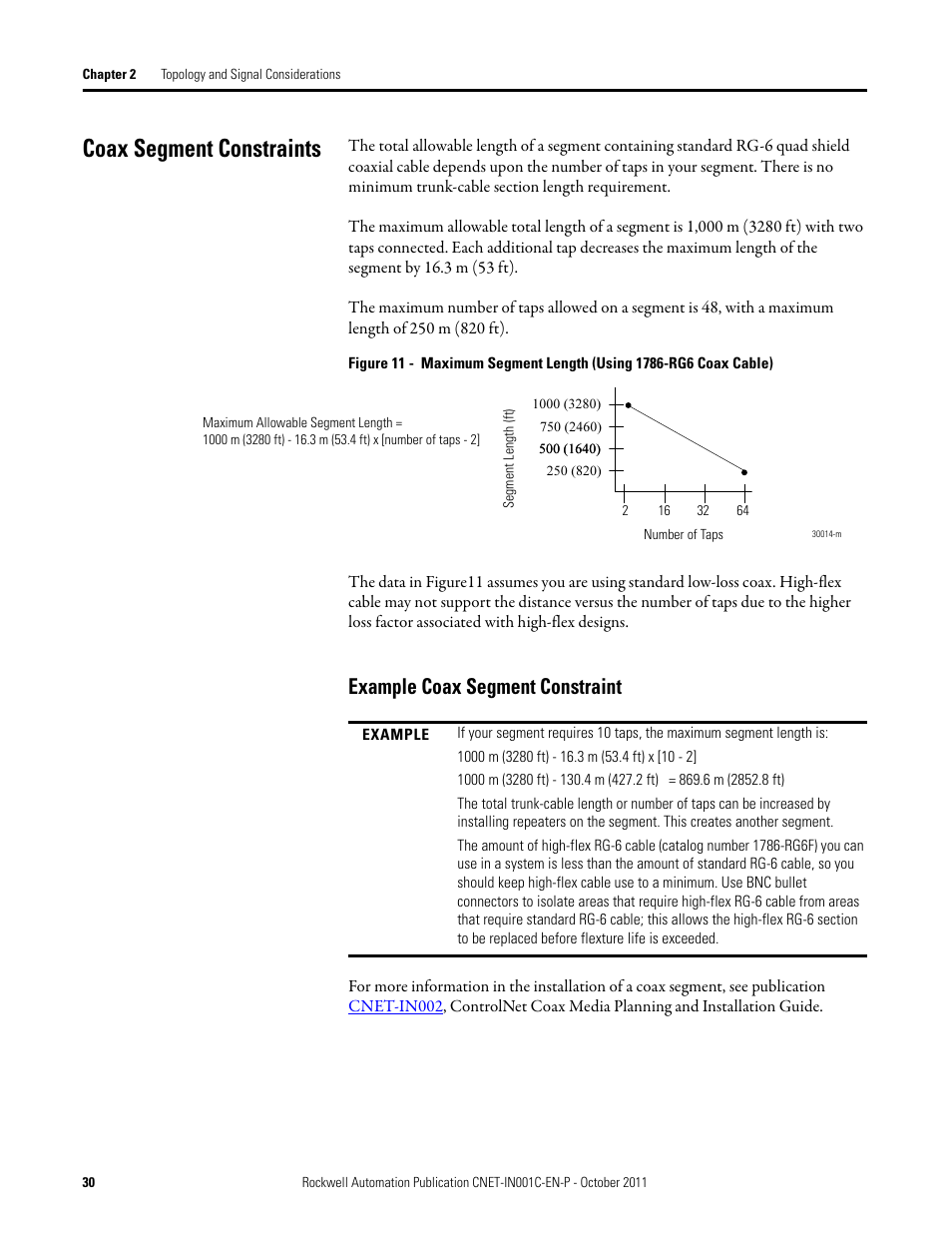

Coax segment constraints, Example coax segment constraint – Rockwell Automation 1786-series ControlNet Fiber Media Planning and Installation Guide User Manual
Page 30
