Developing an HMI Application 41

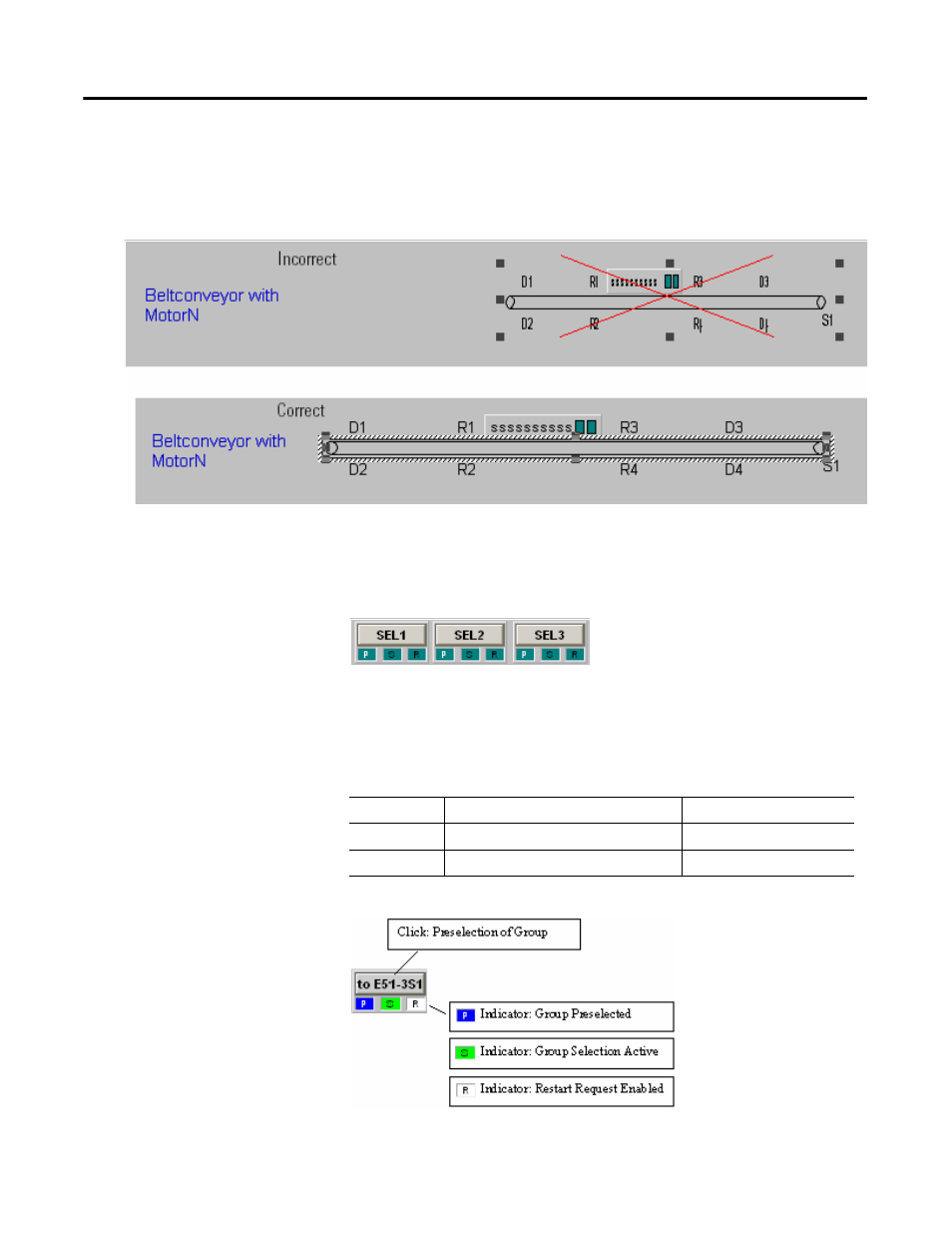

Modifying Graphic Objects When you are using template graphics, do not modify the whole template to
change the shape or size of individual objects. This distorts fonts and other
objects in the graphic. Instead, only modify that object which needs to be
changed. See the example below for further explanation.
Selection Buttons for
Machine Groups (MaGrp) There are many ways to generate selection buttons or switches. This section
describes how to add template buttons.
Change the caption of the button as needed.
Use the Tag Substitution procedure on page 30 to replace the following
placeholders.
Placeholder Replace with For example
_TOPIC_ The appropriate shortcut name E50_V16
MaGrp_ The appropriate Machine Group name E51_000_02
