Math Package for W INTERPRET (T3833)
1 8
Industrial Control Services

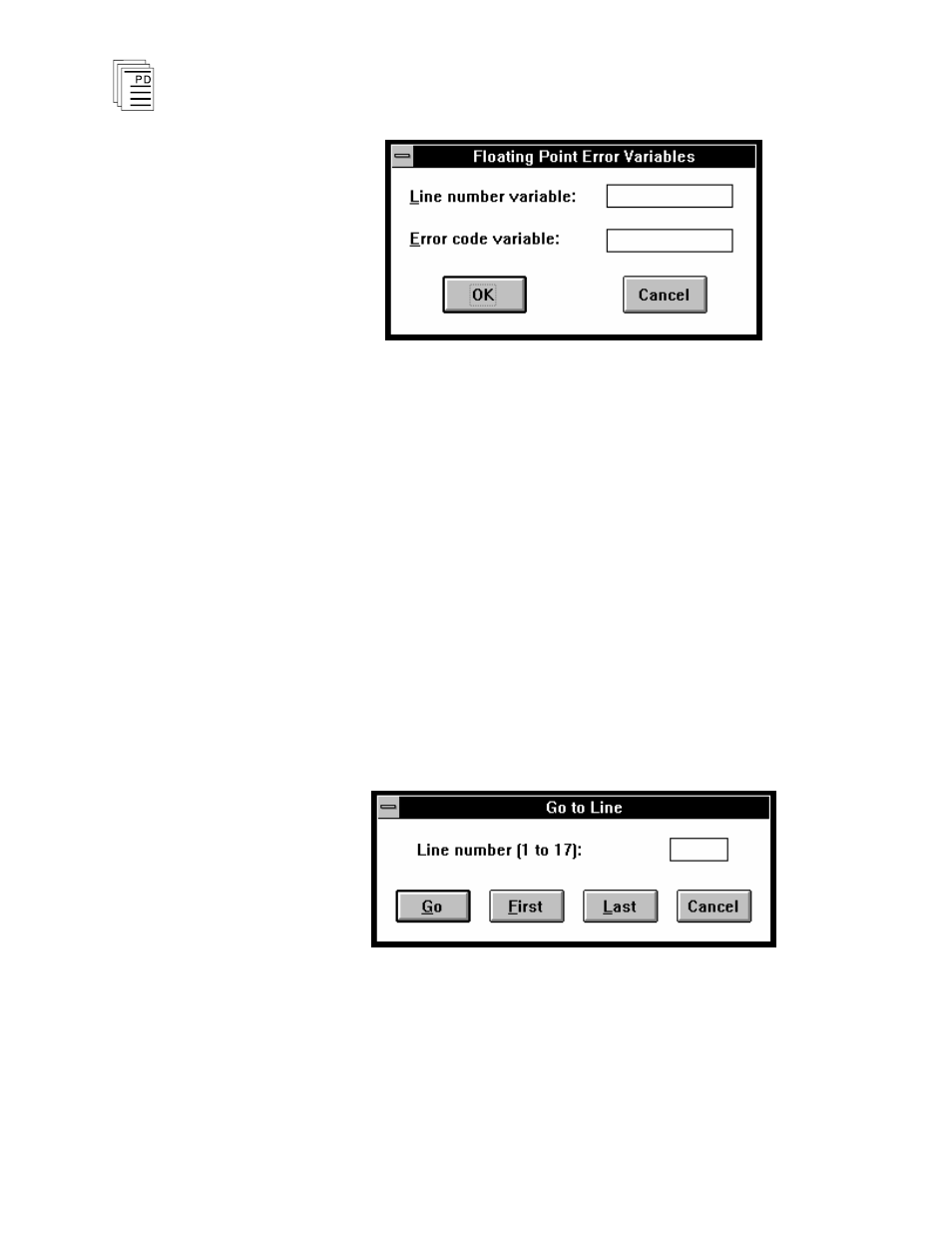

Figure 3. Floating Point Math Error Variables.
Line number variable
Enter the tag name for the line number variable. The
variable is used to report line numbers that generate math
errors if they occur during execution in the Regent.
Error code variable
Enter the tag name for the error code variable. The variable is
used to report the error code for math errors if they occur
during execution in the Regent.
Search Menu
Go to Line
The Go to Line command lets you quickly move to different
lines in the floating point math function block. From the
Floating Point Math Editor's Search menu choose Go to Line
(
ALT,S,G ).
Figure 4. Floating Point Math: Go to Line.
For your convenience, the dialog displays the number of lines
currently defined in the function block.
Line number
Enter the line number that you want to go to.
