ICS Triplex Turbo Machinery Control
PD-6050 Dec 04 8
Unpacking and Inspection
•
Upon receipt of the T6050, unpack it carefully and visually check for damage.
If anything is damaged, contact ICS Triplex for instructions for returning it to the factory. If
everything appears to be in order, proceed with the instructions in the following paragraphs.
Mounting

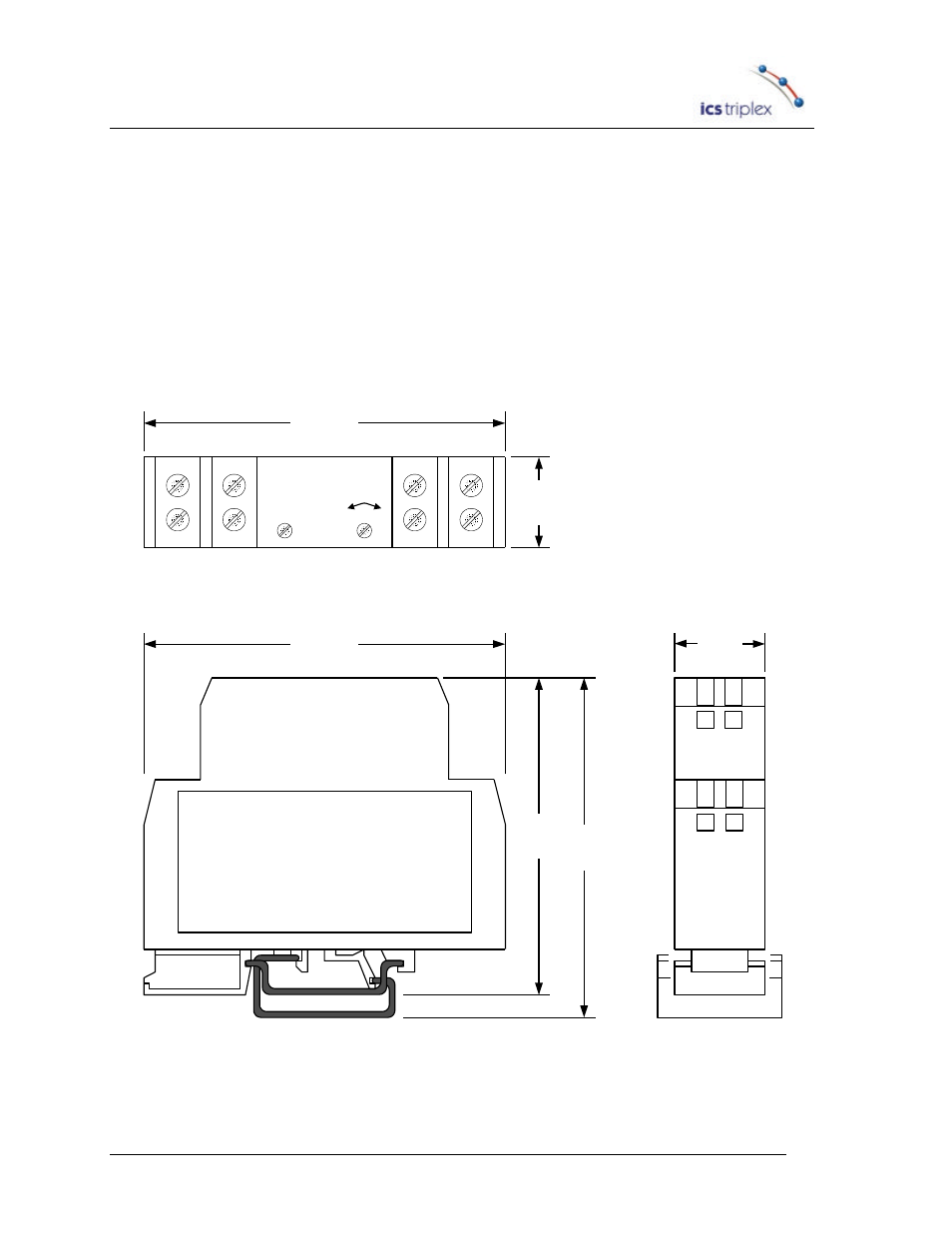

The following figure provides mounting dimensions for the T6050.
ics triplex
T6050
SurgeGard
5 6
7 5
T6050
SurgeGard
X5 X30 4mA
3.15"
(80)
0.79"
(20)
3.15"
(80)
0.79"
(20)
2.76"
(70)
2.98"
(75)
TOP VIEW
FRONT VIEW SIDE VIEW
Figure 3. Mounting Dimensions
