Trusted
TM
Cabinets CF800
Issue 6 Sep 05
PD-CF800
10
1.3. Side Covers SC(E)

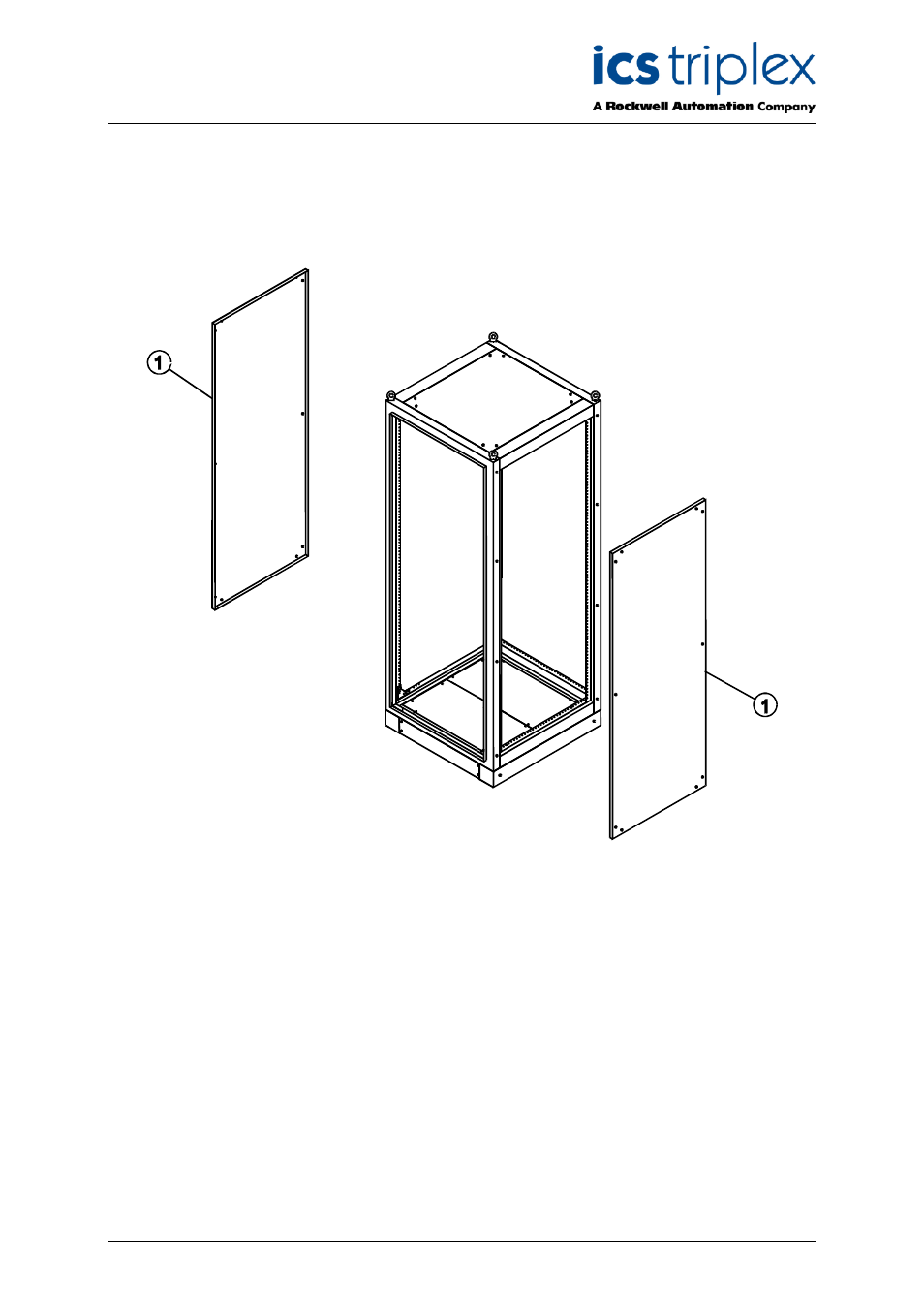

Figure 4 shows the assembled cabinet main frame, fitted rear cover and side covers.
Figure 4 Side Covers
The side covers are fitted to the cabinet main frame as follows.
1. Position the side cover (Item 1) in the recess on the side of the cabinet main frame. Secure
in position using the 10-off M6 x 16 pan head screws provided. Tighten the screws.
2. Repeat 1. above for the other side cover.
