Rockwell Automation T7470A ICS Regent+Plus Analog Output Modules User Manual
Page 12
Analog Output Modules (T7470A)
1 2
Industrial Control Services
Figure 8). During the calibration steps you will remove the
printed circuit board from the housing in order to access these
potentiometers for adjustment.

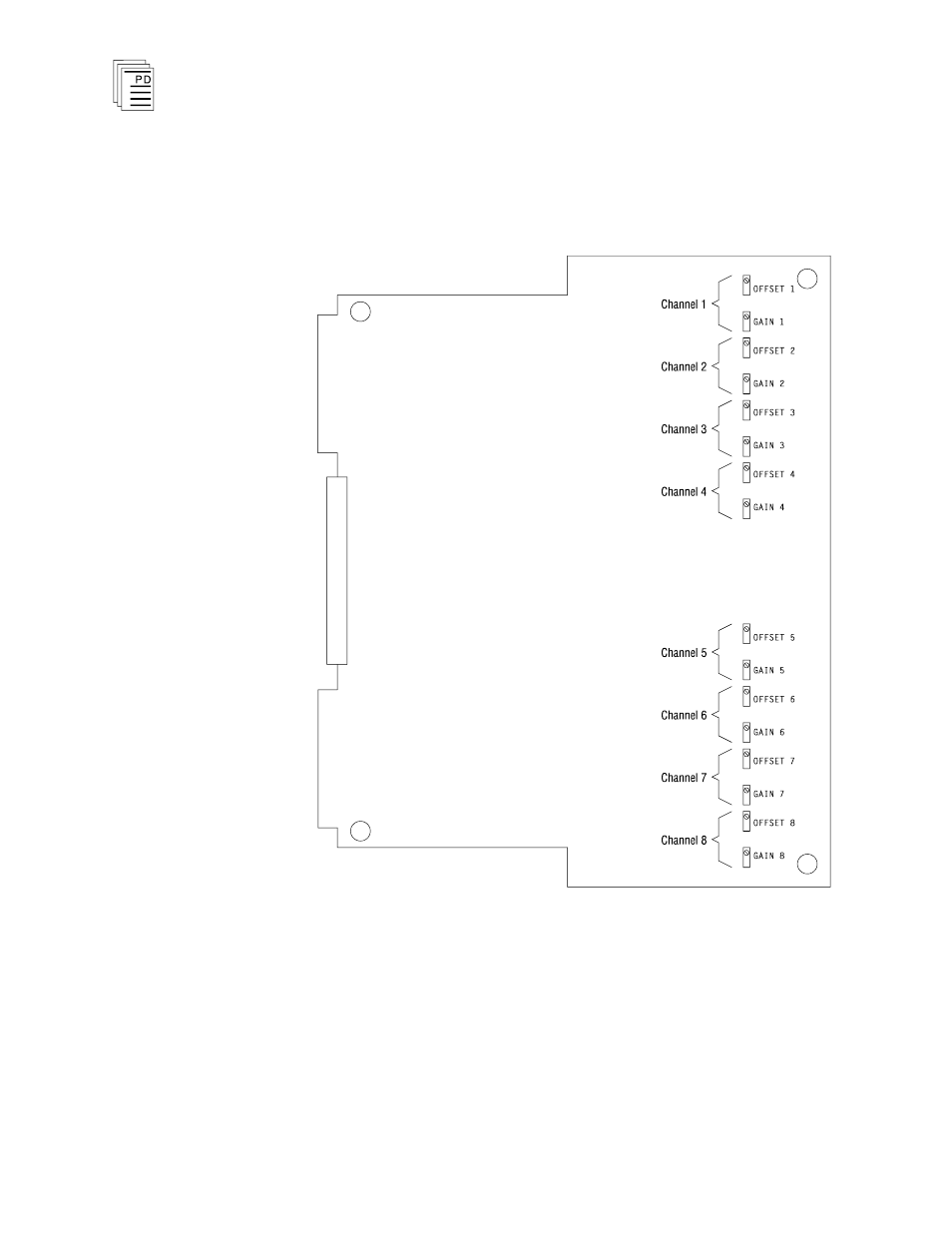

Figure 8. Analog Output Module Calibration Potentiometer
Locations.
The I/O extender module has jumper posts that allow you to
connect or disconnect the I/O slot field wiring on the I/O
chassis to the printed circuit board plugged into the I/O
extender. During the calibration steps you will remove any
jumpers installed on these posts in order to connect the
