Digital outputs, Trusted, Power groups – Rockwell Automation T80004 Application Note Field Loop Configuration User Manual

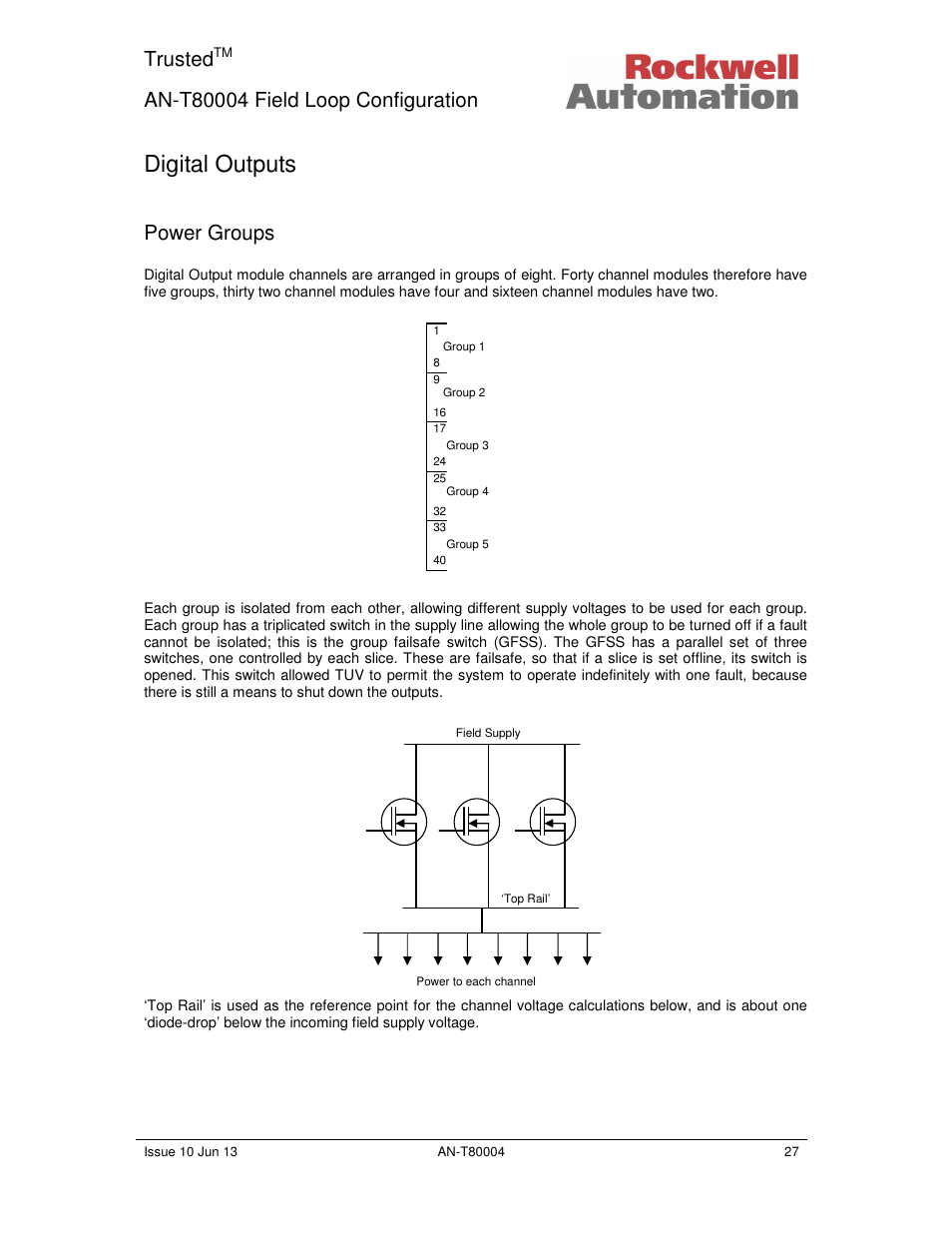

Page 27
