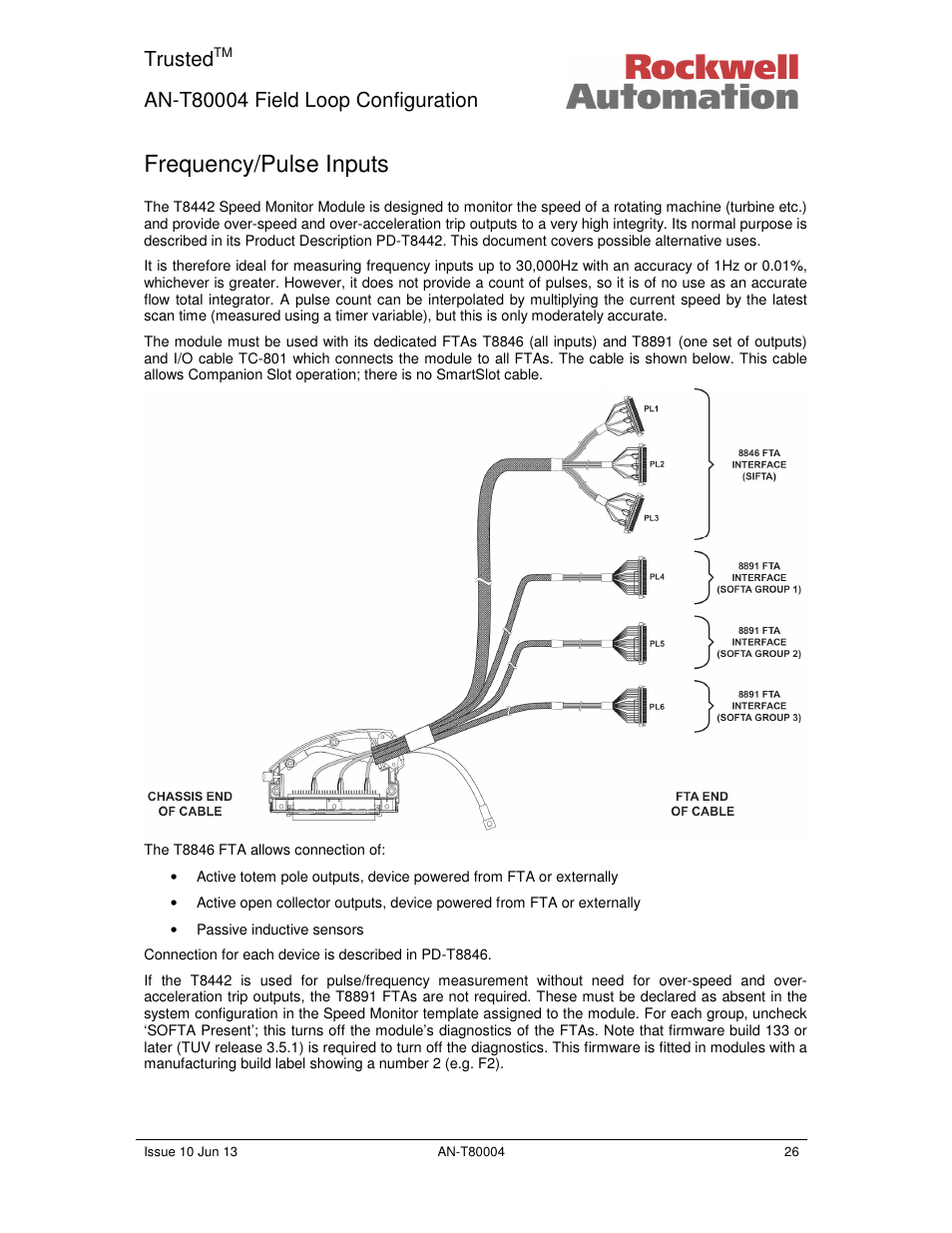

Frequency/pulse inputs, Trusted – Rockwell Automation T80004 Application Note Field Loop Configuration User Manual
Page 26
