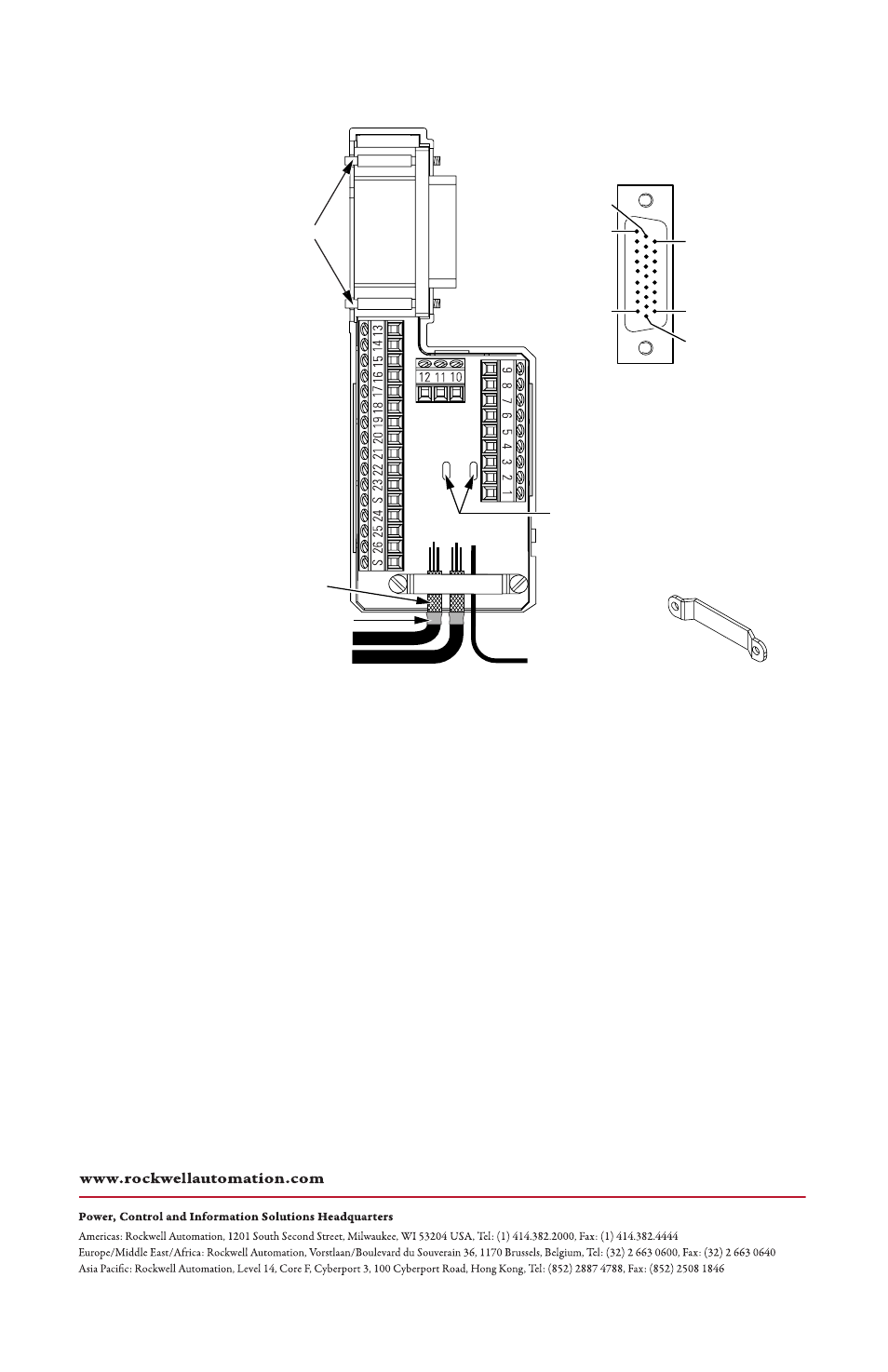

Catalog Number 2090-K6CK-D26M
Refer to your drive user manual for information on wiring the connector kit.
Pin 1
Pin 18
Pin 9
Pin 19
Pin 10
Pin 26
Tie Wrap Slots
Exposed Braid Under Clamp
Turn clamp over to hold small
wires secure.
Mounting Screws
Three-conductor I/O Cables (2) Discrete I/O Wire
Shrink-wrapped Insulation
26-Pin (male)
User I/O (IOD) Connector
Follow these steps to form a compact
connection.
1. Push the insulation
down-and-over itself.
2. Move the insulation so it butts
against the outside wall of cover.
3. Tape or shrink-wrap the end of the
insulation to the cable.
