Installing the shunt, Orientation and clearance – Rockwell Automation 9101-1183, formerly 9101-1079 200 Watt Passive Shunt Module Installation Instructions User Manual
Page 2

Publication 2090-IN003A-EN-P — November 2002
2 200 Watt Passive Shunt Module
Installing the Shunt
Orientation and Clearance
The following enclosure restrictions must be considered because the
shunt module dissipates excess regenerative power in the form of
heat. Refer to Figure 1 for shunt module spacing requirements.

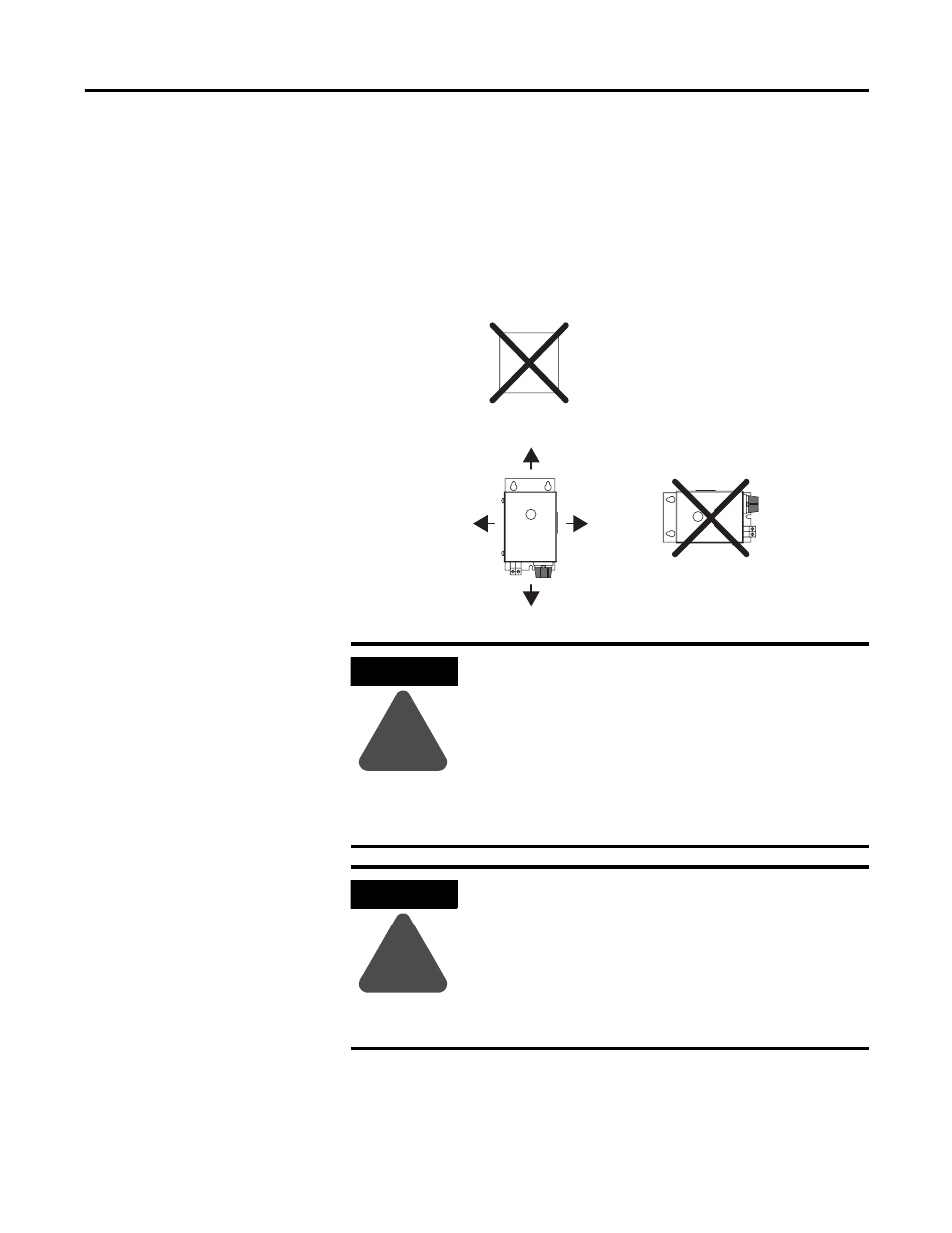

Figure 1
Shunt Module Spacing Requirements Within an Enclosure
ATTENTION
!
The shunt module can release a large amount of heat
over time.
Any materials above the shunt module or its
enclosure may need the protection of a metal plate
to keep from deteriorating.
Failure to observe this precaution could result in
damage to surrounding materials, possibly leading to
fire.
ATTENTION
!
The shunt module can release a large amount of heat
inside an enclosure.
Ensure there is enough ventilation so as the
maximum ambient temperature of 50° C (122° F) is
not exceeded.
Failure to observe this precaution could result in
damage to the shunt module.
Do not mount temperature
sensitive components
above shunt module
87 mm (3.4 in.) min. of clearance on
each side of the shunt module.
Do not mount shunt module
on its side
