Attach terminal to the adapter plate – Rockwell Automation 2711p-RAK15, -RAT15 Adapter Kit for PanelView 1400e Touch Terminal User Manual
Page 6

6 Adapter Kit for PanelView 1400e Touch Terminal Cutout
Publication 2711P-IN011C-MU-P - March 2007
Attach Terminal to the Adapter Plate
1. Insert the new terminal into the front of the enclosure until the terminal
gasket is flush with the adapter plate.
2. Install the 8 mounting clips (2 top, 2 bottom, 2 on each side).
The ends of the mounting clips slide into the slots on the terminal. The top
or bottom clips tighten directly to the adapter plate.
3. Tighten the screws on the mounting clips by hand until the gasket seal
contacts the mounting surface uniformly.
4. Using the torque wrench, tighten the screws on the mounting clips to the
proper torque rating provided in the installation instructions for the new
terminal.
This is necessary to maintain a NEMA Type 4X rating. Do not overtighten.
ATTENTION
Tighten the mounting clips to the specified torque to provide a proper seal and
to prevent potential damage to the product. Allen-Bradley assumes no
responsibility for water or chemical damage to the product or other equipment
within the enclosure because of improper installation.

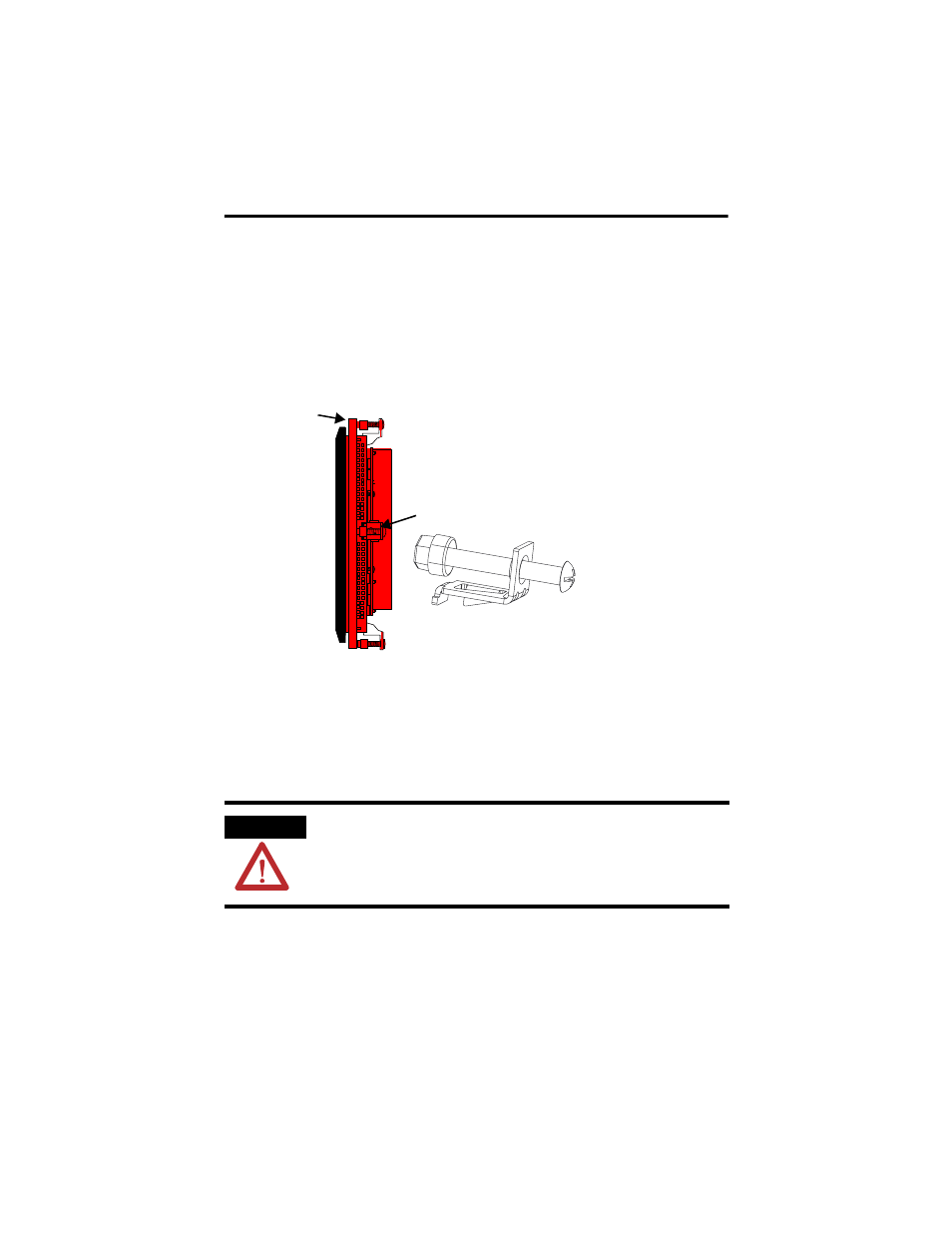

Adapter Plate
Mounting Clip
