Accessory Mounting Brackets and Covers
2
The lower bay mounting bracket (Catalog No. 6189-LBFDBRKT)
allows you to mount a floppy drive facing either the front or the back
of the 6180 computer as shown below.
•

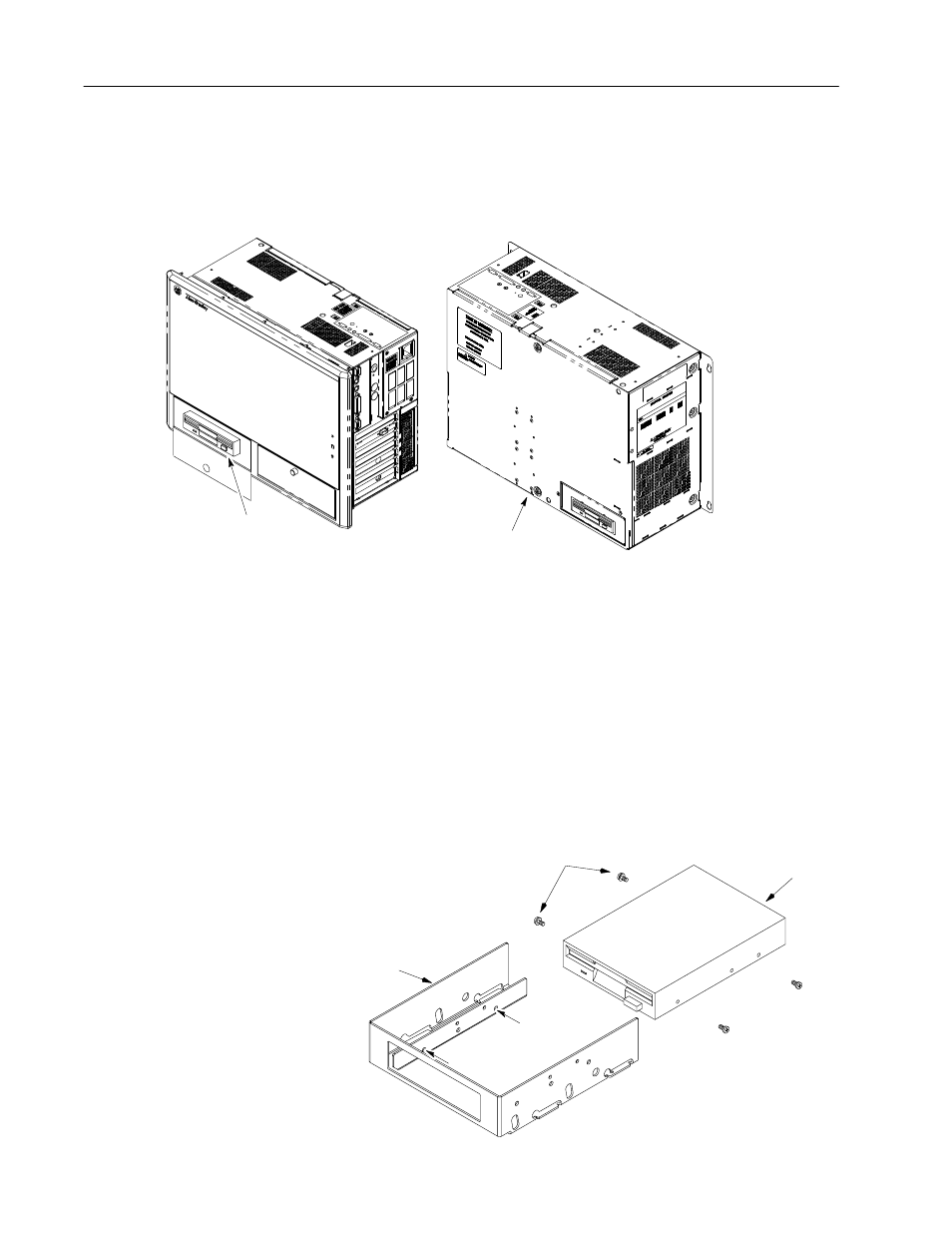

Mounting Bracket for Lower Bay Floppy Drive
(Catalog No. 6189-LBFDBRKT for Series A and B)
Front Mounting
Rear Mounting
Installation
Note: You can also use these procedures to intstall a front or rear
facing CDROM drive (without mounting bracket). The lower bay
floppy drive mounting bracket and CDROM drive use the same sets
of chassis mounting holes.
To install a floppy using the lower bay mounting bracket:
1. Secure the floppy drive to the drive bracket using four screws
supplied with the bracket. Tighten screws to a torque of 6-8 in.
lbs (.7-.9 N
Sm).
Drive Bracket
Drive Mounting Screws (4)
Floppy Drive
Floppy Drive Lower Bay
Mounting Bracket
