8 FLEX Ex Bus Isolator and Flexbus Connector
Publication
1797-5.13 - June 2010
Install the 1797-BIC Module
The 1797-BIC module mounts on a DIN rail. It connects to a 1797-CEC
module.
1. Remove the cover plug (if used) in the male connector of the unit to
which you are connecting this module.

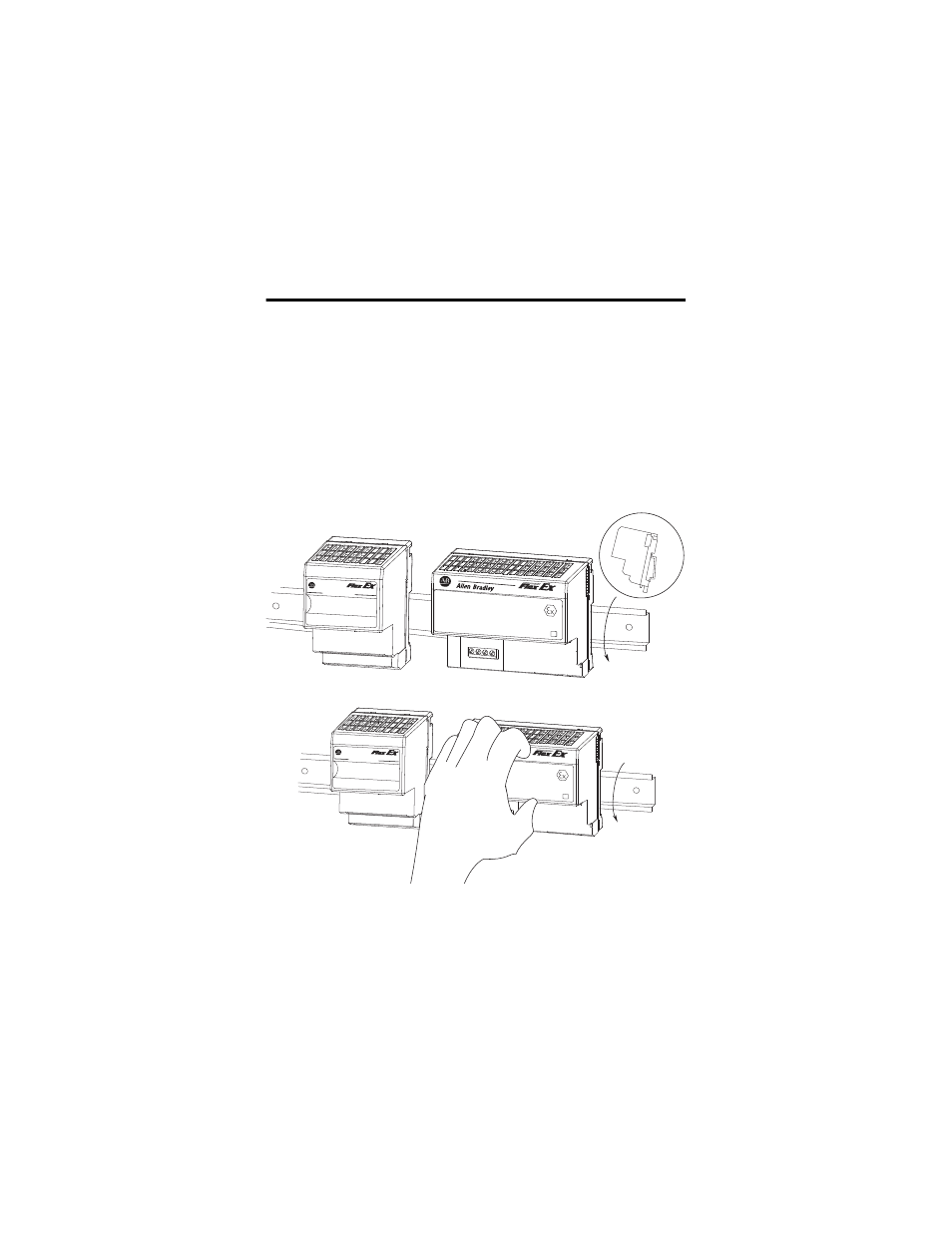

2. Position the module on the 35 x 7.5 mm DIN rail A (A-B pt. no.
199-DR1).
3. Rotate the module onto the DIN rail with the top of the rail hooked
under the lip on the rear of the module.
4. Press down to lock the module on the DIN rail.
If the module does not lock in place, use a screwdriver or similar
device to move the locking tab down, press the module flush with the
DIN rail, and release the locking tab to lock the module in place.
1797-CEC
1
3
2
4
+V
+V
-V
-V
PWR
FLEXBUS
ISOLATOR
1797-BIC
42645
A
A
1797-CEC
1
3
2
4
+V
+V
-V
-V
PWR
FLEXBUS
ISOLATOR
1797-BIC
42646
