10 PanelView 1000 Terminals
Publication 2711-IN036J-EN-P - November 2009
6. Alternately tighten the mounting clip screws to a torque of 1.13 N•m
(10 lb•in). Do not overtighten. Bezel may not contact enclosure surface.
7. Remove the 2 protective labels covering the top vents of the terminal.
Installing the Memory Card Retainer
The memory card retainer is required for UL508 installations where a memory card is
inserted in the card slot. The retainer protects against Electrostatic Discharge (ESD) up to
15KV and prevents accidental removal of a memory card in high vibration environments.
To attach the memory card retainer:
ATTENTION
Tighten mounting clips to a torque of 1.13 N•m (10 lb•in) to provide a proper
seal and to prevent potential damage to the terminal. Allen-Bradley assumes
no responsibility for water or chemical damage to the terminal or other
equipment within the enclosure because of improper installation.
ATTENTION
Remove the protective installation labels covering the top vents to prevent
overheating and damage to the terminal.

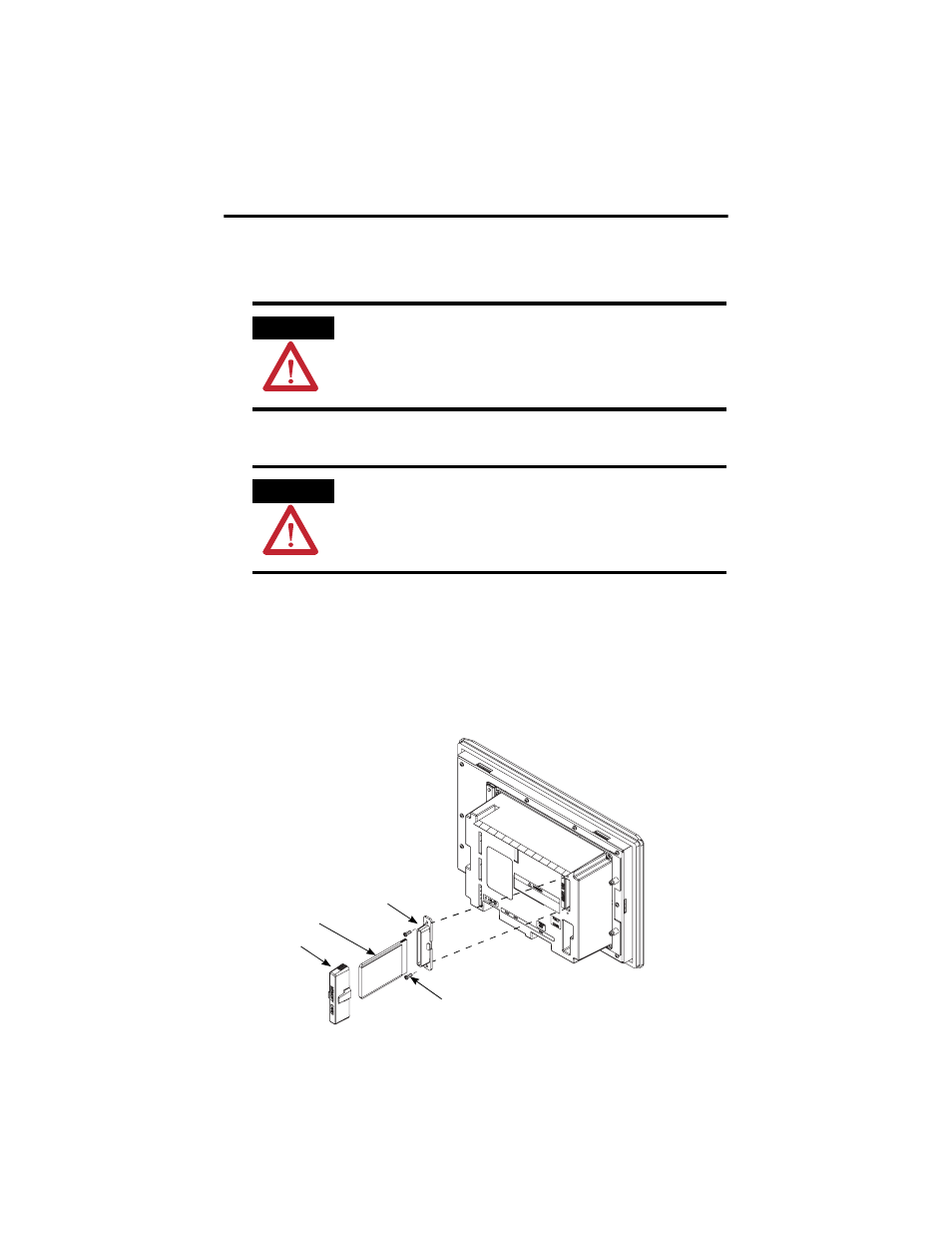

Retainer Base
Memory Card
Retainer
Base Mounting Screws Base Mounting Screws
