DC Link Fuse Upgrade Kit for RGU in Parallel with NRU
Mounting New Relay
The component designator for the new relay is CR5. The mounting location
varies by RGU size. In every case the relay mounts in the control bay. Refer
to the diagram associated with your RGU.
Important: Remember to install the suppressor across the relay’s coil. Also
remember to install the new relay’s panel marker (component
tag).
D-Frame -
Mount the new relay (CR5) in the control bay - just to the left of CR4 and
just below M2.

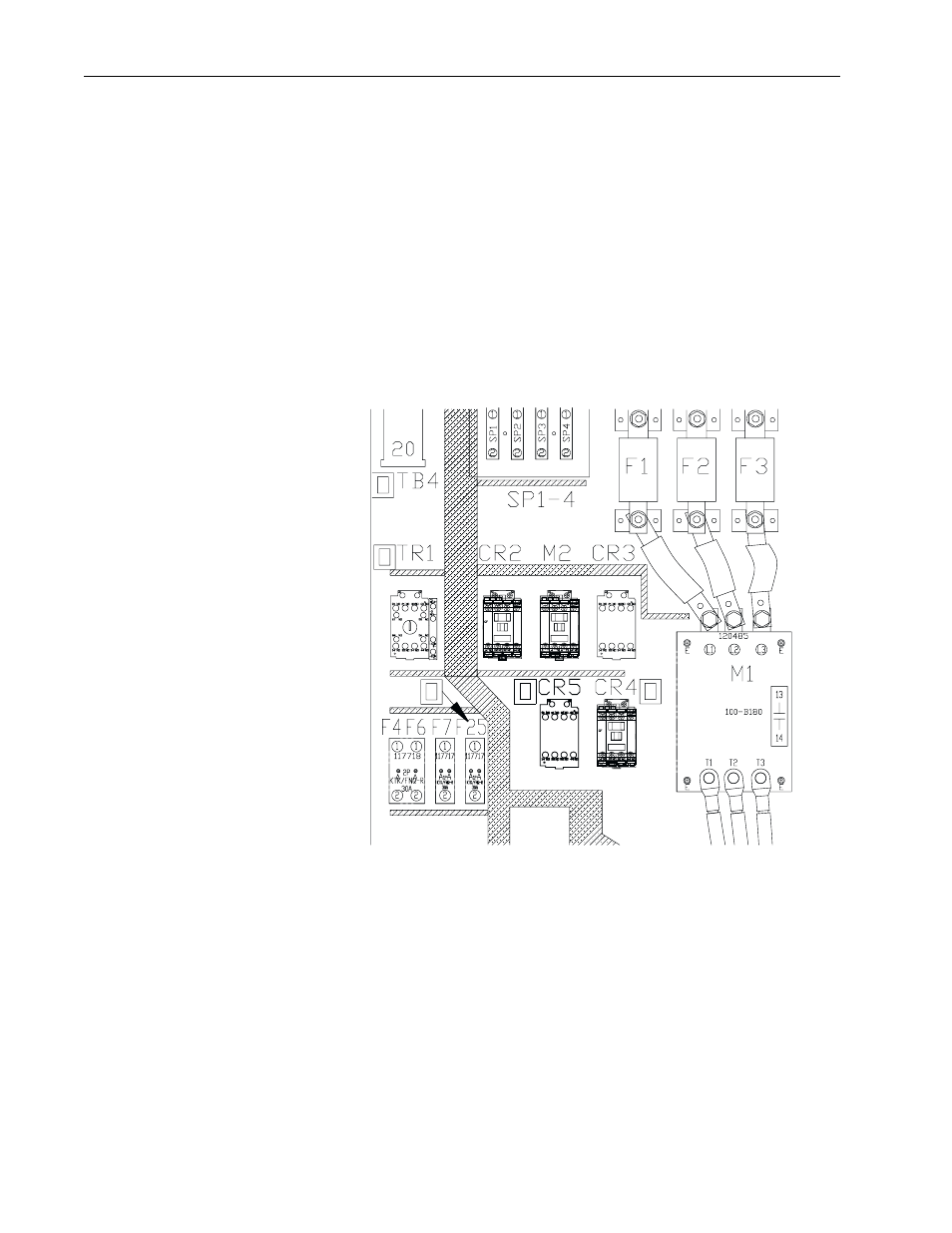

Figure 1 Mounting New Relay On D-Frame RGU
E-Frame -
Mount the new relay (CR5) in the control bay - just to the left of CR4 and
just below TR1.
