Packing Data
Intrucciones de instalación
Pernos para montaje de panel
(No. de Catálogo 2711-NP3)
El paquete de pernos de montaje (No. de Catálogo 2711-NP3) contiene 18
pernos.
Use estos pernos para montar lo siguiente
•
Terminal de teclado PanelView 1400 (requiere 18 pernos)
•
Terminal táctil PanelView 1400 (requiere 12 pernos)
•
Computadorea industrial 6180 (requieres 18 pernos)
Instalar pernos de montaje
1. Abrir una apertura en el panel usando el recorte de panel proporcionado en
este paquete. Taladre cuidadosamente hoyos de 5,6 mm (7/32 pulg.) para los
pernos según se indica.
2. Instalar los pernos de montaje (No. de Catálogo 2711-NP3) usando un
casquillo adaptador de 7/32 pulg. Mover el perno de izquierda a derecha para
apretar aproximadamente a 10 pulg–libras (1.1 N
Sm).

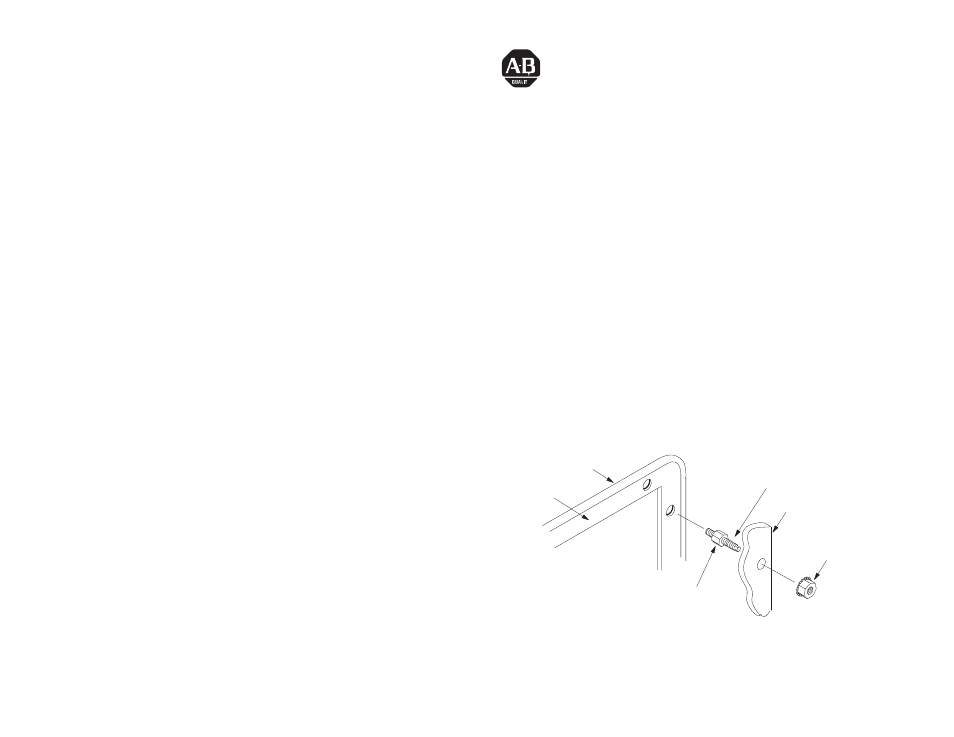

Perno de montaje
Bezel
Junta
Espaciador integral
Tuerca auto–selladora
Panel o caja
