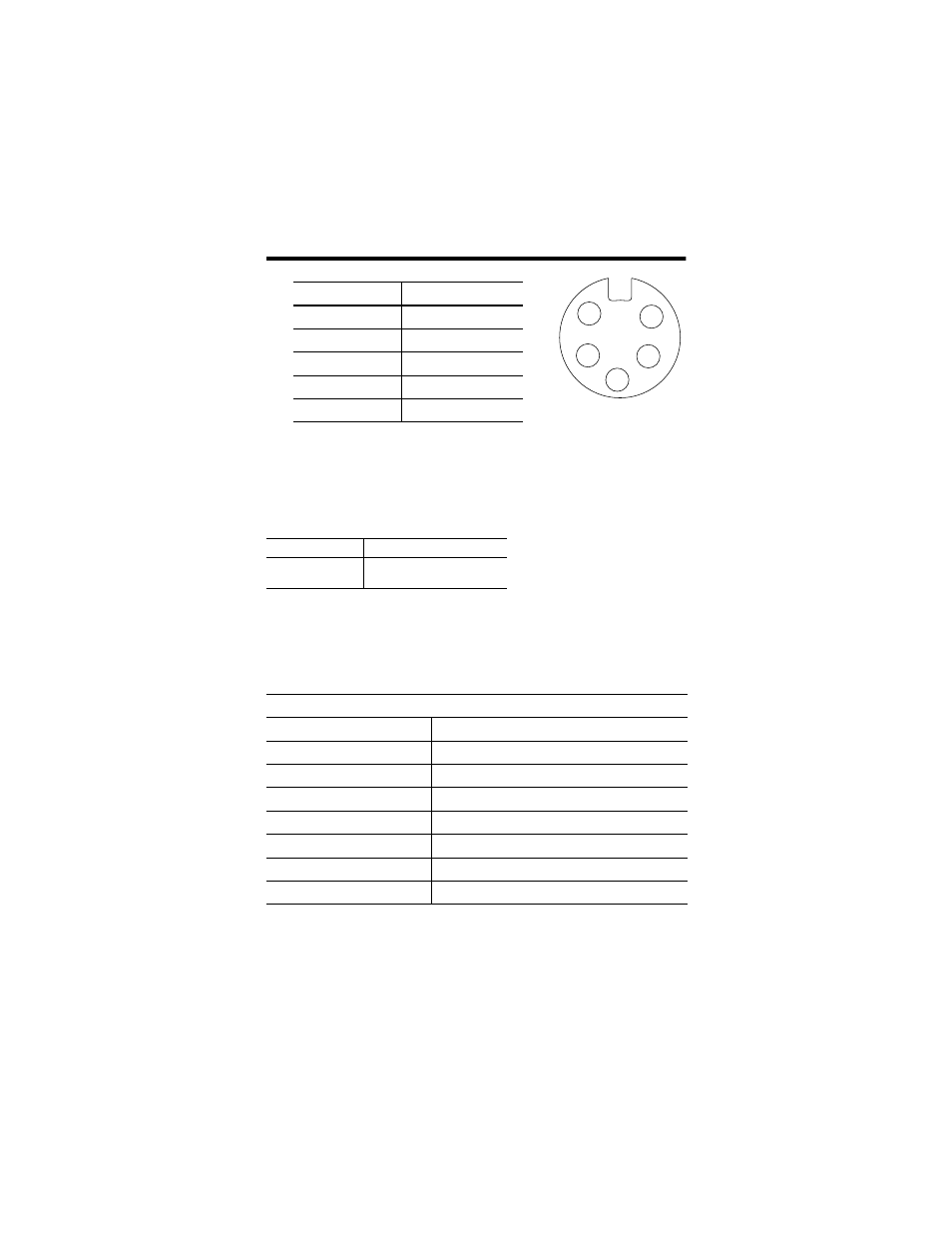

6 FlexArmor PROFIBUS Field Termination Plug
Publication 1798-IN005B-EN-P - April 2002
Troubleshooting with the Indicators
The following table describes status indicators on the Field
Termination Plug.
PROFIBUS Field Termination Plug Specifications
Following are specifications for the PROFIBUS Field Termination
Plug.
Indicator
Status
Green
Off
Power ON
Power OFF or reverse polarity
1798-PFTP1 Specifications
Voltage Rating
28.8V dc maximum
Sensor and Adapter Power Current 2.5A
Output Power Current
10A
Sensor/Output Voltage
10-28.8V dc
Sensor/Output Power Connector
0.875 in male
PROFIBUS Connector
M12 male and female
PROFIBUS Cable
Use appropriate cable
Dimensions (H x W x D)
1.5in x 4.5in x 1.0in
5
4
2
1
Pin
Function
1
Output Power -
2
Sensor Power -
3
Protective Gnd
4
Sensor Power +
5
Output Power +
3
Male Connector
43268
