Publication 2100-IN066A-EN-P—August 2006
CENTERLINE® 2100 Motor Control Centers Installing a Vertical Grounding Strap in Series "E" to "J" Sections 3
5. Replace all unit support pans, units, doors and the horizontal wireway
cover.

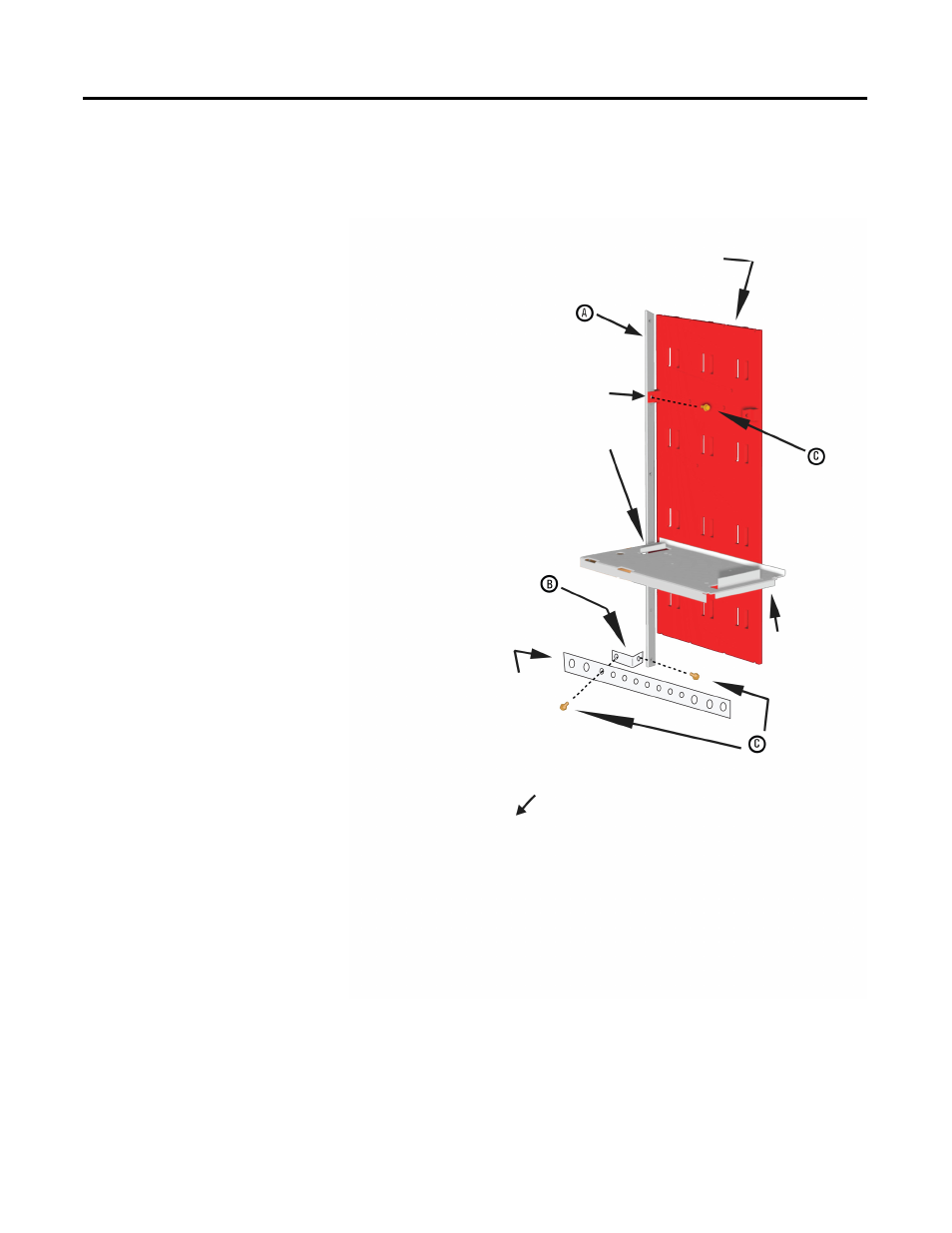

Figure 1 Installing a vertical grounding strap in a section with horizontal ground
bus.
Vertical Bus Cover
Knock-out Hole
Tab
Unit Support Pan
Front
Parts List:
A. Vertical grounding strap (1)
B. Splice Link (1)
C. 1/4-20 x 1/2” thread-forming screw (8)
Note: Additional parts are included in this
kit, but are not used when a horizontal
ground bus is not present. Refer to Figure 2
for additional parts listing.
Horizontal Ground Bus
