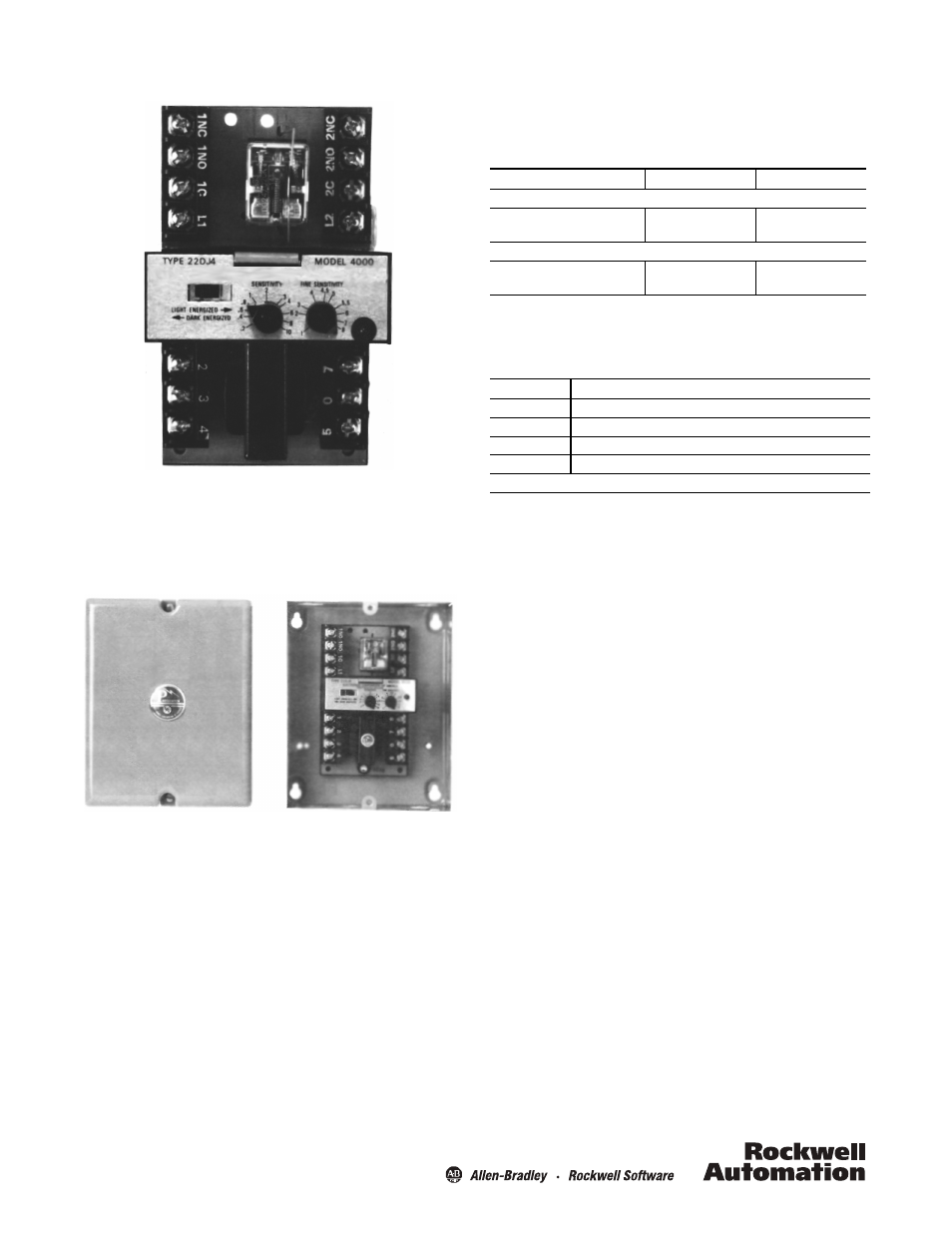

Easy insertion or removal of Series 4000 plug-in control module
Series 4000 universal control base in NEMA 1 enclosure
Series 4000 LED plug-in control function modules
For complete control function, description, application and wiring
diagram information, refer to the plug-in control function bulletins as
listed below.
Ordering instruction
Installation
The Series 4000 universal control base can be mounted in any position
on a wall, partition, panel, frame, bracket or similar support. While the
enclosure is being mounted, the control base (and plug-in module)
should be stored in a safe place to avoid moisture and mechanical damage
The enclosure mounting hole dimensions are shown below. Sheet metal,
wood, or machine screws, bolts, or similar fasteners may be used. When
the enclosure has been securely mounted, connect conduits or cables to
the enclosure using the knockout holes provided. Then remount the
control base (and plug-in control module).
Function Plug-in module Bulletin
On-Off
General purpose
High sensitivity Type 22DJ3
Type 22DJ4
PA-7421
Time delay
On, Off or
On + Off delay
Type 22DJ9 PA-7431
Model Description
60-1600B Control base 120V AC, 50/60 Hz with plug-in relay. Open type.
60-1610B Model 60-1600 in NEMA 1 general purpose enclosure.
60-1601B Control base 230V AC, 50/60 Hz with plug-in relay. Open type.
60-1611B Model 60-1601 in NEMA 1 general purpose enclosure.
To order NEMA 7 and 9 explosion-proof enclosure, specify open type base and 61-4635 enclosure.
